RZ 3019 (966042901) - Husqvarna 30" Zero-Turn Mower (2009-04) Steering Parts Diagram

30" Zero-Turn Mower

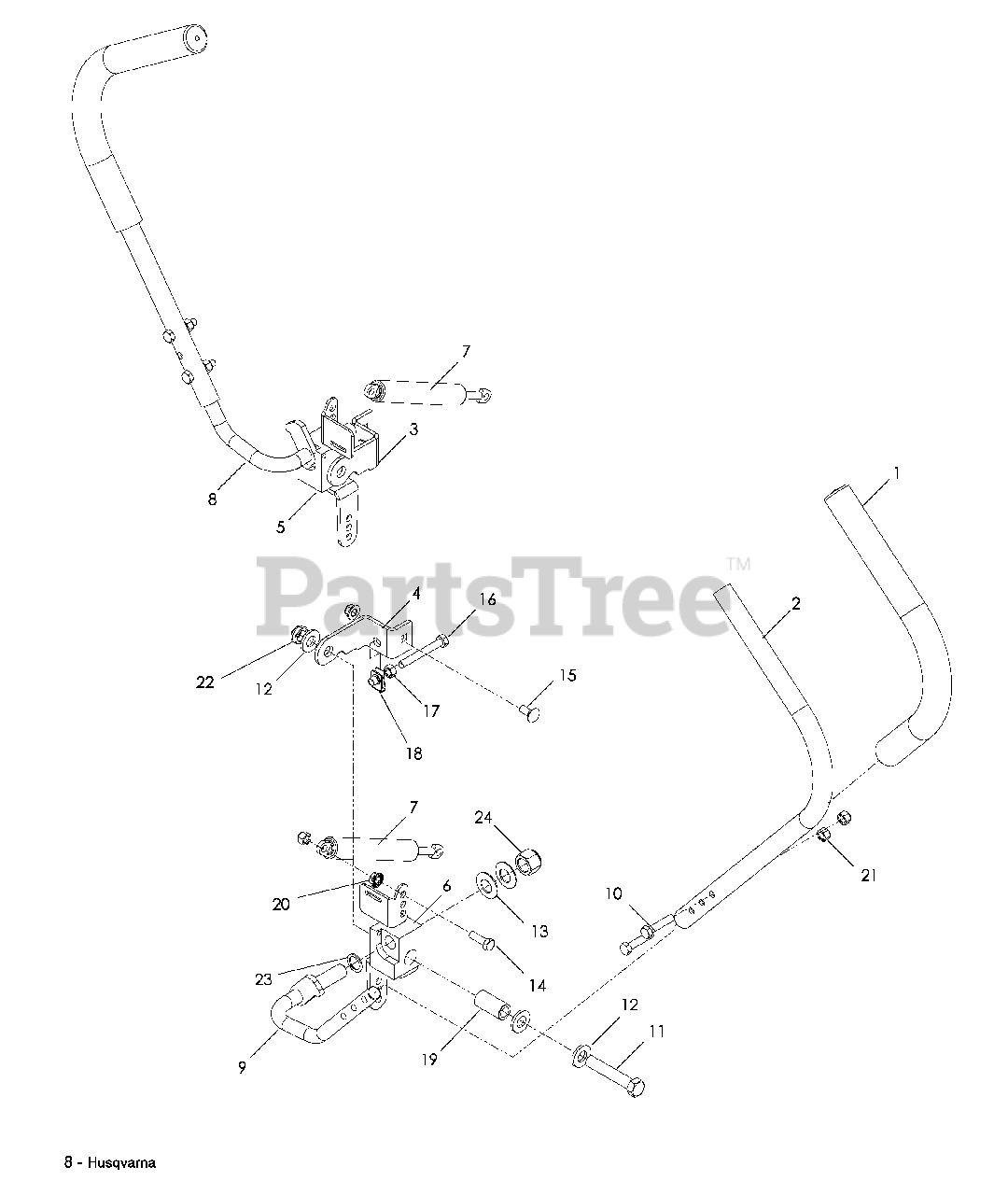

Steering Parts Diagram

  • Title

1

Husqvarna 539120899

GRIP

$9.99

$

In Stock, only 1 left!

0

2

Husqvarna 539120160

LEVER, UPPER

$109.99

$

In Stock, only 1 left!

0

3

Husqvarna 539117949

STOP, STEER CNTRL RH

$27.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539117950

STOP, STEER CNTRL LH

$27.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539120984

PIVOT, RH

$78.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539120983

PIVOT, LH

$

$

Not available

7

Husqvarna 539114453

DAMPENER

$74.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539120159

LOWER LEVER, RH

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539120162

LOWER LEVER, LH

$27.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539976935

HCS 5/16-18 x 1½

$1.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539101332

HCS ½-13 x 2¾

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 539990250

WASHER ½ SAE

$1.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539911121

WASHER 5/8 BELLEVILLE

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539108396

HCS 5/16-18 x 2½ TPBLT

$

$

Not available

17

Husqvarna 539990196

NUT, 5/16-18 HEX

$1.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539104763

U TYPE RETAINER

$6.49

$

In Stock, Qty 15

0

19

Husqvarna 539120956

BUSHING ½ ID x ¾ OD

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539108010

NUT ½-13 JAM NYLOC GR 2

$4.99

$

In Stock, Qty 5

0

23

Husqvarna 539115570

WASHER, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539110340

NUT 5/8-11 NYLOC

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539115638

ZERK

Note: NOT SHOWN

$4.99

$

In Stock, Qty 13

0
