RZ 3019 BF (966582101) - Husqvarna 30" Zero-Turn Mower (2010-03) 30" Deck Parts Diagram

30" Zero-Turn Mower

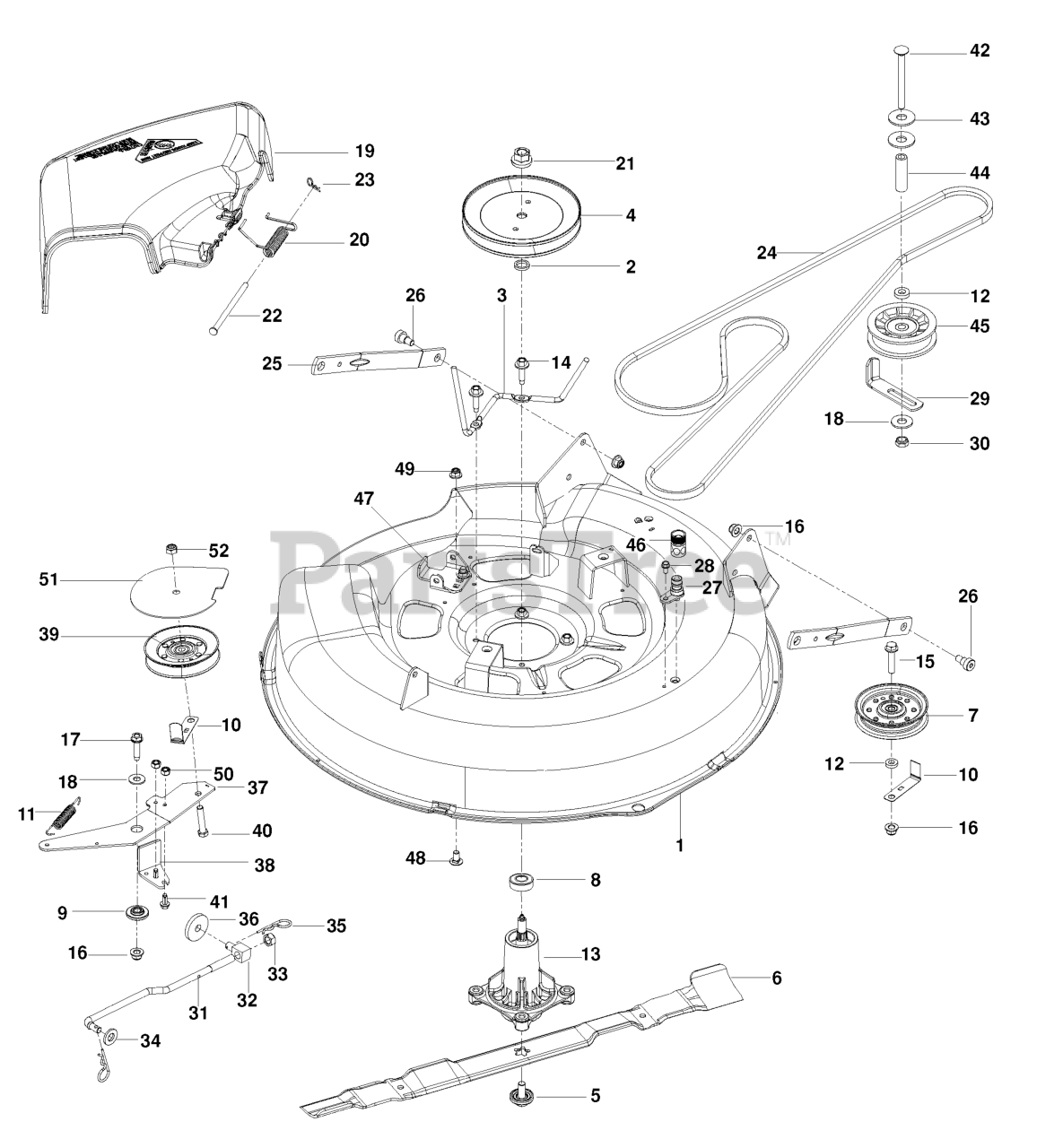

30" Deck Parts Diagram

  • Title

1

Husqvarna 527290801

DECK W/DECALS, RZ 30 ORG
(Superseded to 574453501)

$

$

Not available

2

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

3

Husqvarna 532400140

BELT KEEPER.MANDREL.38"COATED

$51.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532199791

PULLEY MANDREL 5.0"

$28.99

$

In Stock, Qty 19

0

5

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

6

Husqvarna 532419274

BLADE.MOWER.BAGGING.30"

$37.99

$

In Stock, Qty 20+

0

7

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.
(Superseded to 596481401)

$28.99

$

In Stock, Qty 5

0

8

Husqvarna 539112050

BEARING, BALL

$6.99

$

In Stock, Qty 20+

0

9

Husqvarna 532199092

SPACER.RETAINER

$7.99

$

In Stock, Qty 20+

0

10

Husqvarna 529311701

KEEPER, BELT, BLACK

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 20+

0

12

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539112057

MANDREL GREASABLE
(Superseded to 587820301)

$62.99

$

In Stock, Qty 20+

0

14

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

15

Husqvarna 539990701

BLT 3/8-16X1-3/4 WHIZLK ZN SP

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 13

0

17

Husqvarna 539110025

BOLT 3/8-16 X 1 1/2 ZINC CLEAR

$

$

Not available

18

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 532417344

SHIELD.DEFLECT.MWR.30S.BLACK

$45.99

$

In Stock, Qty 5

0

20

Husqvarna 539107609

TORSION SPRING

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

22

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD
(Superseded to 595935501)

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, Qty 11

0

24

Husqvarna 574173002

BELT, 100" EL

$68.99

$

In Stock, only 3 left!

0

25

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$17.99

$

In Stock, Qty 10

0

26

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532415598

PORT.WASHOUT

$7.99

$

In Stock, Qty 20+

0

28

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$3.49

$

In Stock, Qty 17

0

29

Husqvarna 525851801

GUIDE, BELT

$13.99

$

In Stock, only 1 left!

0

30

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 539976979)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 532195740

LINK LIFT SUSP. FRONT MOWER
(Superseded to 581506902)

$13.99

$

In Stock, Qty 20+

0

32

Husqvarna 539114789

SWIVEL

$13.99

$

In Stock, Qty 16

0

33

Husqvarna 573975201

NUT, 7/16-20 HEX NYLOC ZC

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 539990250

WASHER 1/2" FLAT
(Superseded to 595086801)

$3.49

$

In Stock, Qty 19

0

35

Husqvarna 539976989

HAIRPIN #4
(Superseded to 596273101)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

In Stock, Qty 10

0

37

Husqvarna 574172804

ARM, IDLER 30, BLK

$

$

Not available

38

Husqvarna 529311801

ARM, LH BRAKE
(Superseded to 532400130)

$22.99

$

In Stock, Qty 12

0

39

Husqvarna 532173902

REPL BY 532 1467-63
(Superseded to 532146763)

$

$

Not available

40

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 1 left!

0

41

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$2.49

$

In Stock, Qty 20+

0

42

Husqvarna 525848601

RHSNB 3/8-16 X 4 GR5 ZD

$6.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 525848801

SPACER .39 ID X 2.25

$

$

Not available

45

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

In Stock, Qty 20+

0

46

Husqvarna 532416405

COUPLING.QUICK CONNECT

$9.99

$

In Stock, Qty 20+

0

47

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 20+

0

48

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

49

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

50

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

51

Husqvarna 573970402

COVER, PULLEY, BLACK

$

$

Not available

52

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.49

$

In Stock, Qty 8

0
