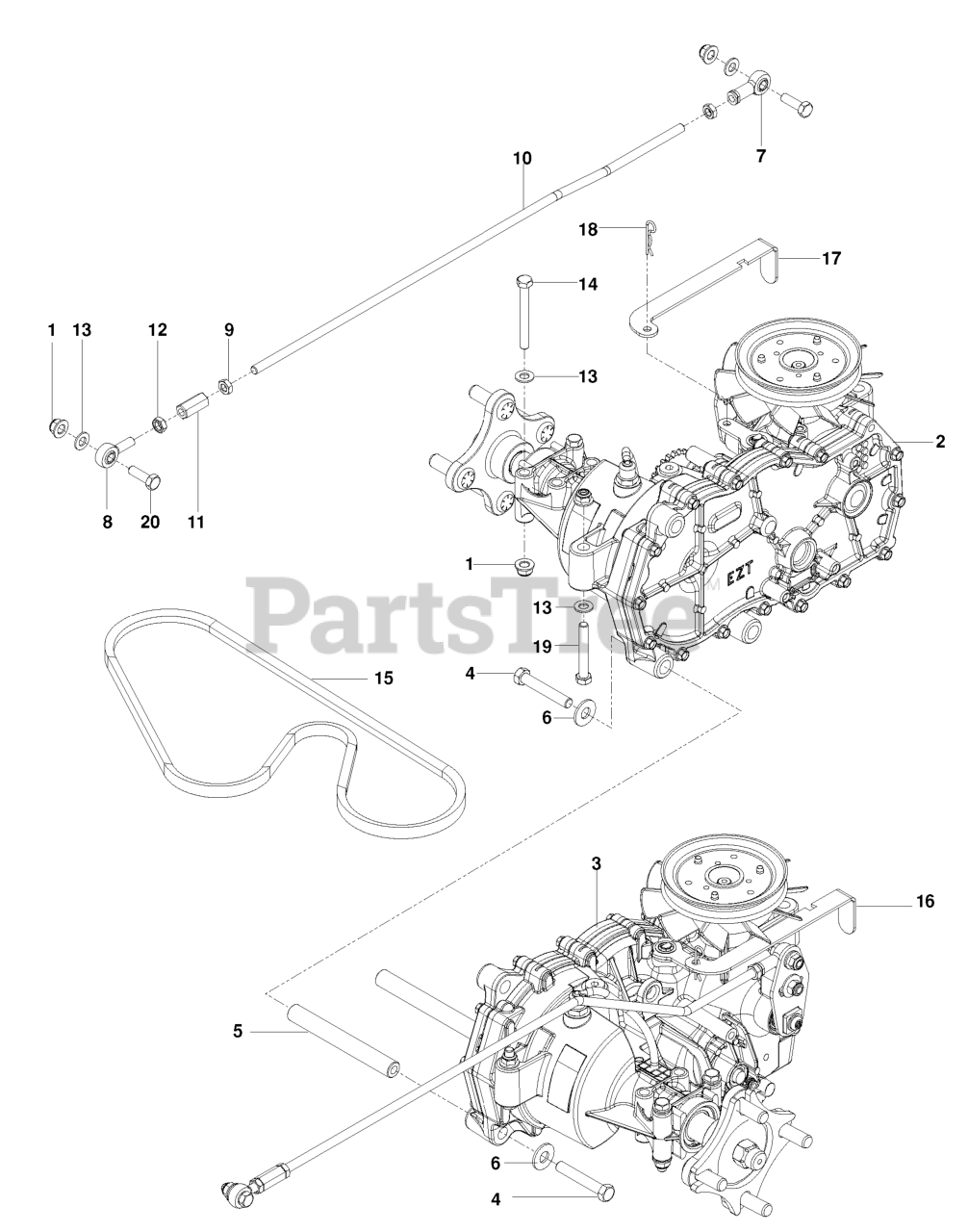

RZ 4216 CA (966503901) - Husqvarna 42" Zero-Turn Mower, CARB (2010-01) Hydralic Pump Motor Parts Diagram

42" Zero-Turn Mower, CARB

Hydralic Pump Motor Parts Diagram

  • Title

1

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

2

Husqvarna 539120152

HG_HYDRO RH
(Superseded to 539120941)

$

$

Not available

3

Husqvarna 539120153

HG_HYDRO LH

$1556.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$

$

Not available

5

Husqvarna 574356501

SPACER, HYDRO

$

$

Not available

6

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539115729

RH ROD END
(Superseded to 579764601)

$15.99

$

In Stock, Qty 10

0

8

Husqvarna 539116690

RP.ROD.END.LH
(Superseded to 588692502)

$14.99

$

In Stock, only 4 left!

0

9

Husqvarna 539115502

NUT 5/16-24 UNF HEX JAM

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539120169

CONTROL ROD

$

$

Not available

11

Husqvarna 539116689

ROD END COUPLER
(Superseded to 596718601)

$3.99

$

In Stock, Qty 14

0

12

Husqvarna 539991073

NUT 5/16F LEFTHAND
(Superseded to 596584101)

$3.99

$

In Stock, only 2 left!

0

13

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 10

0

15

Husqvarna 539111445

IZT BELT

$

$

Not available

16

Husqvarna 539120156

RELEASE LEVER LH

$

$

Not available

17

Husqvarna 539120157

RELEASE LEVER RH

$23.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, Qty 9

0

19

Husqvarna 539976938

CAPSCREW

$4.99

$

In Stock, Qty 10

0

20

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 16

0
