RZ 4216 CA (966503901) - Husqvarna 42" Zero-Turn Mower, CARB (2010-01) MowerDeckCut Parts Diagram

42" Zero-Turn Mower, CARB

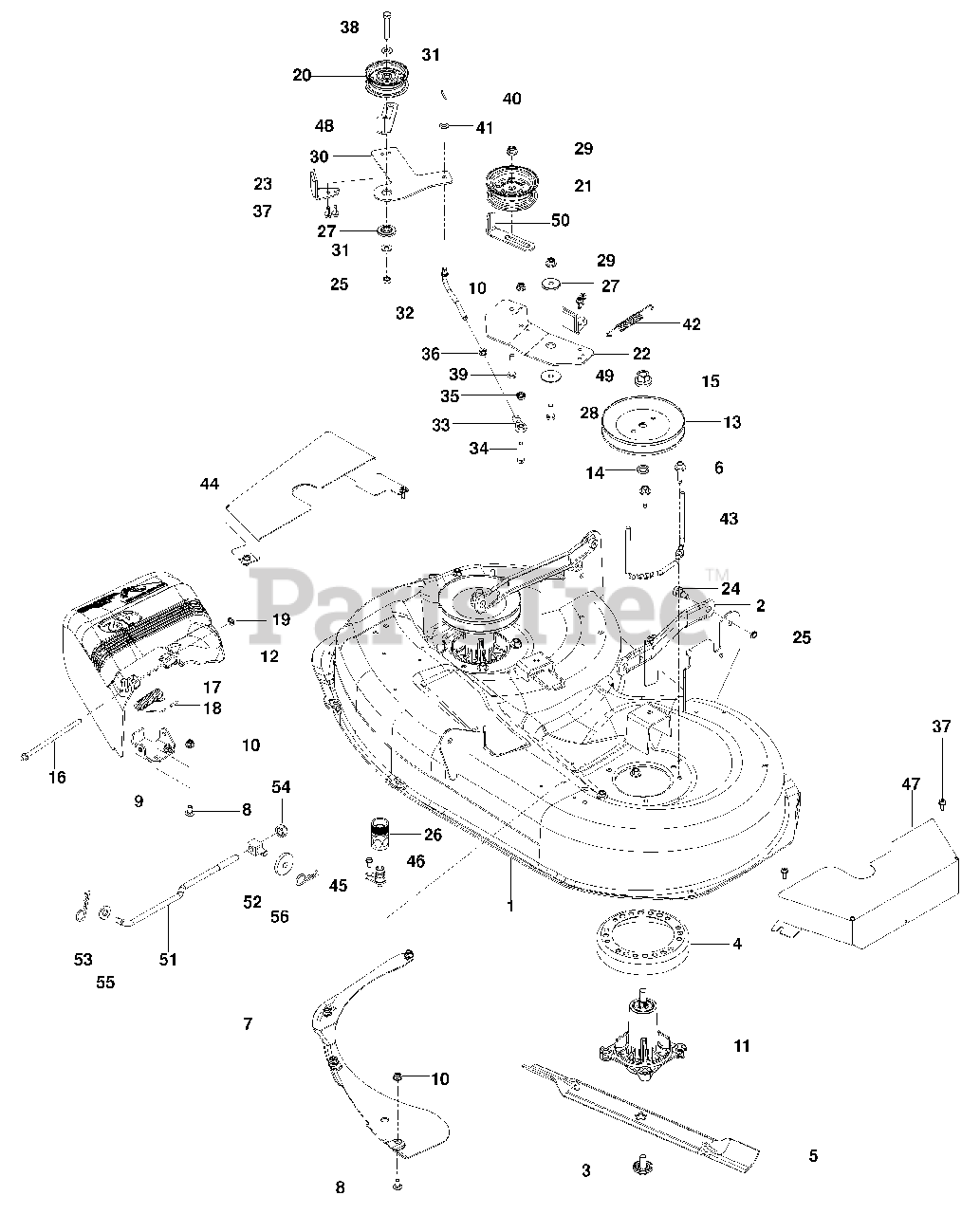

MowerDeckCut Parts Diagram

  • Title

1

Husqvarna 575699801

DECKw/SAFETYDECALS

$

$

Not available

2

Husqvarna 532195185

SUSPENSIONARM,REAR
(Superseded to 531169201)

$17.99

$

In Stock, only 2 left!

0

3

Husqvarna 532193003

BOLT,WASHER

$9.49

$

In Stock, Qty 20+

0

4

Husqvarna 539107518

STRIPPER,ROUND
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

5

Husqvarna 532134149

BLADE42"
(Superseded to 594892701)

$

$

Not available

6

Husqvarna 539107630

SCREW,WASHERHEAD
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

7

Husqvarna 539110463

BAFFLE,DECK
(Superseded to 531167001)

$17.99

$

In Stock, Qty 20+

0

8

Husqvarna 539990799

RHSNB5/16-18x5/8
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 532192557

BRACKET,DEFLECTOR

$9.49

$

In Stock, Qty 5

0

10

Husqvarna 539112899

NUT5/16-18HEXFLGNYL
(Superseded to 594944401)

$6.99

$

In Stock, Qty 9

0

11

Husqvarna 532192870

MANDREL
(Superseded to 587819701)

$62.99

$

In Stock, Qty 20+

0

12

Husqvarna 532193108

SHIELD,DEFLECTOR
(Superseded to 532403004)

$37.99

$

In Stock, Qty 7

0

13

Husqvarna 532195945

PULLEY,MANDREL

$14.99

$

In Stock, Qty 20+

0

14

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 539107590

NUT9/16TOPCNTRLK
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

16

Husqvarna 539110462

ROD,HINGE
(Superseded to 532131491)

$6.99

$

In Stock, Qty 20+

0

17

Husqvarna 539110328

SPRING,TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 15

0

18

Husqvarna 539107627

CAP,SLEEVE
(Superseded to 532105304)

$3.49

$

In Stock, Qty 19

0

19

Husqvarna 539107626

PUSHNUT
(Superseded to 532110452)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 539919078

PULLEY,IDLER

$31.99

$

In Stock, only 2 left!

0

21

Husqvarna 532177968

PULLEY,IDLER

$28.99

$

In Stock, Qty 20+

0

22

Husqvarna 574694502

ARM,IDLER
(Superseded to 574694505)

$31.99

$

In Stock, only 2 left!

0

23

Husqvarna 529311801

ARM,LHBRAKE
(Superseded to 532400130)

$22.99

$

In Stock, only 2 left!

0

24

Husqvarna 539113621

BOLT3/8-16x3/8SKTHD
(Superseded to 596241101)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 539200282

NUT3/8-16HEXJAMNYLOC
(Superseded to 596230801)

$3.49

$

In Stock, only 1 left!

0

26

Husqvarna 532416405

QUICKCONNECT

$9.99

$

In Stock, Qty 11

0

27

Husqvarna 532199092

SPACERRETAINER

$7.99

$

In Stock, Qty 20+

0

28

Husqvarna 539990563

HCS3/8-16x1
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

29

Husqvarna 521996501

NUT3/8-16HEXFLGNYLOC

$

$

Not available

30

Husqvarna 574693302

ARM,BRAKE

$

$

Not available

31

Husqvarna 539990122

WASHER3/8SAEFLT
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 574694601

LINKAGE,DECKBRAKE

$

$

Not available

33

Husqvarna 539102590

BALLEND,RH

$26.99

$

In Stock, only 2 left!

0

34

Husqvarna 539976935

HCS5/16-18x1 1/2

$1.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990585

NUT5/16-18HEXWHIZLK

$

$

Not available

36

Husqvarna 539990196

NUT,5/16-18HEX

$1.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539107631

SCREW 1/4-20x5/8
(Superseded to 532137729)

$2.49

$

In Stock, Qty 20+

0

38

Husqvarna 539990588

HCS3/8-16x2

$4.99

$

In Stock, only 2 left!

0

39

Husqvarna 539990730

HCS3/8-16x1 3/4
(Superseded to 596583901)

$3.49

$

In Stock, Qty 11

0

40

Husqvarna 539990365

HAIRPIN
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

41

Husqvarna 539990188

WASHER5/16SAEFLAT
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 532401872

SPRING,RETURN

$5.99

$

In Stock, Qty 20+

0

43

Husqvarna 532400140

KEEPER,PULLEY

$51.99

$

Usually ships in 3-10 days

0

44

Husqvarna 575754602

BELTSHIELD,RT

$125.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532415598

WASHOUTPORT

$7.99

$

In Stock, Qty 7

0

46

Husqvarna 539108461

BOLT 1/4-20x 1/2

$3.49

$

In Stock, only 2 left!

0

47

Husqvarna 575754502

BELTSHIELD,LT

$79.99

$

Usually ships in 3-10 days

0

48

Husqvarna 525851801

GUIDE,BELT

$13.99

$

In Stock, only 2 left!

0

49

Husqvarna 539102998

WASHER,FRICTION

$4.99

$

In Stock, only 3 left!

0

50

Husqvarna 525851801

GUIDE,BELT

$13.99

$

In Stock, only 2 left!

0

51

Husqvarna 532195740

LINK,SUSPENSION
(Superseded to 581506902)

$13.99

$

In Stock, Qty 20+

0

52

Husqvarna 539114789

SWIVEL

$13.99

$

In Stock, only 2 left!

0

53

Husqvarna 539976989

HAIRPIN#4

$

$

Not available

54

Husqvarna 573975201

NUT7/16-20HEXNYLOC

$3.49

$

In Stock, Qty 6

0

55

Husqvarna 539990250

WASHER,SAE

$1.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539106504

HEAVYWASHER

$

$

Not available

Husqvarna 574173003

BELT

Note: NOTSHOWN

$56.99

$

In Stock, only 2 left!

0
