RZ 4219 (965881101) - Husqvarna 42" Zero-Turn Mower (2009-01) 46" Deck Parts Diagram

42" Zero-Turn Mower

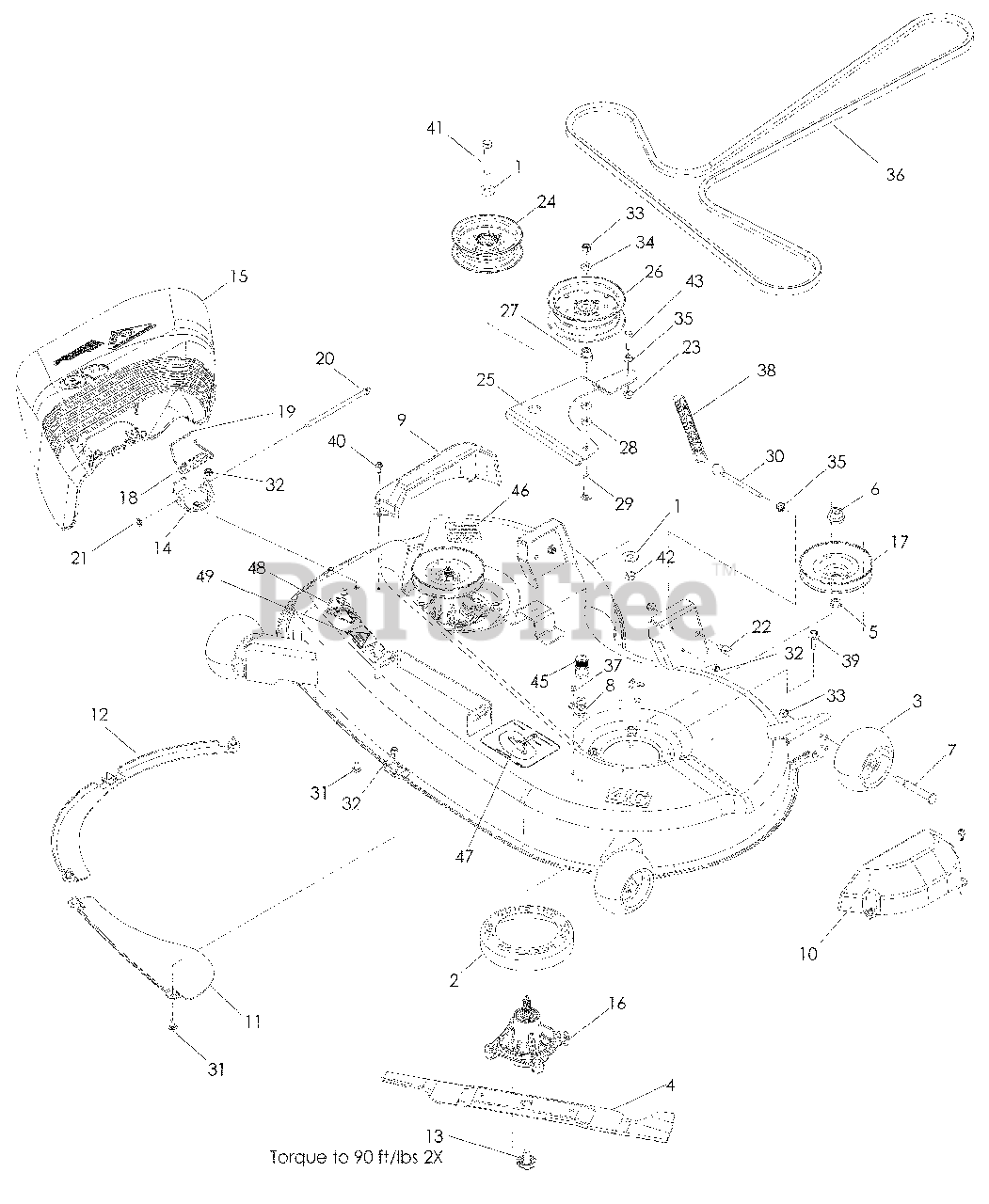

46" Deck Parts Diagram

  • Title

1

Husqvarna 539104864

WASHER 7/16 FLAT
(Superseded to 596437601)

$3.99

$

In Stock, Qty 11

0

2

Husqvarna 539107518

STRIPPER, ROUND
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

4

Husqvarna 777405380

BLADE, 46" HI-LIFT
(Superseded to 532405380)

$20.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539107520

WASHER/SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 539107590

NUT 9/16 TOP CNTRLK
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 539107608

BOLT 3/8-16 x 35/8 SHOULDER
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 532415598

PORT, WASHOUT

$8.99

$

In Stock, Qty 20+

0

9

Husqvarna 532405506

SHIELD, BELT RH

$47.99

$

In Stock, Qty 11

0

10

Husqvarna 532405507

SHIELD, BELT LH

$47.99

$

In Stock, Qty 8

0

11

Husqvarna 532403149

BAFFLE, FRONT

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532403150

BAFFLE, FRONT RH

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532193003

BOLT WASHER ASSM

$8.99

$

In Stock, Qty 20+

0

14

Husqvarna 532192557

BRACKET, DEFLECTOR

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 532405357

SHIELD, DEFLECTOR

$74.99

$

In Stock, Qty 9

0

16

Husqvarna 539107515

HOUSING, CUTTER
(Superseded to 587125201)

$40.99

$

In Stock, Qty 20+

0

17

Husqvarna 539113962

PULLEY, DECK
(Superseded to 588586601)

$22.99

$

In Stock, Qty 20+

0

18

Husqvarna 539107609

SPRING, TORSION

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539107627

CAP, SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539107626

PUSHNUT
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532195161

STUD, w/ANTI-ROTATE

$

$

Not available

23

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$4.99

$

In Stock, Qty 14

0

24

Husqvarna 532196104

PULLEY, IDLER

$34.99

$

In Stock, Qty 20+

0

25

Husqvarna 522706202

ARM, IDLER
(Superseded to 574689002)

$93.99

$

In Stock, Qty 8

0

26

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

27

Husqvarna 539112076

BUSHING, IDLER

$

$

Not available

28

Husqvarna 539109562

WASHER 3/8 x ¾

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539100145

RHSNB 3/8-16 x 2
(Superseded to 595901401)

$3.99

$

In Stock, Qty 14

0

30

Husqvarna 539115574

EYE BOLT 5/16 x 3½

$

$

Not available

31

Husqvarna 539990799

RHSNB 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539117245

BELT, DECK

$66.99

$

In Stock, Qty 20+

0

37

Husqvarna 539108461

BOLT ¼-20 x ½ HWST

$4.99

$

In Stock, Qty 14

0

38

Husqvarna 539120920

SPRING, DECK BELT

$

$

Not available

39

Husqvarna 539107630

SCREW 5/16-18 x WSHER HD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 539107631

SCREW ¼-20 x 5/8 THDROLL
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 539104870

HCS 7/16-14 x 2½
(Superseded to 874780740)

$3.99

$

In Stock, Qty 13

0

42

Husqvarna 539119124

NUT 7/16-14 HEX

$

$

Not available

43

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, Qty 10

0

44

Husqvarna 522744301

DECK w/DECALS
(Superseded to 598727201)

$363.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532416405

COUPLING, QUICK CONN

$8.99

$

In Stock, Qty 20+

0

46

Husqvarna 539113224

DECAL, WARNING

$9.99

$

Usually ships in 3-10 days

0

47

Husqvarna 510240201

DECAL, BELT ROUTING

$3.99

$

In Stock, Qty 10

0

48

Husqvarna 539913010

DECAL, WARNING

$4.99

$

In Stock, only 1 left!

0

49

Husqvarna 539105746

DECAL, SEVERING

$3.99

$

In Stock, only 3 left!

0
