RZ 4219 (965881101) - Husqvarna 42" Zero-Turn Mower (2009-01) Brake / Lift Parts Diagram

42" Zero-Turn Mower

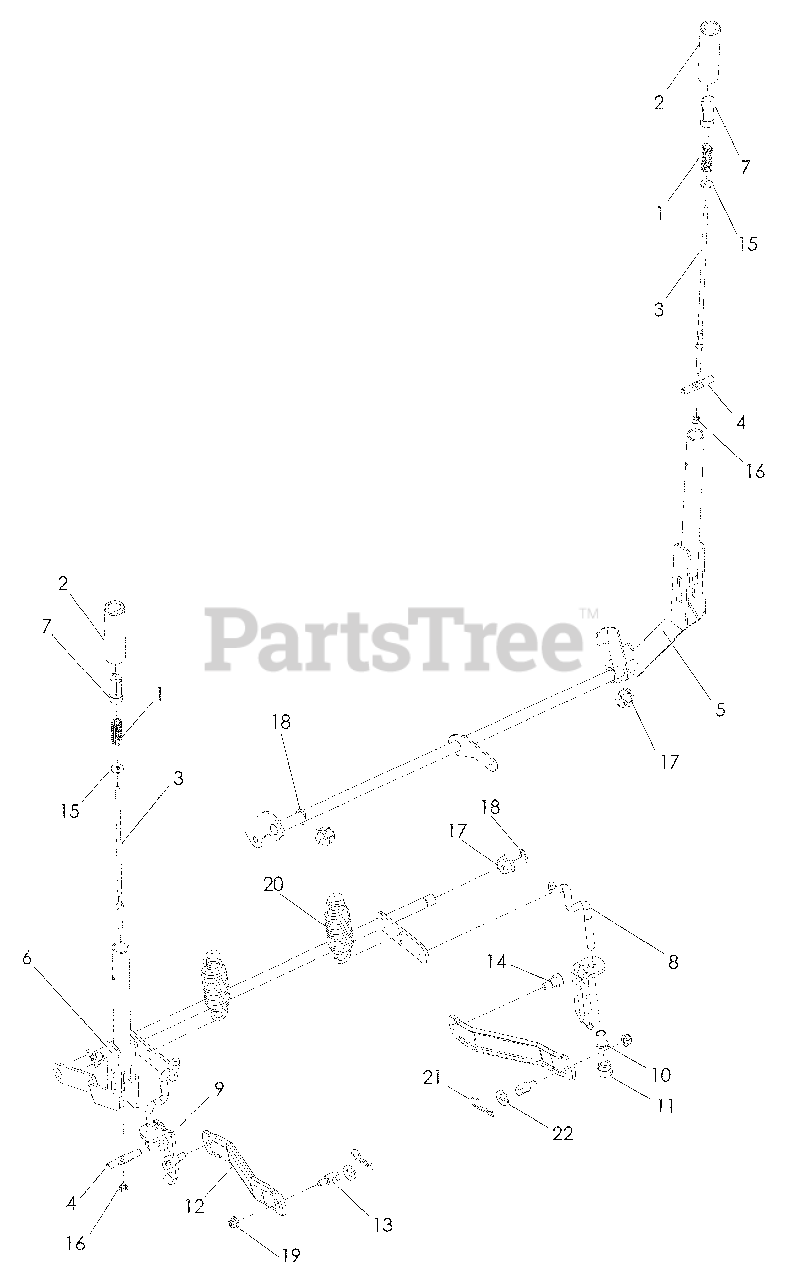

Brake / Lift Parts Diagram

  • Title

1

Husqvarna 510030701

SPRING, COMPRESSION

$

$

Not available

2

Husqvarna 510207201

GRIP, HANDLE

$5.99

$

In Stock, Qty 11

0

3

Husqvarna 510422901

ROD, HANDLE RELEASE

$

$

Not available

4

Husqvarna 516008801

ROD, LATCH RELEASE
(Superseded to 583629301)

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 522710804

SHAFT, BRAKE
(Superseded to 580435801)

$120.99

$

Usually ships in 3-10 days

0

6

Husqvarna 510207802

ARM, LIFTING
(Superseded to 586760203)

$44.99

$

Usually ships in 3-10 days

0

7

Husqvarna 510207301

BUTTON, PUSH

$4.99

$

In Stock, Qty 13

0

8

Husqvarna 510185301

LINK, REAR SUSPENSION
(Superseded to 587623001)

$12.99

$

In Stock, Qty 20+

0

9

Husqvarna 532195174

BRACKET, LIFT
(Superseded to 532195181)

$

$

Not available

10

Husqvarna 532195171

BUSHING, ALIGNMENT
(Superseded to 532195181)

$

$

Not available

11

Husqvarna 532175994

NUT, LIFT LINK
(Superseded to 589464902)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532195185

ARM, SUSPENSION RR

$18.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532195161

STUD, w/ANTI- ROTATE

$

$

Not available

14

Husqvarna 539113621

SB 3/8-16 x 3/8 SKT HD
(Superseded to 596241101)

$3.99

$

In Stock, Qty 6

0

15

Husqvarna 539990598

WASHER ¼ FLAT

$

$

Not available

16

Husqvarna 539976978

NUT ¼-20 HEX NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 510184901

NUT

$6.49

$

In Stock, Qty 12

0

18

Husqvarna 539105069

E-RING

$3.99

$

In Stock, Qty 7

0

19

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$4.99

$

In Stock, Qty 14

0

20

Husqvarna 539118762

SPRING 965881301, 965881401

$

$

Not available

Husqvarna 539118762

SPRING 965881101, 965881201, 965921501

$

$

Not available

21

Husqvarna 539111690

SPACER

$12.99

$

In Stock, only 2 left!

0

22

Husqvarna 539976982

WASHER 5/8 FLAT SAE

$4.99

$

In Stock, only 2 left!

0

23

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0
