RZ 4219 F (966495701) - Husqvarna 42" Zero-Turn Mower (2010-01) ENGINE PLATE Parts Diagram

42" Zero-Turn Mower

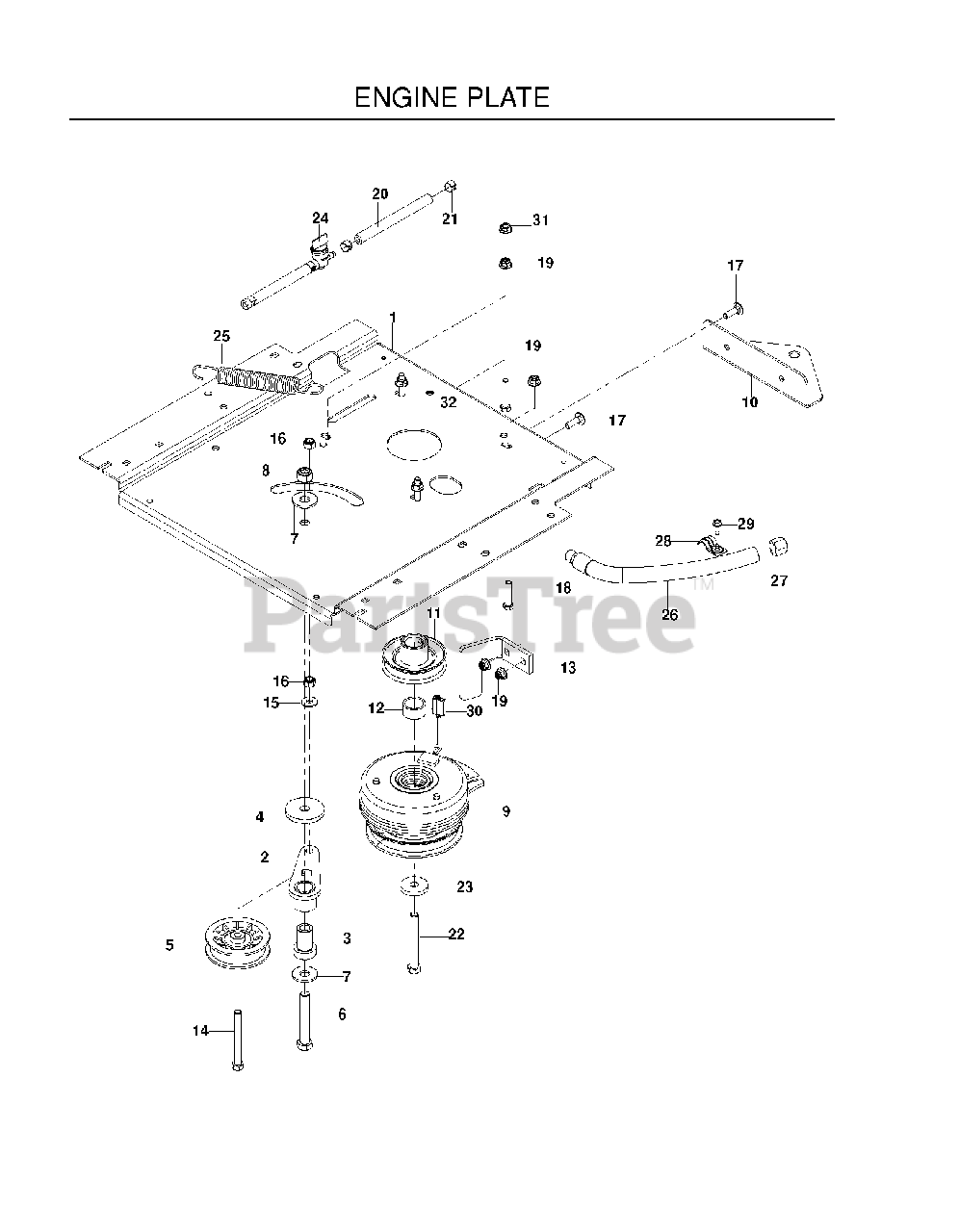

ENGINE PLATE Parts Diagram

  • Title

1

Husqvarna 510172002

PLATE ENGINE, BLACK
(Superseded to 575327002)

$67.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112092

IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, Qty 7

0

3

Husqvarna 539101231

IDLER SPINDLE

$10.99

$

In Stock, Qty 20+

0

4

Husqvarna 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$13.99

$

In Stock, Qty 20+

0

6

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 15

0

7

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

8

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 505287301

CLUTCH, 105 FT-LBS

$278.99

$

In Stock, only 2 left!

0

10

Husqvarna 516011802

HITCH, BLACK

$6.99

$

In Stock, Qty 19

0

11

Husqvarna 539114530

RP PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, Qty 9

0

12

Husqvarna 539112252

T & B SPACER

$

$

Not available

13

Husqvarna 510246002

STOP, CLUTCH, BLACK

$27.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539109389

HCS 3/8-16X3 1/2 GR5

$4.99

$

In Stock, Qty 10

0

15

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

21

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

22

Husqvarna 539976944

HCS 7/16-20X3-1/2 GR 5 ZN
(Superseded to 581332804)

$4.99

$

In Stock, Qty 5

0

23

Husqvarna 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, Qty 20+

0

24

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532196105

SPRING, DECK DRIVE

$7.49

$

In Stock, Qty 20+

0

26

Husqvarna 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 2 left!

0

29

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

30

Husqvarna 539105637

CLUTCH HARNESS

$24.99

$

In Stock, Qty 7

0

31

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0
