RZ 4219 F (966495701) - Husqvarna 42" Zero-Turn Mower (2010-01) FRAME Parts Diagram

42" Zero-Turn Mower

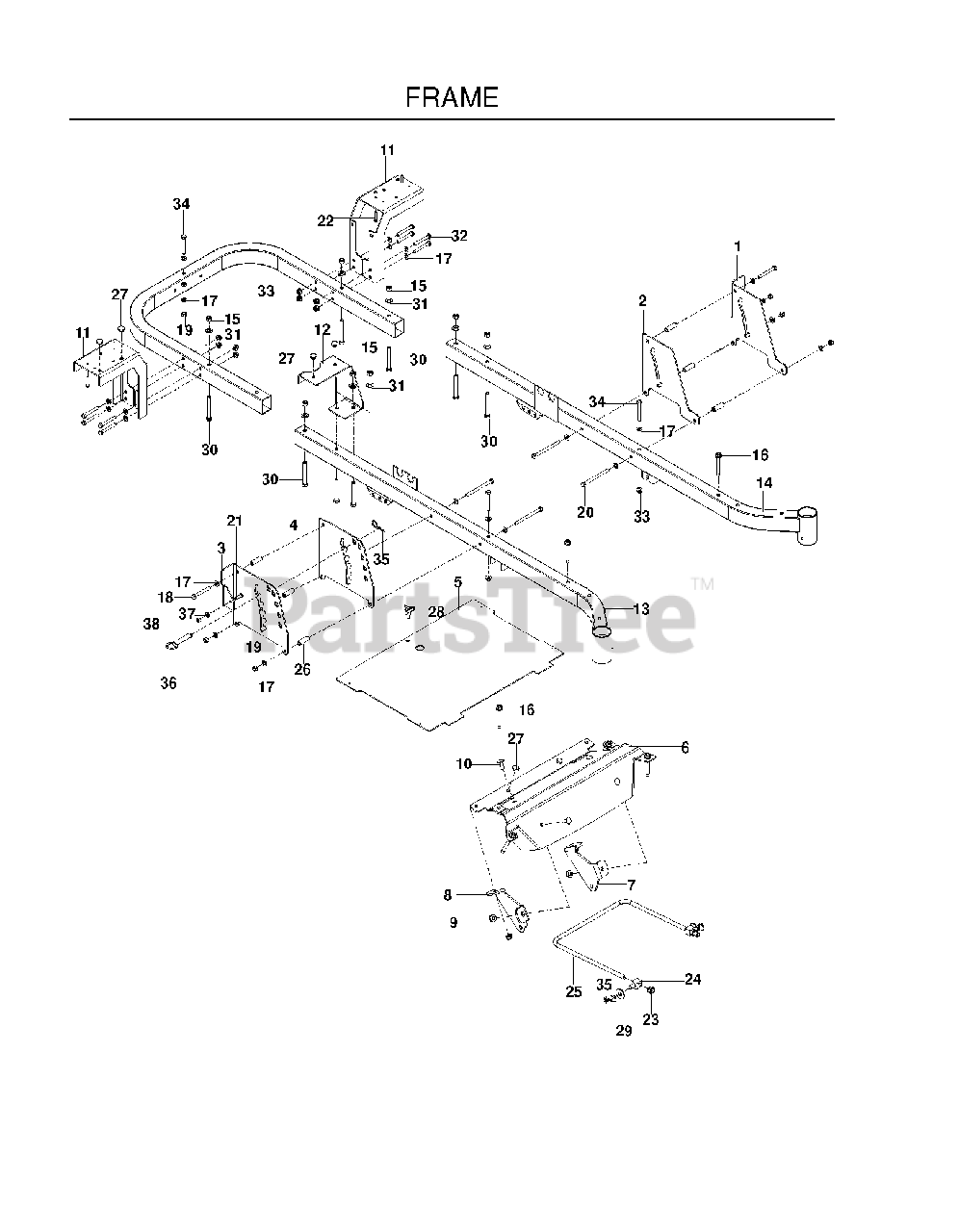

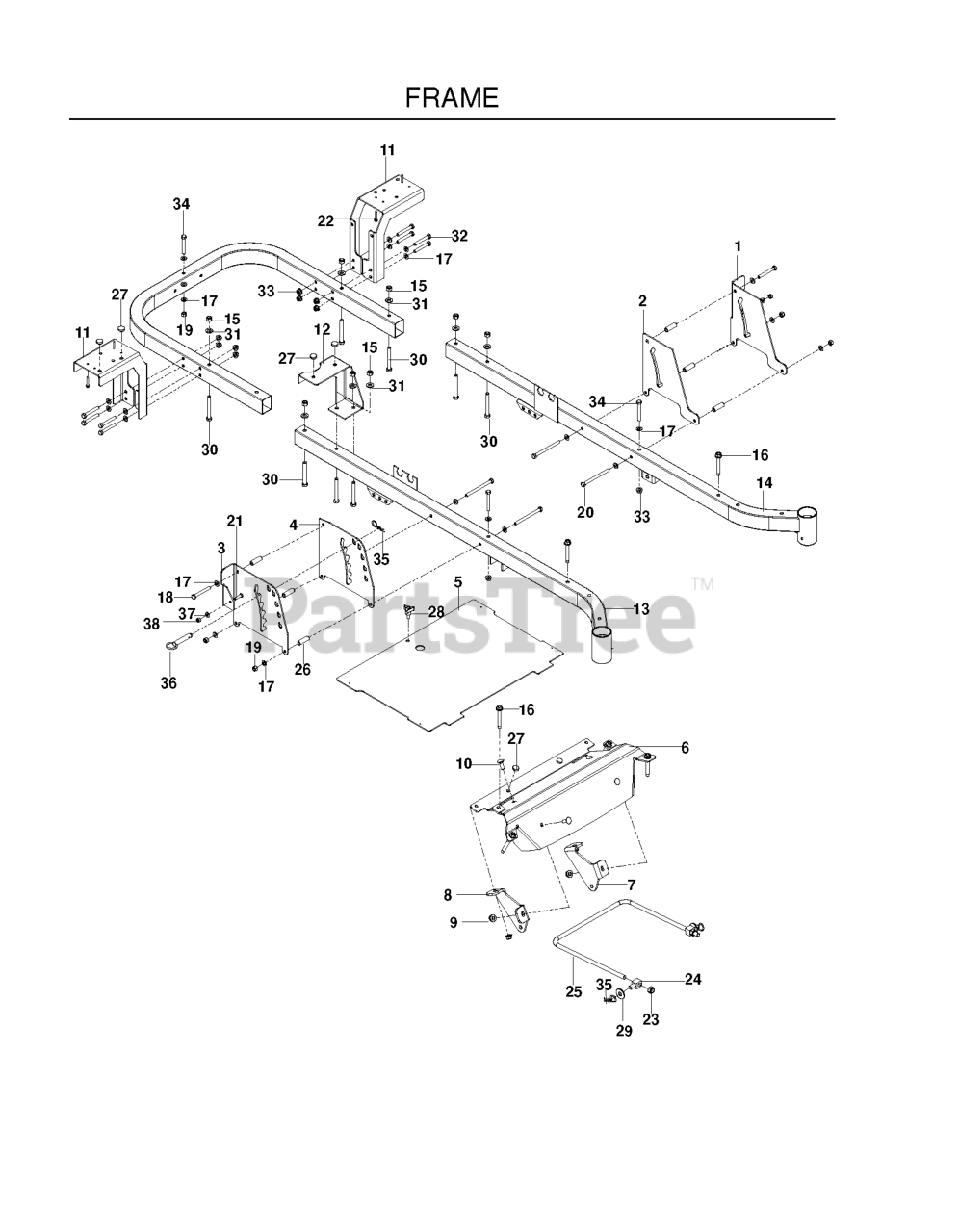

FRAME Parts Diagram

  • Title

1

Husqvarna 510261802

PLATE, OUTER BRAKE, BLACK

$60.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510206703

PLATE, BRAKE LATCH, BLACK

$48.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510245602

PLATE, HEIGHT ADJ, BLACK

$54.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510240502

PLATE, DECK HEIGHT, BLACK

$21.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522842902

PLATE, FOOT W/DECALS RZ

$157.99

$

In Stock, only 1 left!

0

6

Husqvarna 522719504

FOOT.REST.MED.ORANGE

$

$

Not available

7

Husqvarna 522443302

MOUNT, STRUT, RT, BLK

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 522443304

MOUNT, STRUT, LT, BLK

$34.99

$

Usually ships in 3-10 days

0

9

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

10

Husqvarna 539990645

RHSNB 3/8C X 1

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510225902

SUPPORT, FENDER, BLACK

$78.99

$

Usually ships in 3-10 days

0

12

Husqvarna 510226002

SUPPORT, TANK, BLACK

$47.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510177503

FRAME, RT, ORANGE
(Superseded to 589283402)

$68.99

$

In Stock, only 1 left!

0

14

Husqvarna 510177403

FRAME, LT, ORANGE
(Superseded to 589283302)

$68.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539111976

ENGINE BOLT, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

19

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539977761

HCS 1/4C X 1

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

24

Husqvarna 539114789

SWIVEL

$17.99

$

In Stock, Qty 6

0

25

Husqvarna 521938101

LINK, FRONT SUSP.

$

$

Not available

26

Husqvarna 515988101

SPACER, .334 ID X .5 OD X 1.5
(Superseded to 580486101)

$

$

Not available

27

Husqvarna 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 17

0

28

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

29

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

30

Husqvarna 539101341

HCS 3/8C X 3

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539976938

CAPSCREW

$3.99

$

In Stock, Qty 5

0

33

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 16

0

35

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539102526

HITCH PIN

$21.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0
