RZ 4219 F (966495701) - Husqvarna 42" Zero-Turn Mower (2010-01) HYDRAULIC PUMP MOTOR Parts Diagram

42" Zero-Turn Mower

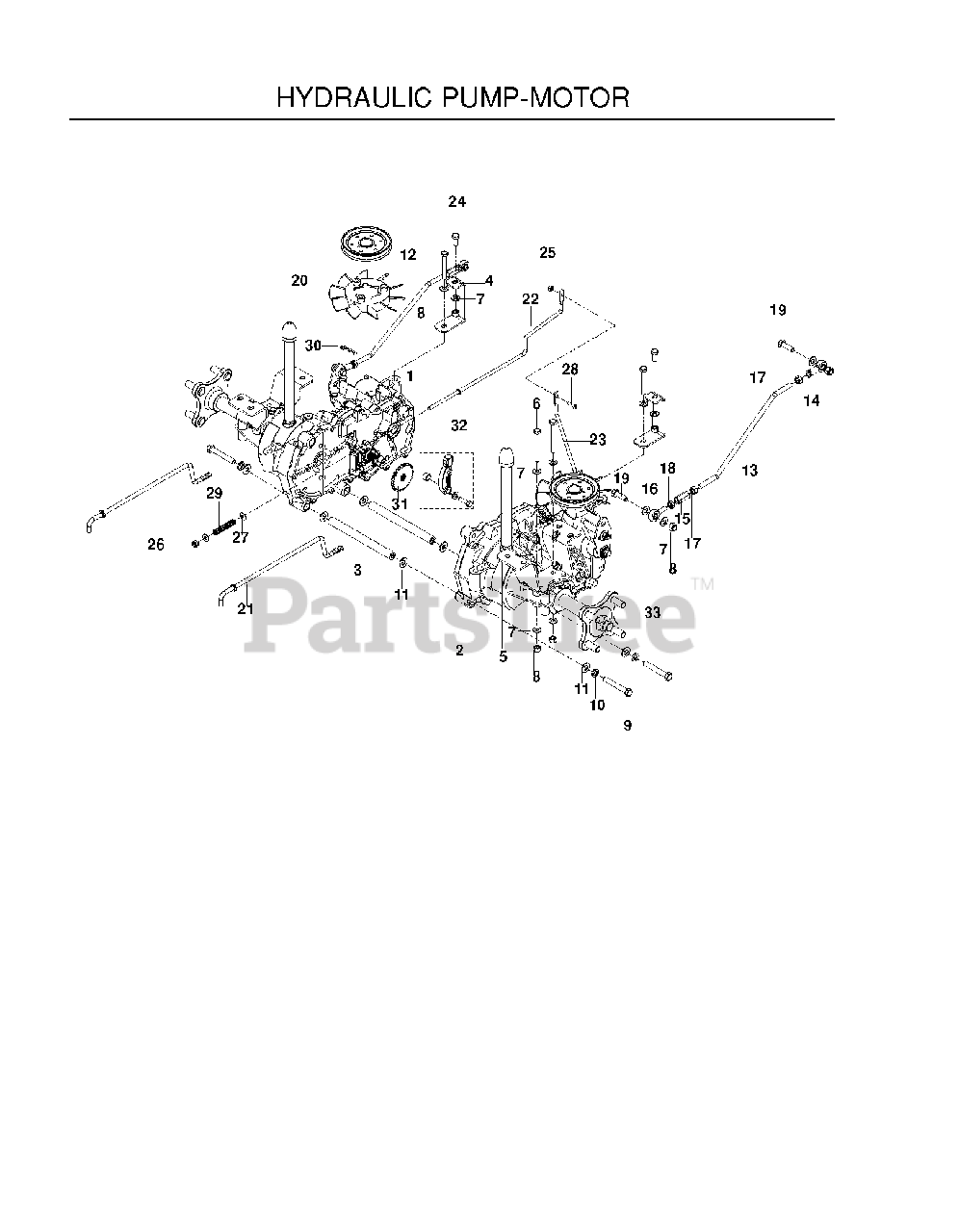

HYDRAULIC PUMP MOTOR Parts Diagram

  • Title

1

Husqvarna 510375601

HG_EZT, LT

$1091.99

$

In Stock, only 1 left!

0

2

Husqvarna 510375602

HG_EZT, RT

$1091.99

$

In Stock, only 1 left!

0

3

Husqvarna 510184101

SPACER TUBE, EZT
(Superseded to 510184104)

$

$

Not available

4

Husqvarna 522460702

SUPPORT.FRONT.TRANS.BLACK.
(Superseded to 580806502)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 510185102

EZT MOUNT, REAR, BLACK

$37.99

$

In Stock, Qty 5

0

6

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 16

0

7

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539976938

CAPSCREW

$3.99

$

In Stock, Qty 5

0

13

Husqvarna 522945001

ROD, MOTION CONTROL
(Superseded to 580624201)

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 539115729

RH ROD END
(Superseded to 579764601)

$8.99

$

In Stock, Qty 7

0

15

Husqvarna 539116689

ROD END COUPLER

$

$

Not available

16

Husqvarna 539116690

RB ROD.END.LH
(Superseded to 588692502)

$9.99

$

In Stock, Qty 11

0

17

Husqvarna 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539120785

HG_HYDRO FAN 51365

$37.99

$

In Stock, only 2 left!

0

21

Husqvarna 522941101

LINKAGE, BYPASS, EZT

$14.99

$

Usually ships in 3-10 days

0

22

Husqvarna 574030501

LINKAGE.BRAKE.LT

$

$

Not available

23

Husqvarna 574030502

LINKAGE, BRAKE RT

$

$

Not available

24

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

26

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539108535

SCR #10-24 X 3/4

$4.99

$

In Stock, Qty 7

0

29

Husqvarna 539110342

SPRING

$

$

Not available

30

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539120080

HG_DISC COG BRAKE 51635

$34.99

$

In Stock, only 2 left!

0

32

Husqvarna 539120079

HG_KIT BRAKE ARM (EZT)

$37.99

$

In Stock, Qty 17

0

33

Husqvarna 575507001

HG_KIT, HYDRO-GEAR HUB

$218.99

$

Usually ships in 3-10 days

0

Husqvarna 539110411

BELT, HYDRO PUMP

Note: NOT SHOWN

$28.99

$

In Stock, Qty 5

0
