RZ 4219 F (966495701) - Husqvarna 42" Zero-Turn Mower (2010-01) STEERING Parts Diagram

42" Zero-Turn Mower

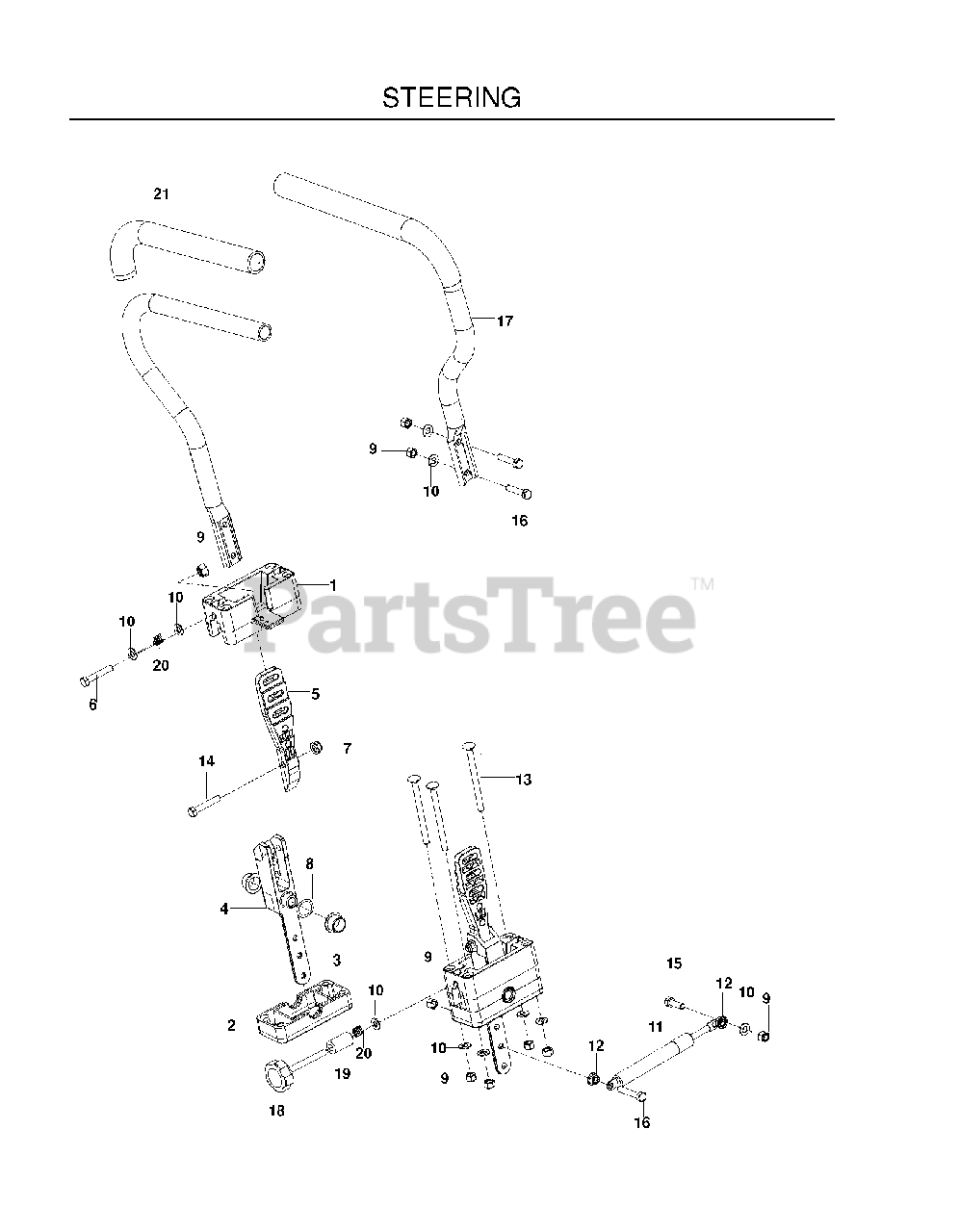

STEERING Parts Diagram

  • Title

1

Husqvarna 539131517

BLOCK, UPPER

$30.99

$

In Stock, only 1 left!

0

2

Husqvarna 539131519

BLOCK, LOWER

$15.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539131518

BEARING, FLANGE

$10.99

$

In Stock, Qty 7

0

4

Husqvarna 522452901

PIVOT.SECTION.DRIVE.CONTROL

$31.99

$

In Stock, Qty 20+

0

5

Husqvarna 539131521

MOUNT, DR CNTRL HANDLE
(Superseded to 576452801)

$40.99

$

In Stock, Qty 20+

0

6

Husqvarna 539108395

HCS 5/16-18 X 2 TPBLT GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, Qty 10

0

9

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539102720

DAMPENER

$66.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510422601

RHSNB 5/16-18 X 4 GR 5 ZD

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

15

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.49

$

Usually ships in 3-10 days

0

17

Husqvarna 522524303

ASSEMBLY, DRIVE LEVER
(Superseded to 579036901)

$

$

Not available

18

Husqvarna 521982601

KNOB, 3"

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539103543

SPACER

$7.49

$

In Stock, only 1 left!

0

20

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

21

Husqvarna 525392901

GRIP, DRIVE LEVER

$

$

Not available
