RZ 4219 R (966495701) - Husqvarna 42" Zero-Turn Mower (2010-01) Wheels And Tires Parts Diagram

42" Zero-Turn Mower

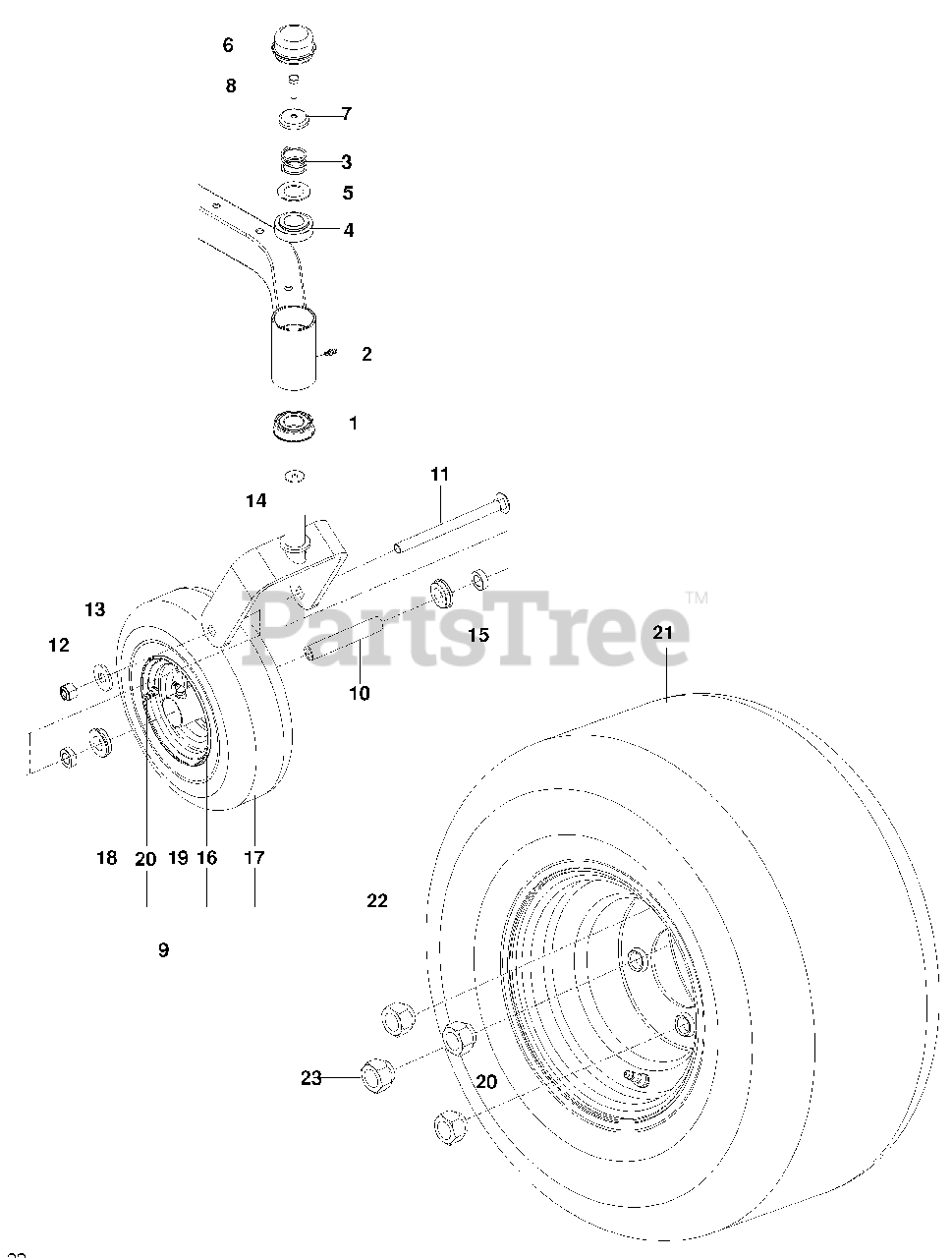

Wheels And Tires Parts Diagram

  • Title

1

Husqvarna 539112660

BEARING, FLANGED

$35.99

$

In Stock, Qty 20+

0

2

Husqvarna 539115638

ZERK 3/16 DRIVE

$4.99

$

In Stock, Qty 13

0

3

Husqvarna 539115747

SPRING, CASTER

$

$

Not available

4

Husqvarna 539117901

BUSHING, CASTER

$8.99

$

In Stock, Qty 20+

0

5

Husqvarna 539115675

WASHER

$

$

Not available

6

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539115749

PLUG, CASTER

$

$

Not available

8

Husqvarna 539115566

HHB 5/16-18 x 1 NYLOC
(Superseded to 874950516)

$

$

Not available

9

Husqvarna 516001901

CASTER TIRE ASSY
(Superseded to 581199701)

$100.99

$

In Stock, Qty 20+

0

10

Husqvarna 539105543

SPACER

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539121159

RHSNB 1/2-13 x 6 1/2

$24.99

$

In Stock, Qty 5

0

12

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539109554

WASHER 1/2 FLT

$

$

Not available

14

Husqvarna 510186501

YOKE
(Superseded to 510186505)

$109.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539114805

SPACER 5/16

$12.99

$

In Stock, Qty 13

0

16

Husqvarna 539106994

RIM

$42.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539114697

CASTER TIRE, 410/350 4 PLY

$

$

Not available

18

Husqvarna 539102484

BEARING, FLANGED

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 539912234

VALVE STEM

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 539112212

TIRE ASSY, REAR 18 x 8.5 965921501, 966495701
(Superseded to 581197601)

$

$

Not available

Husqvarna 539112213

TIRE, REAR 18 x 8.5

$133.99

$

Usually ships in 3-10 days

0

Husqvarna 539130820

TIRE ASSY, REAR 18 x 9.5 965881301, 965881401
(Superseded to 579753401)

$265.99

$

In Stock, only 1 left!

0

Husqvarna 539130822

TIRE, REAR 18 x 9.5 965881301, 965881401

$182.99

$

Usually ships in 3-10 days

0

Husqvarna 539110253

TIRE ASSY, REAR 18 x 7.5 966514801

$169.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539112214

RIM, 8 x 7 965921501, 966495701

$78.99

$

Usually ships in 3-10 days

0

Husqvarna 539112217

RIM 8 x 7 w/ .8" OFFSET 965881301, 965881401

$93.99

$

In Stock, only 1 left!

0

23

Husqvarna 539101173

NUT, LUG 1/2-20 HEX

$

$

Not available
