RZ 4221 BF (967036502) - Husqvarna 42" Zero-Turn Mower MOWER DECK / CUTTING DECK Parts Diagram

42" Zero-Turn Mower

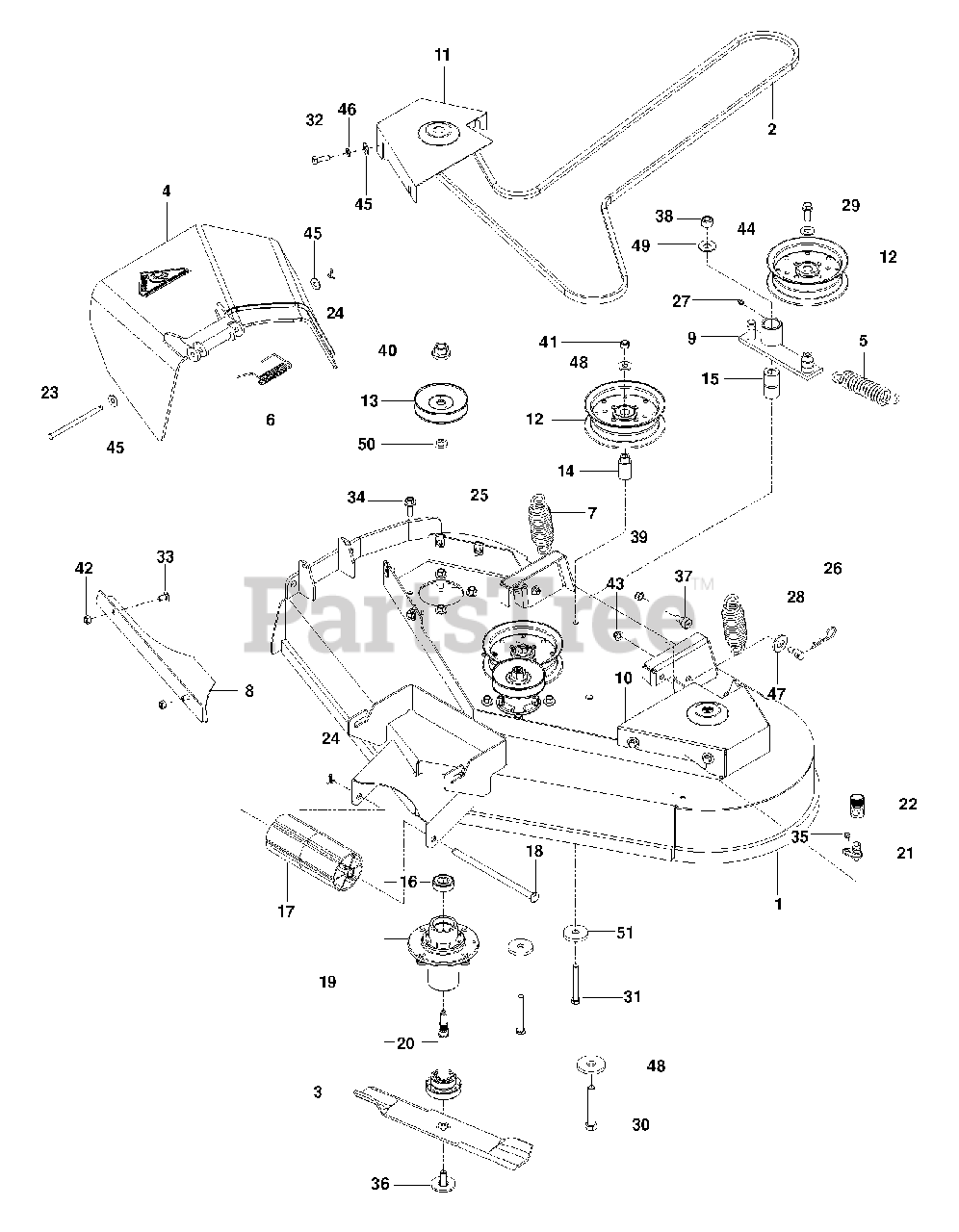

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 574761802

DECK SVC W/DECALS 42 RZ ORANGE

Note: SAFETY DECALS

$

$

Not available

2

Husqvarna 539117245

V-BELT

$66.99

$

In Stock, Qty 20+

0

3

Husqvarna 539112078

BLADE, 14 5/8"

$21.99

$

In Stock, Qty 20+

0

4

Husqvarna 539110731

DISCHARGE CHUTE 42"

$53.99

$

In Stock, Qty 8

0

5

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

6

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$3.99

$

In Stock, Qty 17

0

7

Husqvarna 539118762

SPRING

$

$

Not available

8

Husqvarna 539112413

CONFINEMENT.PLATE.42".BLACK

$40.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539112198

IDLER ARM

$121.99

$

In Stock, only 1 left!

0

10

Husqvarna 539112240

BELT SHIELD, LEFT 42, ORG

$60.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539112238

BELT SHIELD, RIGHT 42, ORG

$60.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

13

Husqvarna 525348501

PULLEY, MADREL 3.70 OP

$10.99

$

In Stock, Qty 7

0

14

Husqvarna 539112169

IDLER BUSHING

$

$

Not available

15

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

16

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

17

Husqvarna 532176066

NOSE ROLLER 48"

$9.99

$

In Stock, Qty 20+

0

18

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$74.99

$

In Stock, Qty 20+

0

20

Husqvarna 532187291

SHAFT ASM MANDREL

$25.99

$

In Stock, Qty 20+

0

21

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

22

Husqvarna 532416405

COUPLING.QUICK CONNECT

$8.99

$

In Stock, Qty 20+

0

23

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$

$

Not available

24

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

26

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

28

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

29

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

30

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 12

0

31

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5

$

$

Not available

32

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 817490408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

37

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

In Stock, only 4 left!

0

38

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 14

0

40

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN

$

$

Not available

44

Husqvarna 819141614

WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 819121414

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 810030500

WASH.5/16.SLW.ZD
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 819212113

WASHER
(Superseded to 583609901)

$

$

Not available

48

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

49

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

51

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available
