RZ 4222 F (966659401-00) - Husqvarna 42" Zero-Turn Mower (2011-05) IGNITION SYSTEM Parts Diagram

42" Zero-Turn Mower

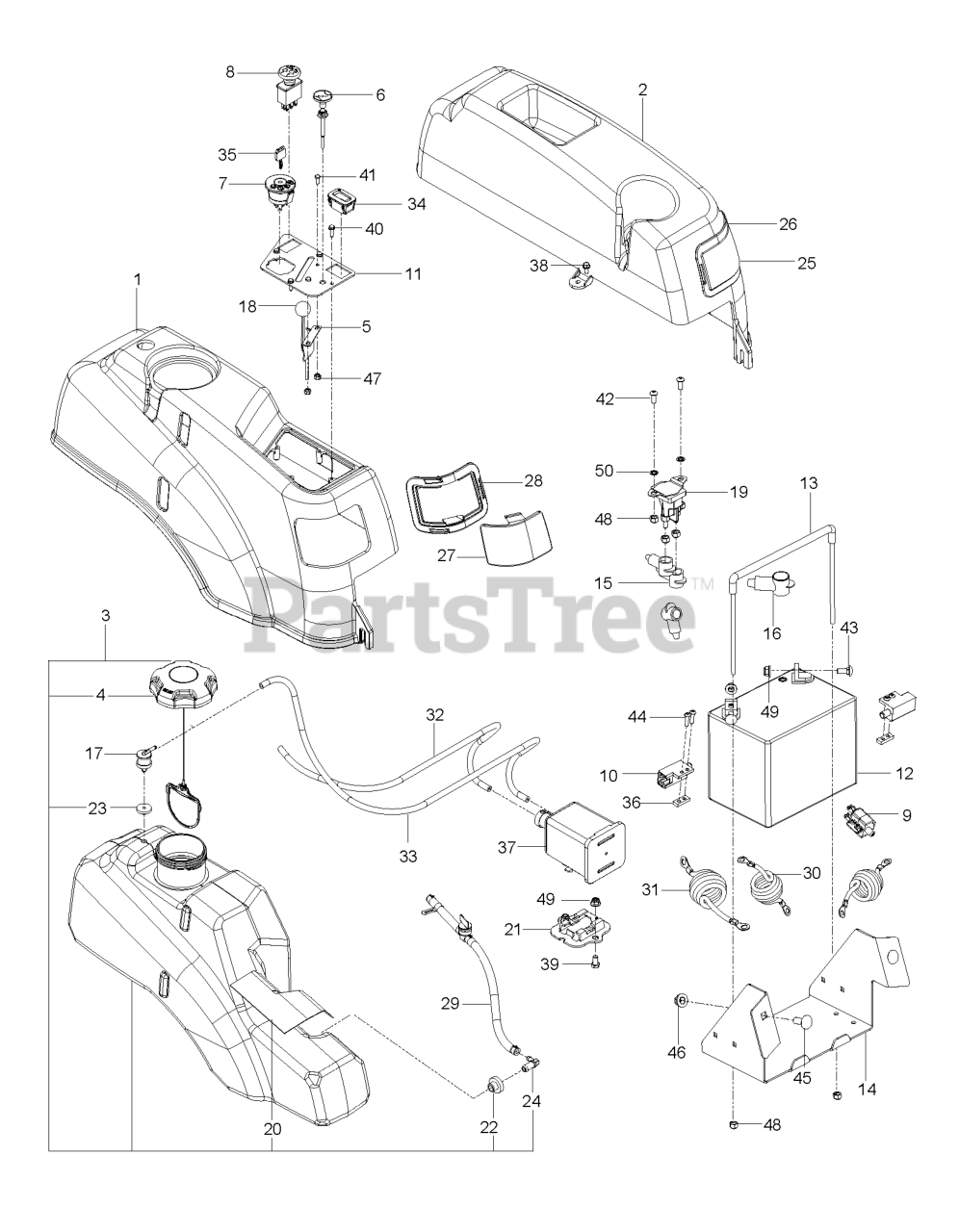

IGNITION SYSTEM Parts Diagram

  • Title

39

Husqvarna 539108392

HCS 5/16-18 X 5/8 GR 5 ZD
(Superseded to 596031601)

$3.49

$

In Stock, Qty 18

0

11

Husqvarna 539112735

CONSOLE.PLATE.BLACK

$45.99

$

Usually ships in 3-10 days

0

21

Husqvarna 575242701

BRACKET, CANISTER

$

$

Not available

50

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.49

$

In Stock, only 2 left!

0

15

Husqvarna 539116400

TERMINAL COVER-SM

$

$

Not available

16

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 9

0

44

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$3.49

$

In Stock, Qty 13

0

4

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$37.99

$

In Stock, only 2 left!

0

10

Husqvarna 539101080

SWITCH, INTERLOCK

$20.99

$

In Stock, only 2 left!

0

23

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 18

0

36

Husqvarna 539102678

TAPPED PLATE

$20.99

$

In Stock, Qty 8

0

30

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$11.99

$

In Stock, Qty 12

0

5

Husqvarna 539112734

THROTTLE CABLE

$39.99

$

In Stock, only 2 left!

0

33

Husqvarna 576660601

HOSE, VAPOR 3/16 X 39"

$

$

Not available

7

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$28.99

$

In Stock, Qty 20+

0

Husqvarna 515980501

WIRING HARNESS
(Superseded to 580798101)

Note: NOT SHOWN

$148.99

$

In Stock, Qty 15

0

46

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

35

Husqvarna 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 15

0

37

Husqvarna 532414114

CANNISTER, CARBON

$68.99

$

Usually ships in 3-10 days

0

20

Husqvarna 522559101

SHIELD, HEAT

$51.99

$

In Stock, only 1 left!

0

12

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

32

Husqvarna 576660604

HOSE, VAPOR 3/16 X 30"

$22.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD
(Superseded to 596789701)

$3.49

$

In Stock, only 1 left!

0

41

Husqvarna 539990411

HCS #10-24 X 1/2

$

$

Not available

38

Husqvarna 817490408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, Qty 9

0

48

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

18

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

$9.49

$

In Stock, only 3 left!

0

45

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

25

Husqvarna 539110056

LENS, COLORED LEFT
(Superseded to 539110457)

$6.99

$

In Stock, Qty 6

0

19

Husqvarna 539101714

SOLENOID

$28.99

$

In Stock, Qty 20+

0

49

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 9

0

28

Husqvarna 539110451

RT HEADLIGHT RIM GREY

$5.99

$

In Stock, Qty 7

0

40

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD
(Superseded to 596917001)

$3.49

$

In Stock, only 2 left!

0

27

Husqvarna 539110057

LENS, COLORED RIGHT
(Superseded to 539110453)

$7.99

$

In Stock, Qty 9

0

14

Husqvarna 510231302

BOX, BATTERY, BLACK

$102.99

$

Usually ships in 3-10 days

0

3

Husqvarna 578180601

TANK.FUEL.ASSEMBLY.LARGE
(Superseded to 589924706)

$

$

Not available

29

Husqvarna 576660701

FUEL LINE ASSY
(Superseded to 586123904)

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539110455

LEFT HEADLIGHT RIM GREY

$5.99

$

In Stock, only 4 left!

0

8

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

24

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 576618101

VALVE.FUEL.CHECK

$29.99

$

In Stock, Qty 13

0

31

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

$13.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539130374

FENDER, LT

$96.99

$

In Stock, only 1 left!

0

47

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 532401763

RP.GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$26.99

$

Usually ships in 3-10 days

0

43

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 539113792

SWITCH, BRAKE 3P

$22.99

$

In Stock, Qty 20+

0

13

Husqvarna 539131209

BATTERY TIE DOWN ASSEMBLY

$31.99

$

In Stock, only 2 left!

0

6

Husqvarna 539112439

CHOKE CABLE

$37.99

$

In Stock, Qty 9

0

1

Husqvarna 576370401

FENDER, RT, GRAY

$62.99

$

In Stock, only 1 left!

0
