RZ 4222 F (967036501) - Husqvarna 42" Zero-Turn Mower (2011-12) IGNITION SYSTEM Parts Diagram

42" Zero-Turn Mower

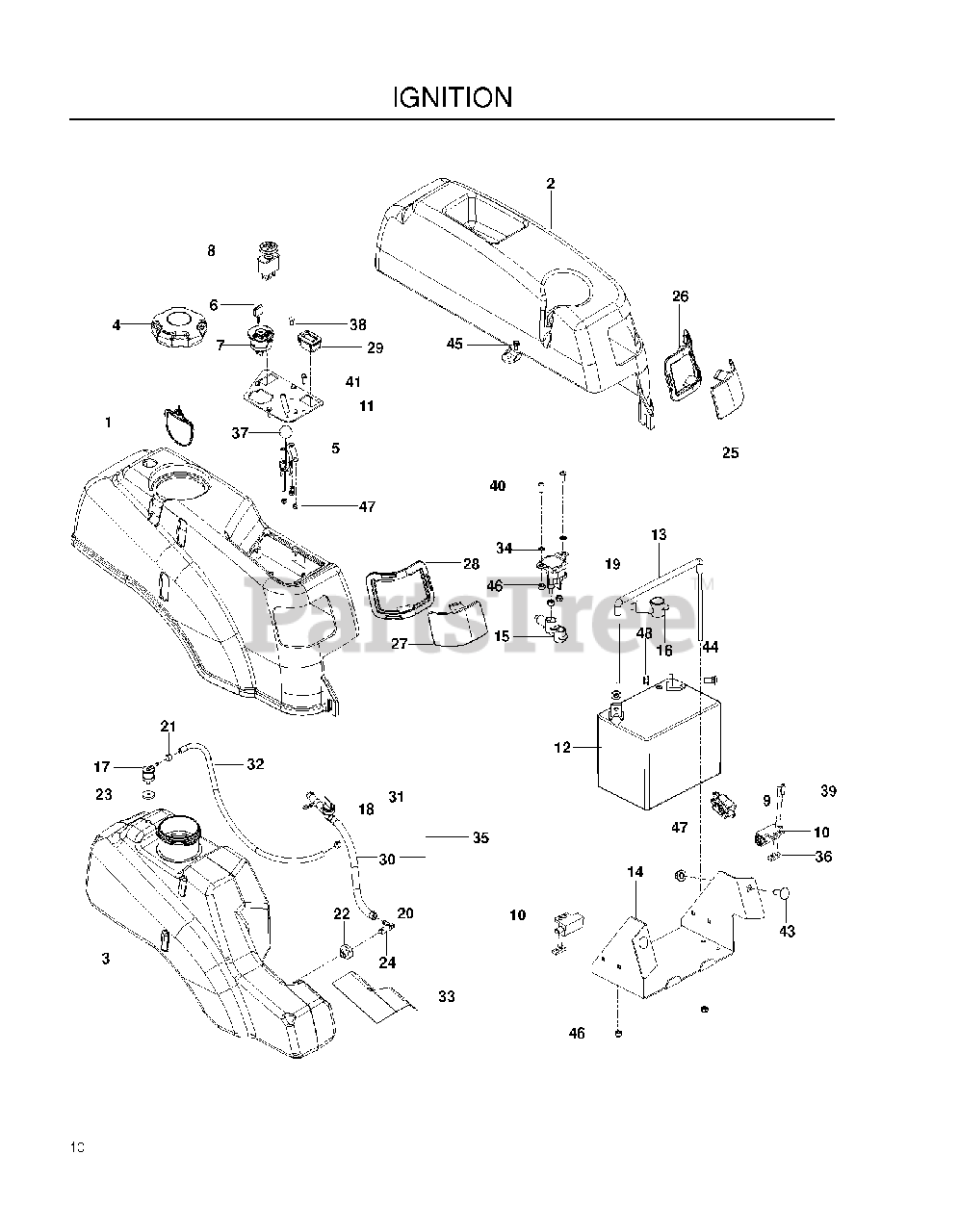

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 578178901

FENDER RT, GRAY

$85.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539130374

FENDER, LT

$96.99

$

In Stock, only 1 left!

0

3

Husqvarna 578178601

TANK.FUEL.RT.EPA
(Superseded to 578180601)

$

$

Not available

4

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$37.99

$

In Stock, only 2 left!

0

5

Husqvarna 522730101

CABLE, THROTTLE

$31.99

$

In Stock, only 3 left!

0

6

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 20+

0

7

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$28.99

$

In Stock, Qty 20+

0

8

Husqvarna 539174652

SWITCH.PTO
(Superseded to 532174651)

$31.99

$

In Stock, Qty 20+

0

9

Husqvarna 539113792

SWITCH, BRAKE 3P

$22.99

$

In Stock, Qty 20+

0

10

Husqvarna 539109553

SWITCH, INTERLOCK
(Superseded to 539101080)

$20.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539110304

CONSOLE.PLATE
(Superseded to 539110305)

$43.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

13

Husqvarna 539131209

BATTERY TIE DOWN ASSEMBLY

$31.99

$

In Stock, only 2 left!

0

14

Husqvarna 510231302

BOX, BATTERY, BLACK

$102.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539116400

TERMINAL COVER-SM

$

$

Not available

16

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 9

0

17

Husqvarna 576618101

VALVE.FUEL.CHECK

$29.99

$

In Stock, Qty 12

0

18

Husqvarna 539916325

FUEL VALVE

$13.99

$

In Stock, only 1 left!

0

19

Husqvarna 539101714

SOLENOID

$28.99

$

In Stock, Qty 20+

0

20

Husqvarna 539912222

HOSE CLAMP

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 575436501

CLAMP, HOSE

$3.49

$

In Stock, Qty 9

0

22

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 15

0

23

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 18

0

24

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$7.99

$

In Stock, only 1 left!

0

25

Husqvarna 576371101

PANEL, LT

$4.99

$

In Stock, Qty 7

0

26

Husqvarna 576370901

RING, TRIM LT BLK

$3.49

$

In Stock, Qty 6

0

27

Husqvarna 576371201

PANEL, RT, BLK

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 576371001

RING, TRIM, RT-BLK

$3.99

$

In Stock, Qty 8

0

29

Husqvarna 576179401

HOUR METER

$31.99

$

In Stock, only 2 left!

0

30

Husqvarna 539932956

GAS LINE 10"

$

$

Not available

31

Husqvarna 505215101

FUEL LINE 3"

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 574521302

HOSE, FUEL, 3/16" X 17-1/4"
(Superseded to 587044517)

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 522559101

SHIELD, HEAT

$51.99

$

In Stock, only 1 left!

0

34

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.49

$

In Stock, only 2 left!

0

35

Husqvarna 576660701

FUEL LINE ASSY
(Superseded to 586123904)

$17.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539102678

TAPPED PLATE

$20.99

$

In Stock, Qty 8

0

37

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

$9.49

$

In Stock, only 3 left!

0

38

Husqvarna 539990411

HCS #10-24 X 1/2

$

$

Not available

39

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$3.49

$

In Stock, Qty 13

0

40

Husqvarna 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD
(Superseded to 596789701)

$3.49

$

In Stock, only 1 left!

0

41

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD
(Superseded to 596917001)

$3.49

$

In Stock, only 2 left!

0

42

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$

$

Not available

43

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

44

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

45

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$3.49

$

In Stock, only 2 left!

0

46

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

47

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

48

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

Note: NOT SHOWN

$11.99

$

In Stock, Qty 12

0

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

Note: NOT SHOWN

$13.99

$

Usually ships in 3-10 days

0

Husqvarna 515980501

WIRING HARNESS
(Superseded to 580798101)

Note: NOT SHOWN

$148.99

$

In Stock, Qty 15

0

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

Note: NOT SHOWN

$3.49

$

In Stock, only 1 left!

0
