RZ 4222 F (967036501) - Husqvarna 42" Zero-Turn Mower (2011-12) STEERING Parts Diagram

42" Zero-Turn Mower

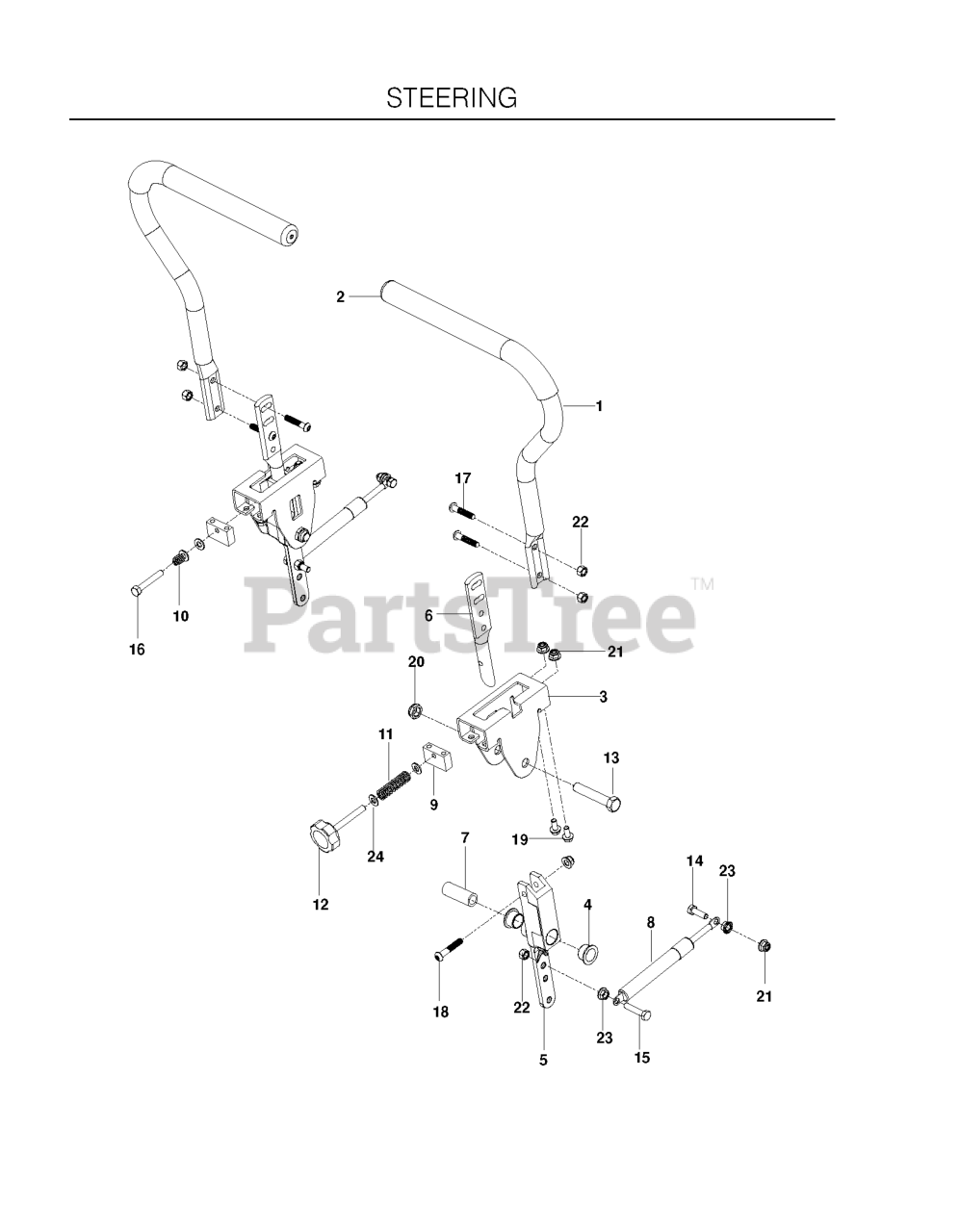

STEERING Parts Diagram

  • Title

1

Husqvarna 579036901

LEVER.STEERING.ASM.(W/GRIP)

$

$

Not available

2

Husqvarna 525392901

GRIP, DRIVE LEVER
(Superseded to 598851704)

$59.99

$

In Stock, Qty 20+

0

3

Husqvarna 577251701

BRACKET, CONTROL
(Superseded to 586737202)

$28.99

$

In Stock, only 3 left!

0

4

Husqvarna 539131518

BEARING, FLANGE

$13.99

$

In Stock, Qty 11

0

5

Husqvarna 576140301

LEVER CONTROL PIVOT

$26.99

$

In Stock, Qty 20+

0

6

Husqvarna 577420001

LEVER.HANDLE MOUNT
(Superseded to 577420002)

$14.99

$

Usually ships in 3-10 days

0

7

Husqvarna 577252401

SPACER, PIVOT CONTROL
(Superseded to 584927201)

$5.99

$

In Stock, Qty 16

0

8

Husqvarna 539102720

DAMPENER
(Superseded to 548932401)

$95.99

$

In Stock, Qty 18

0

9

Husqvarna 577251801

BLOCK.TRACKING

$14.99

$

In Stock, Qty 5

0

10

Husqvarna 539102845

SPRING

$3.99

$

In Stock, only 2 left!

0

11

Husqvarna 576850301

SPRING COMPRESSION 2.0

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539131799

KNOB
(Superseded to 596400701)

$11.99

$

In Stock, Qty 5

0

13

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 1 left!

0

14

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 15

0

15

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD
(Superseded to 596582201)

$3.99

$

In Stock, only 2 left!

0

16

Husqvarna 539101469

RING RETAINING INT 2-1/2

$

$

Not available

17

Husqvarna 578296401

SCREW 5/16-18 X 1 BTN-HD

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, Qty 5

0

19

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

20

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$3.99

$

In Stock, only 2 left!

0

21

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990585

NUT 5/16C WHIZ
(Superseded to 596039201)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0
