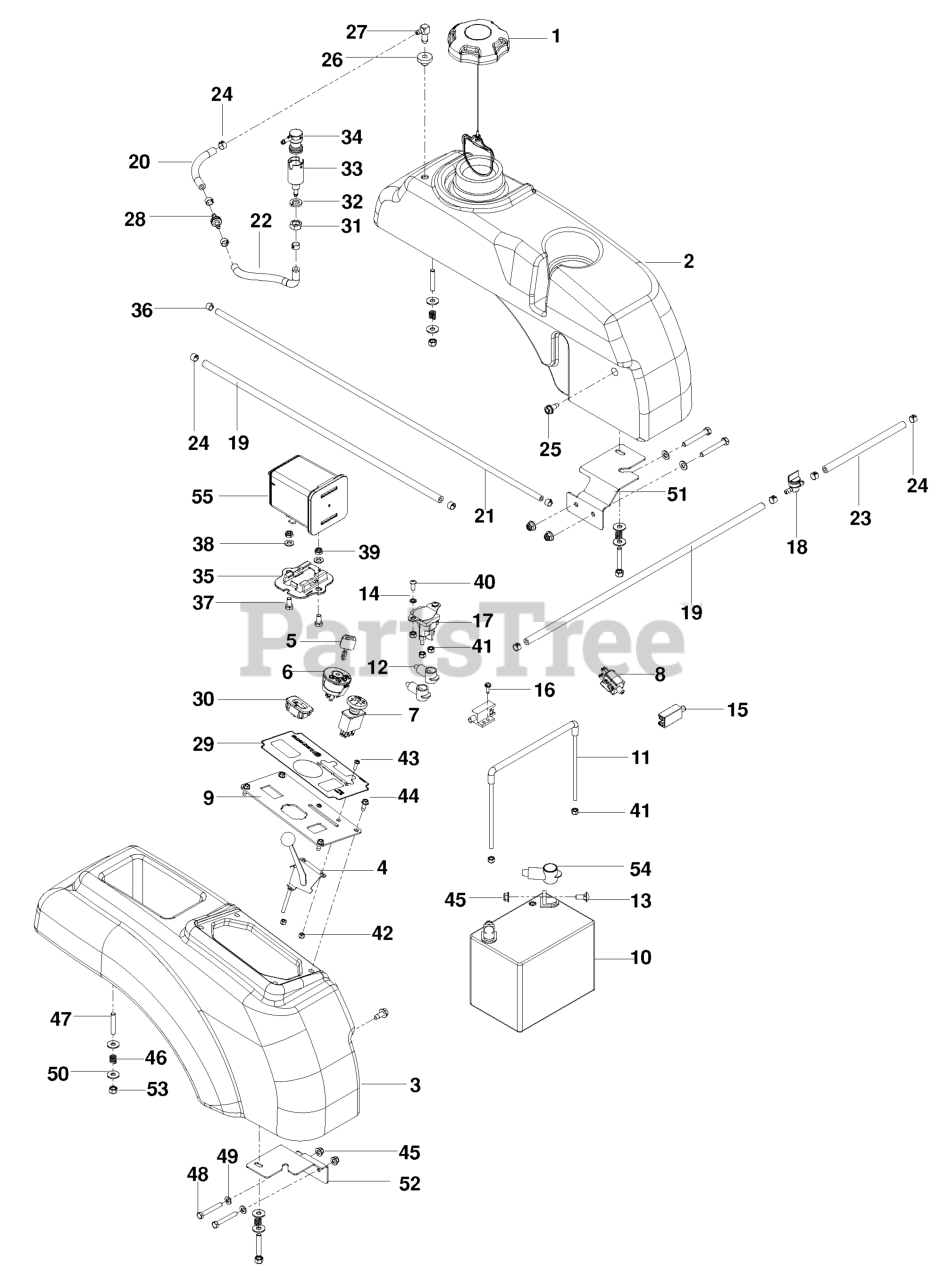

RZ 4619 CA (966503401) - Husqvarna 46" Zero-Turn Mower, CARB (2010-01) Ignition Parts Diagram

46" Zero-Turn Mower, CARB

Ignition Parts Diagram

  • Title

1

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$37.99

$

In Stock, only 2 left!

0

2

Husqvarna 575320701

TANK, FUEL LH, W/DOWNTUBE

$

$

Not available

3

Husqvarna 574826301

CONSOLE, RT

$

$

Not available

4

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB
(Superseded to 597524002)

$56.99

$

In Stock, only 2 left!

0

5

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 20+

0

6

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$28.99

$

In Stock, Qty 20+

0

7

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

8

Husqvarna 539113792

SWITCH, BRAKE 3P

$22.99

$

In Stock, Qty 20+

0

9

Husqvarna 575494002

PANEL, CONTROL, GRAY

$

$

Not available

10

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

11

Husqvarna 539131209

BATTERY TIE DOWN ASSEMBLY

$31.99

$

In Stock, Qty 5

0

12

Husqvarna 539116400

TERMINAL COVER-SM

$

$

Not available

13

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.49

$

In Stock, only 2 left!

0

15

Husqvarna 539101080

SWITCH, INTERLOCK

$20.99

$

In Stock, Qty 20+

0

16

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING
(Superseded to 596584001)

$3.49

$

In Stock, Qty 18

0

17

Husqvarna 539101714

SOLENOID

$28.99

$

In Stock, Qty 20+

0

18

Husqvarna 539916325

FUEL VALVE

$13.99

$

In Stock, only 2 left!

0

19

Husqvarna 539110424

FUEL LINE 24"
(Superseded to 539107765)

$9.49

$

In Stock, only 2 left!

0

20

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.49

$

In Stock, only 4 left!

0

21

Husqvarna 575437802

FUEL LINE 33"
(Superseded to 575437801)

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 575438501

FUEL LINE 7"

$

$

Currently unavailable

23

Husqvarna 539115736

HOSE 1/4 X 8

$7.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539912222

HOSE CLAMP

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$

$

Not available

26

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 539105244

ELBOW

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 575017801

VALVE, ANTI-SLOSH

$

$

Not available

29

Husqvarna 575494101

DECAL, CONTROL PANEL, HUSQ

$

$

Not available

30

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$31.99

$

In Stock, only 2 left!

0

31

Husqvarna 539990625

NUT 1/2 HEX JAM
(Superseded to 596433401)

$3.49

$

In Stock, only 2 left!

0

32

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 575296801

BODY, ROLLOVER VALVE

$

$

Not available

34

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX
(Superseded to 597791601)

$13.99

$

In Stock, only 2 left!

0

35

Husqvarna 575242701

BRACKET, CANISTER

$

$

Not available

36

Husqvarna 575436501

CLAMP, HOSE

$3.49

$

In Stock, Qty 7

0

37

Husqvarna 539108392

HCS 5/16-18 X 5/8 GR 5 ZD
(Superseded to 596031601)

$3.49

$

Usually ships in 3-10 days

0

38

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 539115617

5/16-18 THIN PROF NY
(Superseded to 596433601)

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD
(Superseded to 596789701)

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

42

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

45

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

46

Husqvarna 539102845

SPRING

$3.49

$

In Stock, only 4 left!

0

47

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 2 left!

0

48

Husqvarna 539976938

CAPSCREW

$4.99

$

In Stock, Qty 11

0

49

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

50

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

51

Husqvarna 522629404

SUPPORT, TANK LT BLK

$

$

Not available

52

Husqvarna 522629402

SUPPORT, TANK, RT BLK

$

$

Not available

53

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

54

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 8

0

55

Husqvarna 532414114

CANNISTER, CARBON

$68.99

$

Usually ships in 3-10 days

0

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

Note: NOT SHOWN

$11.99

$

In Stock, Qty 9

0

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

Note: NOT SHOWN

$13.99

$

Usually ships in 3-10 days

0

Husqvarna 515980501

WIRING HARNESS
(Superseded to 580798101)

Note: NOT SHOWN

$148.99

$

In Stock, Qty 13

0

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0
