RZ 4623 (967009801) - Husqvarna 46" Zero-Turn Mower (2012-01) FRAME Parts Diagram

46" Zero-Turn Mower

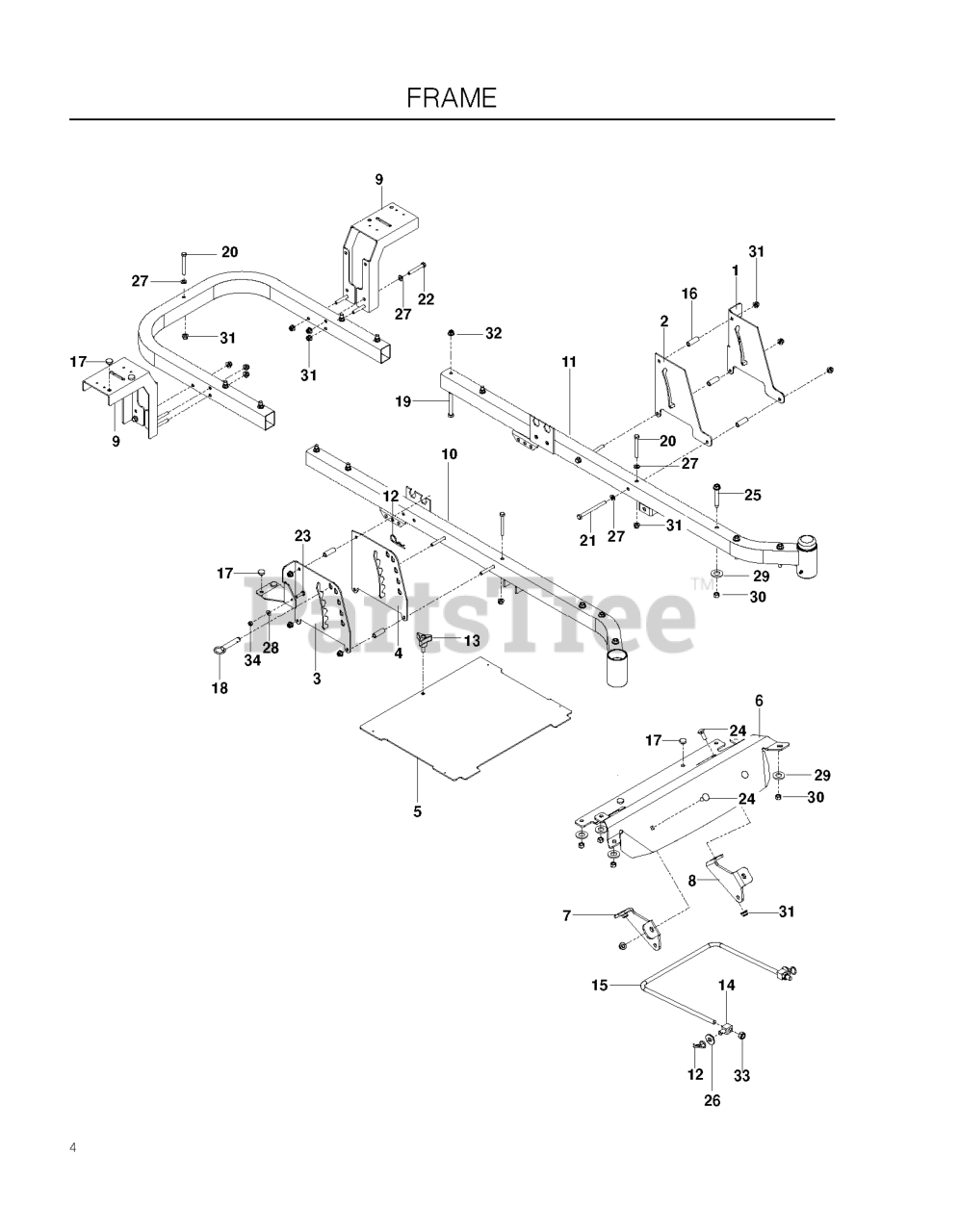

FRAME Parts Diagram

  • Title

1

Husqvarna 510261802

PLATE, OUTER BRAKE, BLACK

$33.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510206703

PLATE, BRAKE LATCH, BLACK

$129.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510245604

PLATE, DECK HEIGHT, BLK EZ

$

$

Not available

4

Husqvarna 510240502

PLATE, DECK HEIGHT, BLACK

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522842902

PLATE, FOOT W/DECALS RZ
(Superseded to 598712401)

$136.99

$

Usually ships in 3-10 days

0

6

Husqvarna 522719504

FOOT.REST.MED.ORANGE

$

$

Not available

7

Husqvarna 522443302

MOUNT, STRUT, RT, BLK

$37.99

$

Usually ships in 3-10 days

0

8

Husqvarna 522443304

MOUNT, STRUT, LT, BLK

$

$

Not available

9

Husqvarna 510225902

SUPPORT, FENDER, BLACK

$77.99

$

Usually ships in 3-10 days

0

10

Husqvarna 510177503

FRAME, RT, ORANGE
(Superseded to 589283402)

$193.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510177403

FRAME, LT, ORANGE
(Superseded to 589283302)

$125.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976989

HAIRPIN #4
(Superseded to 596273101)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539114789

SWIVEL

$14.99

$

In Stock, only 4 left!

0

15

Husqvarna 521938101

LINK, FRONT SUSP.
(Superseded to 521938102)

$27.99

$

In Stock, Qty 7

0

16

Husqvarna 515988101

SPACER, .334 ID X .5 OD X 1.5
(Superseded to 580486102)

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

18

Husqvarna 539102526

HITCH PIN
(Superseded to 596917701)

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 10

0

20

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 8

0

21

Husqvarna 539102335

HCS 5/16C X 4
(Superseded to 596435501)

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539976938

CAPSCREW

$4.99

$

In Stock, Qty 10

0

23

Husqvarna 539977761

HCS 1/4C X 1

$1.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539111976

ENGINE BOLT, SPECIAL

$

$

Not available

26

Husqvarna 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.99

$

In Stock, Qty 7

0

27

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539990055

WASHER 1/4 SAE
(Superseded to 596582301)

$3.99

$

In Stock, only 2 left!

0

29

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 19

0

30

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 539976979)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

32

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 10

0

33

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD
(Superseded to 595901901)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+
