RZ 4824 F (967003801) - Husqvarna 48" Zero-Turn Mower (2012-02) HYDRAULIC PUMP MOTOR Parts Diagram

48" Zero-Turn Mower

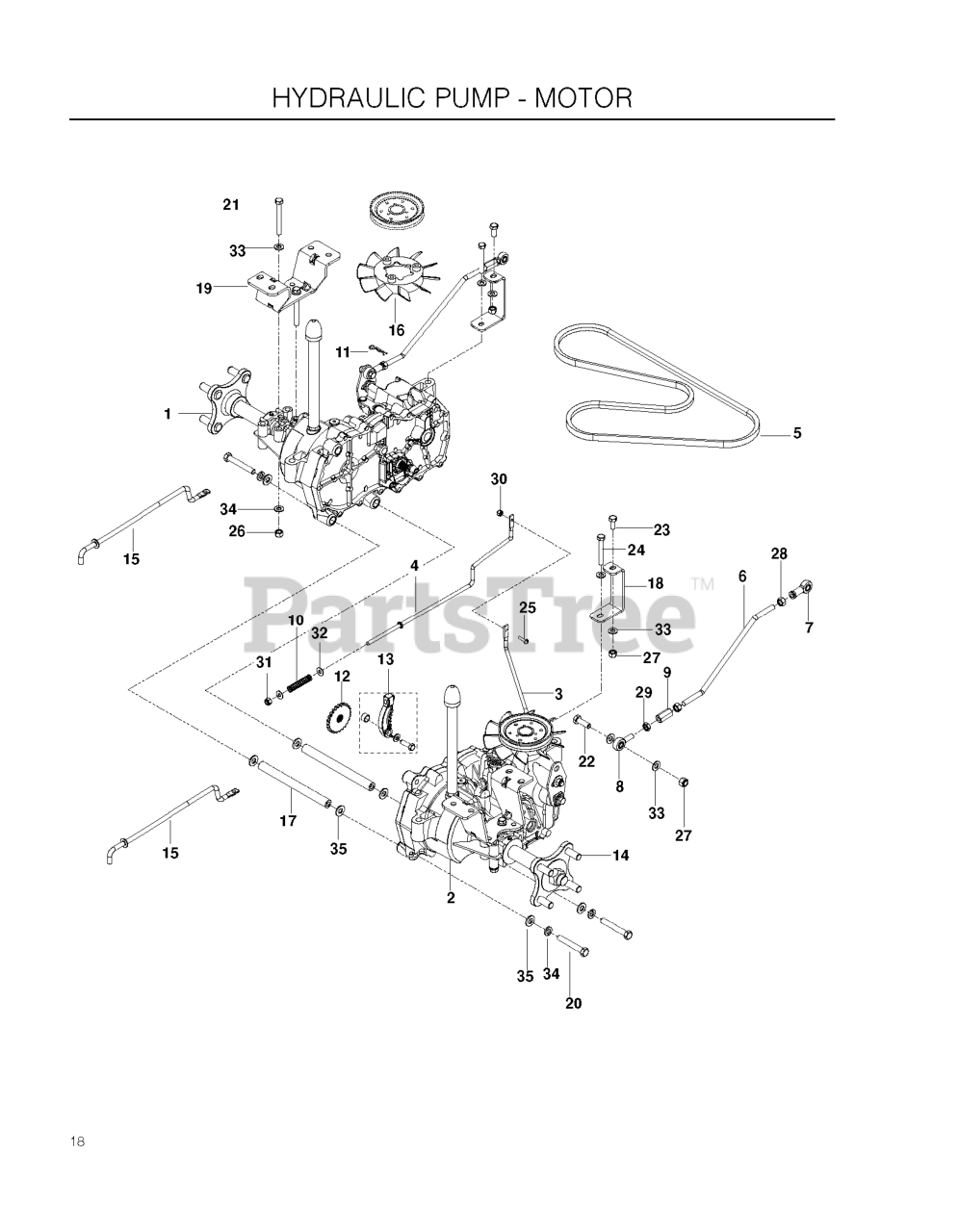

HYDRAULIC PUMP MOTOR Parts Diagram

  • Title

1

Husqvarna 510375601

HG_EZT, LT

$1436.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510375602

HG_EZT, RT

$1139.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574030501

LINKAGE.BRAKE.LT
(Superseded to 596930401)

$10.99

$

In Stock, Qty 8

0

4

Husqvarna 574030502

LINKAGE, BRAKE RT
(Superseded to 596930701)

$8.49

$

In Stock, Qty 8

0

5

Husqvarna 539110411

BELT, HYDRO PUMP

$28.99

$

In Stock, Qty 20+

0

6

Husqvarna 522945001

RP.ROD, MOTION CONTROL
(Superseded to 580624201)

$

$

Not available

7

Husqvarna 539115729

RH ROD END
(Superseded to 579764601)

$15.99

$

In Stock, Qty 10

0

8

Husqvarna 539116690

RP.ROD.END.LH
(Superseded to 588692502)

$14.99

$

In Stock, Qty 8

0

9

Husqvarna 539116689

ROD END COUPLER
(Superseded to 596718601)

$3.99

$

In Stock, Qty 15

0

10

Husqvarna 539110342

SPRING
(Superseded to 596299801)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, Qty 10

0

12

Husqvarna 539120080

HG_DISC COG BRAKE 51635

$39.99

$

In Stock, Qty 5

0

13

Husqvarna 539120079

HG_KIT BRAKE ARM (EZT)

$41.99

$

In Stock, Qty 20+

0

14

Husqvarna 575507001

HG_KIT, HYDRO-GEAR HUB

$239.99

$

Usually ships in 3-10 days

0

15

Husqvarna 522941101

LINKAGE, BYPASS, EZT
(Superseded to 522941102)

$8.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539120785

HG_HYDRO FAN 51365

$31.99

$

Usually ships in 3-10 days

0

17

Husqvarna 510184101

SPACER TUBE, EZT
(Superseded to 510184104)

$

$

Not available

18

Husqvarna 522460702

SUPPORT.FRONT.TRANS.BLACK.
(Superseded to 580806502)

$8.49

$

In Stock, Qty 20+

0

19

Husqvarna 510185102

EZT MOUNT, REAR, BLACK

$45.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990637

HCS 3/8C X 2 1/2
(Superseded to 596434201)

$4.99

$

In Stock, Qty 18

0

21

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 12

0

22

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 19

0

23

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539976938

CAPSCREW

$4.99

$

In Stock, Qty 11

0

25

Husqvarna 539108535

SCR #10-24 X 3/4

$3.99

$

In Stock, Qty 5

0

26

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539115617

5/16-18 THIN PROF NY
(Superseded to 596433601)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990223

NUT 5/16F
(Superseded to 596040901)

$3.99

$

In Stock, Qty 12

0

29

Husqvarna 539991073

NUT 5/16F LEFTHAND
(Superseded to 596584101)

$3.99

$

In Stock, only 2 left!

0

30

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

32

Husqvarna 539990055

WASHER 1/4 SAE
(Superseded to 596582301)

$3.99

$

In Stock, Qty 10

0

33

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0
