RZ 4824 F (967003801) - Husqvarna 48" Zero-Turn Mower (2012-02) SEAT Parts Diagram

48" Zero-Turn Mower

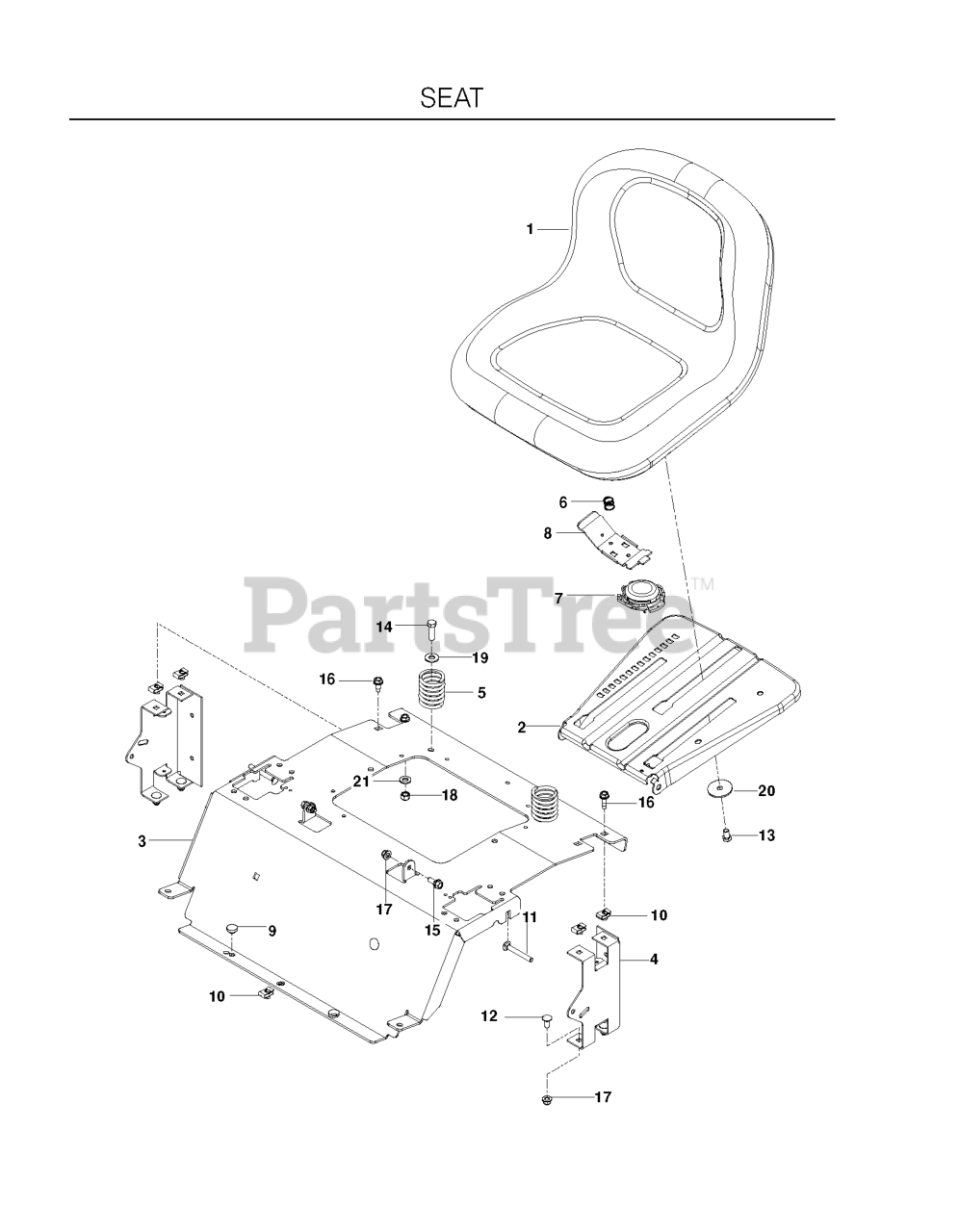

SEAT Parts Diagram

  • Title

1

Husqvarna 532424068

RP SEAT, TH150, GREY, MILSCO
(Superseded to 532439822)

$227.99

$

In Stock, Qty 20+

0

2

Husqvarna 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$65.99

$

In Stock, only 1 left!

0

3

Husqvarna 577260503

SUPPORT SEAT ORANGE
(Superseded to 589761211)

$167.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574522702

SUPPORT, REAR SEAT, BLACK
(Superseded to 580308202)

$27.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539110300

SPRING, SEAT
(Superseded to 532124181)

$7.49

$

In Stock, Qty 20+

0

6

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$3.49

$

In Stock, only 2 left!

0

7

Husqvarna 539132140

SWITCH, SEAT N/C

$17.99

$

In Stock, only 3 left!

0

8

Husqvarna 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK
(Superseded to 595088102)

$5.99

$

In Stock, only 1 left!

0

9

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

10

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 11

0

11

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD
(Superseded to 510422702)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

In Stock, Qty 12

0

13

Husqvarna 539108503

HCS 3/8-16 X 5/8 GR 5 ZD

$3.99

$

In Stock, only 2 left!

0

14

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 539110303

BOLT, SHOULDER
(Superseded to 596240701)

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$

$

Not available

17

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539111897

WASHER, 3/8 SPEC
(Superseded to 596917301)

$5.99

$

In Stock, only 3 left!

0

21

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0
