RZ 4824 F CA (967003802-03) - Husqvarna 48" Zero-Turn Mower, CARB (2014-06) ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

48" Zero-Turn Mower, CARB

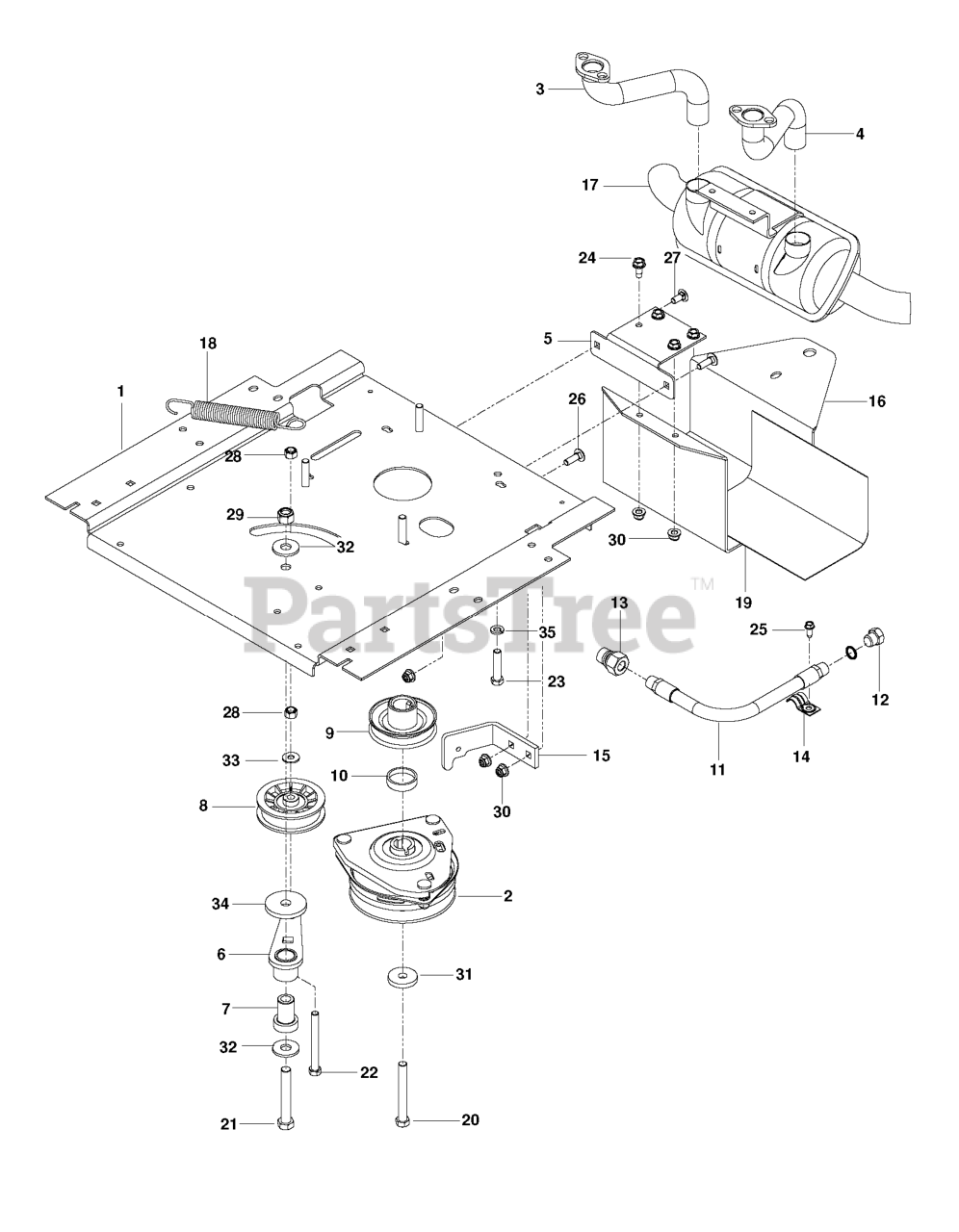

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

30

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 581726301

MUFFLER OUTLET DUAL RZ

$131.99

$

Usually ships in 3-10 days

0

4

Husqvarna 581726401

EXHAUST PIPE ASM DYAL KAW LT

$

$

Not available

11

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$39.99

$

Usually ships in 3-10 days

0

35

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

15

Husqvarna 522442506

CLUTCH STOP OGR BLK
(Superseded to 587633302)

$

$

Not available

10

Husqvarna 577094601

SPACER, HUB PULLEY

$8.49

$

In Stock, only 4 left!

0

8

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

In Stock, Qty 20+

0

24

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 532400008

CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$395.99

$

In Stock, Qty 9

0

21

Husqvarna 874780852

HCS 1/2-13 X 3-1/4 GD 5 ZD
(Superseded to 596435301)

$4.99

$

In Stock, Qty 10

0

Husqvarna 522598601

KAWASAKI PIGTAIL

Note: NOT SHOWN

$59.99

$

Usually ships in 3-10 days

0

20

Husqvarna 581332803

CLUTCH BOLT7/16-20X2.5 GR524HR
(Superseded to 581332806)

$7.49

$

In Stock, Qty 14

0

12

Husqvarna 585807101

PLUG OIL DRAIN

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$2.49

$

In Stock, Qty 6

0

7

Husqvarna 539101231

IDLER SPINDLE

$14.99

$

In Stock, Qty 19

0

34

Husqvarna 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 7

0

26

Husqvarna 872140508

BOLT
(Superseded to 595901501)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$26.99

$

Usually ships in 3-10 days

0

16

Husqvarna 584989802

GUARD.MUFFLER.BLACK
(Superseded to 587451202)

$23.99

$

In Stock, only 2 left!

0

31

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 14

0

23

Husqvarna 539976949

BOLT, HCS 3/8-16X1-3/4
(Superseded to 596918101)

$3.99

$

In Stock, only 2 left!

0

25

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

13

Husqvarna 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

$

$

Not available

1

Husqvarna 532448161

ENGINE PLATE RZ

$71.99

$

In Stock, only 1 left!

0

32

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539114530

PULLEY, ENGINE
(Superseded to 587537401)

$31.99

$

In Stock, Qty 19

0

3

Husqvarna 581726501

EXHAUST PIPE ASM DUAL KAW RT

$

$

Not available

6

Husqvarna 532448145

ARM IDLER
(Superseded to 583593901)

$13.99

$

In Stock, Qty 19

0

29

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 874520656

HCS 3/8-16X3-1/2 TAPBLT GR5 ZD
(Superseded to 596433901)

$3.99

$

In Stock, Qty 10

0

19

Husqvarna 539132859

HEAT SHIELD

$20.99

$

In Stock, only 2 left!

0

18

Husqvarna 532196105

SPRING, DECK DRIVE

$7.49

$

In Stock, Qty 20+

0

28

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0
