RZ 4824 TF BF (967003803) - Husqvarna 48" Zero-Turn Mower (2012-06) STEERING Parts Diagram

48" Zero-Turn Mower

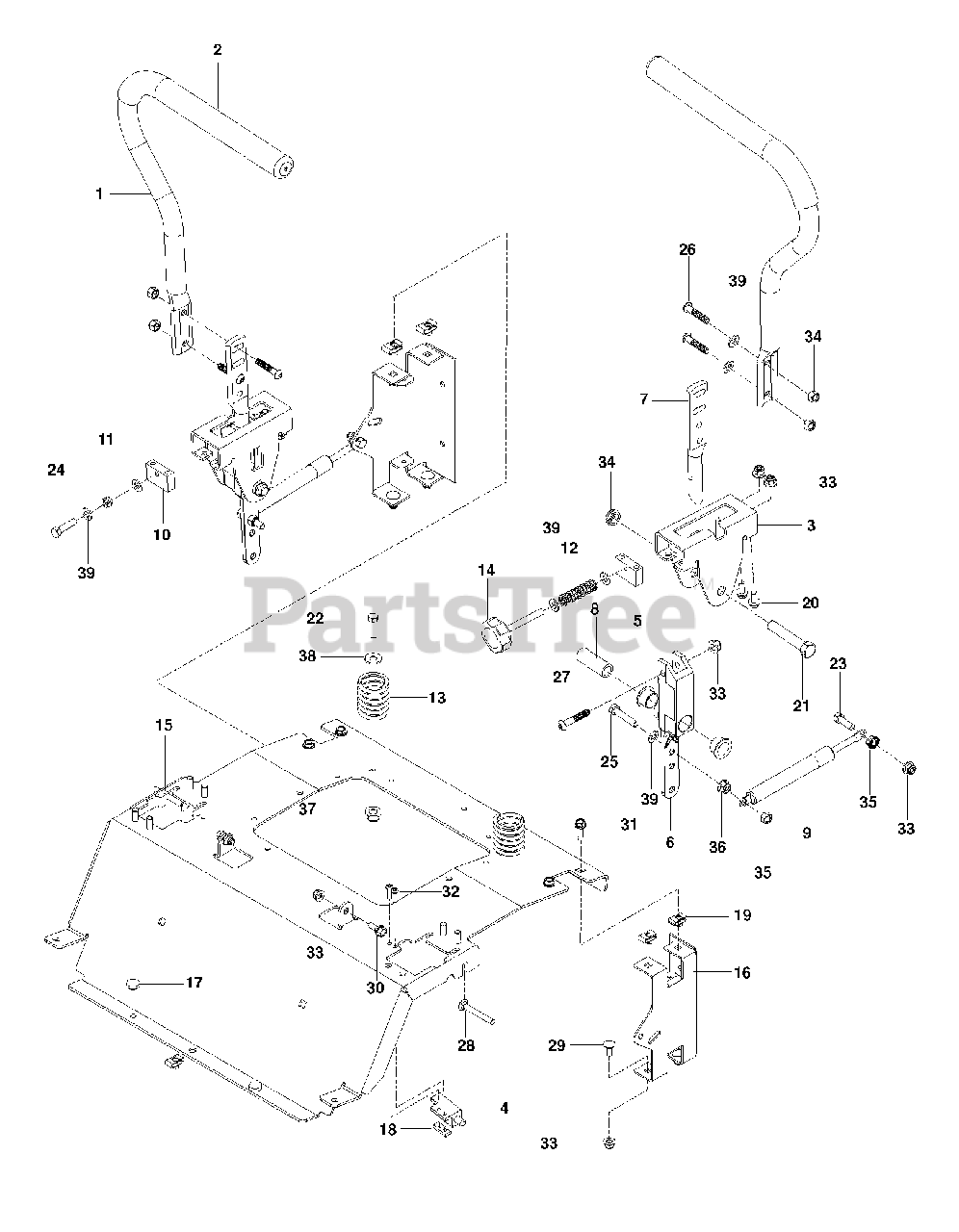

STEERING Parts Diagram

  • Title

1

Husqvarna 579036901

LEVER.STEERING.ASM.(W/GRIP)

$

$

Not available

2

Husqvarna 525392901

GRIP, DRIVE LEVER

$

$

Not available

3

Husqvarna 577251701

BRACKET, CONTROL
(Superseded to 586737202)

$28.99

$

In Stock, only 1 left!

0

4

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$20.99

$

In Stock, only 2 left!

0

5

Husqvarna 539131518

BEARING, FLANGE

$13.99

$

In Stock, Qty 11

0

6

Husqvarna 576140301

LEVER CONTROL PIVOT

$26.99

$

In Stock, Qty 11

0

7

Husqvarna 577420001

LEVER.HANDLE MOUNT
(Superseded to 577420002)

$13.99

$

In Stock, Qty 15

0

8

Husqvarna 577252401

SPACER, PIVOT CONTROL
(Superseded to 584927201)

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539102720

DAMPENER

$79.99

$

In Stock, Qty 14

0

10

Husqvarna 577251801

BLOCK.TRACKING

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539102845

SPRING

$3.49

$

In Stock, Qty 5

0

12

Husqvarna 576850301

SPRING COMPRESSION 2.0

$4.99

$

In Stock, Qty 6

0

13

Husqvarna 539110300

SPRING, SEAT
(Superseded to 532124181)

$6.99

$

In Stock, only 4 left!

0

14

Husqvarna 539131799

KNOB
(Superseded to 596400701)

$11.99

$

In Stock, Qty 15

0

15

Husqvarna 577260503

SUPPORT SEAT ORANGE
(Superseded to 589761211)

$159.99

$

Usually ships in 3-10 days

0

16

Husqvarna 574522702

SUPPORT, REAR SEAT, BLACK
(Superseded to 580308202)

$26.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 9

0

18

Husqvarna 539102678

TAPPED PLATE

$20.99

$

In Stock, Qty 8

0

19

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 7

0

20

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.49

$

In Stock, only 1 left!

0

21

Husqvarna 874780844

HCS 1/2-13 X 2-3/4 GD 5 ZD
(Superseded to 596434301)

$3.49

$

In Stock, only 1 left!

0

22

Husqvarna 874780620

BOLT
(Superseded to 874760620)

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00
(Superseded to 596580801)

$3.49

$

In Stock, only 2 left!

0

24

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

25

Husqvarna 874780528

SCREW

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 578296402

SCREW BUTTONHEAD 5/16-18X1-1/2

$5.99

$

In Stock, only 3 left!

0

27

Husqvarna 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD
(Superseded to 510422702)

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 872140506

BOLT 5/16-18 X3/4 ZN/YEL GR 5
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

30

Husqvarna 539110303

BOLT, SHOULDER
(Superseded to 596240701)

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 817490512

SCREW
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$3.49

$

In Stock, Qty 12

0

33

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

34

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$3.49

$

In Stock, only 2 left!

0

35

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$

$

Not available

36

Husqvarna 539990585

NUT 5/16C WHIZ

$

$

Not available

37

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

38

Husqvarna 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 19

0
