RZ 4824 TF BF (967003803) - Husqvarna 48" Zero-Turn Mower (2013-11) IGNITION SYSTEM Parts Diagram

48" Zero-Turn Mower

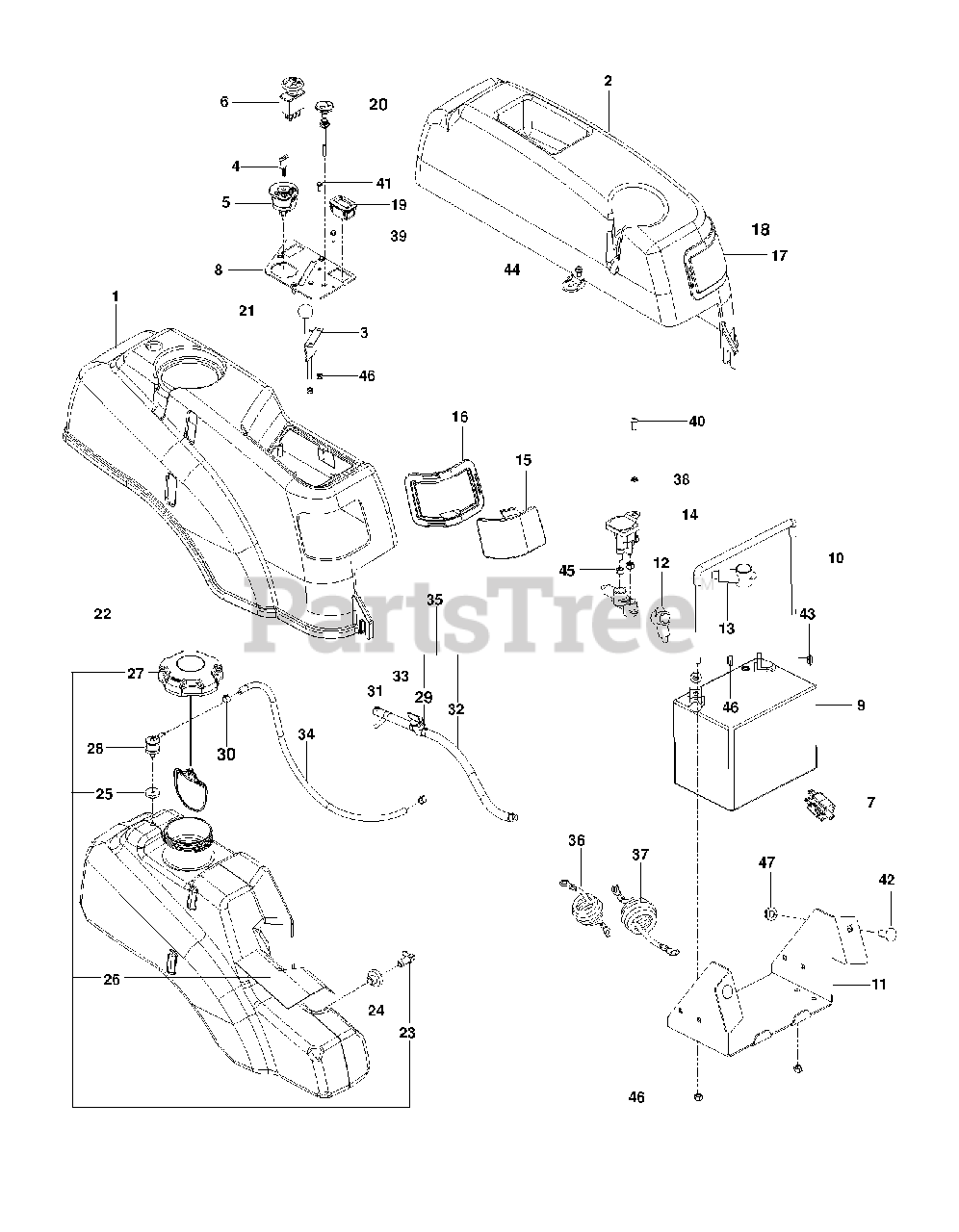

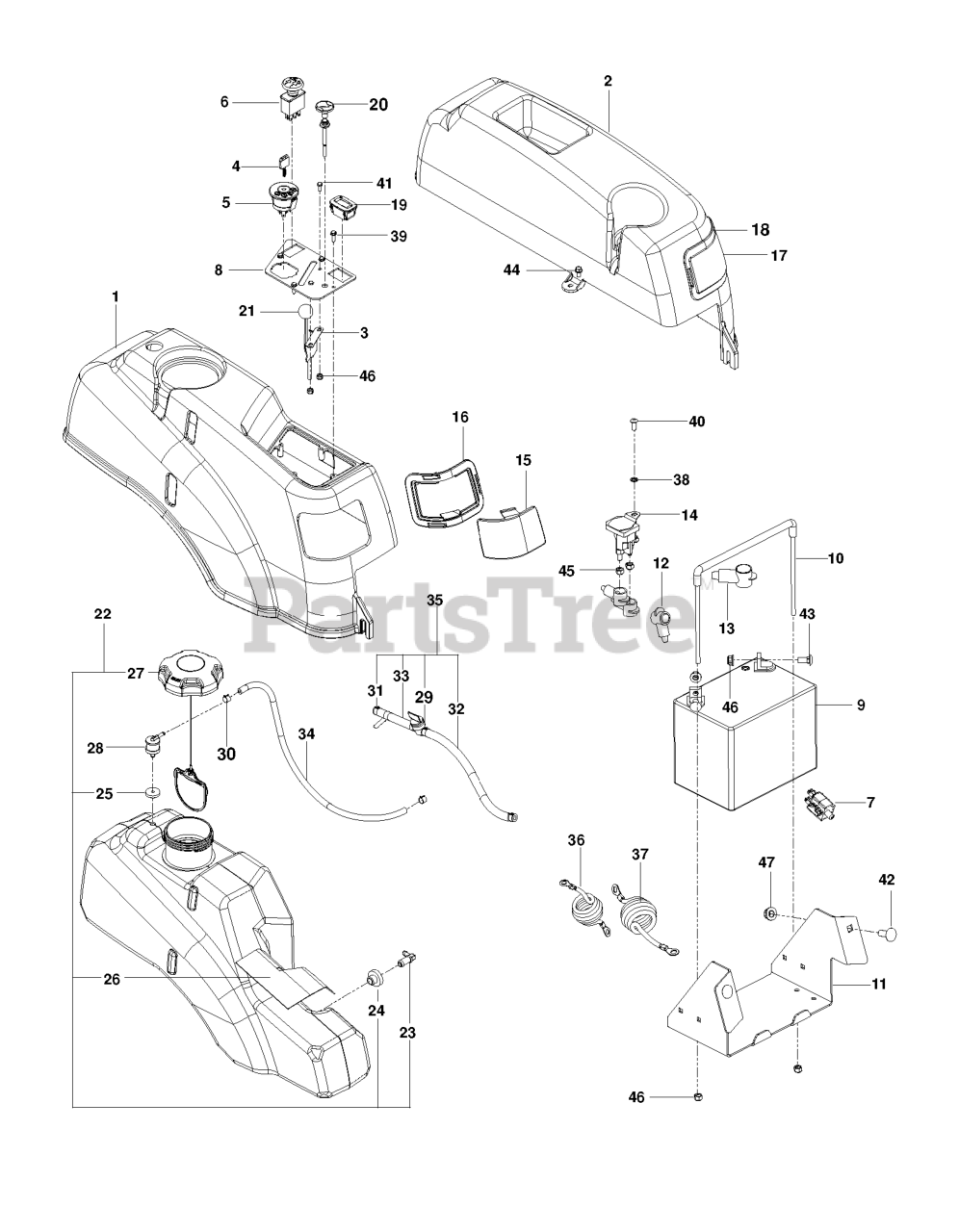

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 578178901

FENDER RT, GRAY

$

$

Not available

2

Husqvarna 539130374

FENDER, LT

$93.99

$

In Stock, only 2 left!

0

3

Husqvarna 539112734

THROTTLE CABLE

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

6

Husqvarna 539174652

SWITCH.PTO
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

7

Husqvarna 539113792

SWITCH, BRAKE 3P

$12.99

$

In Stock, Qty 20+

0

8

Husqvarna 539112735

CONSOLE.PLATE.BLACK

$27.99

$

In Stock, only 2 left!

0

9

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

10

Husqvarna 539131209

BATTERY TIE DOWN ASSEMBLY

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

15

Husqvarna 539110057

LENS, COLORED RIGHT

$7.49

$

In Stock, Qty 8

0

16

Husqvarna 539110451

RT HEADLIGHT RIM GREY

$6.49

$

In Stock, Qty 9

0

17

Husqvarna 539110056

LENS, COLORED LEFT

$7.49

$

In Stock, Qty 5

0

18

Husqvarna 539110455

LEFT HEADLIGHT RIM GREY

$6.49

$

In Stock, Qty 11

0

19

Husqvarna 532401763

RP GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 20+

0

20

Husqvarna 539112439

CHOKE CABLE

$34.99

$

In Stock, only 2 left!

0

21

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

$18.99

$

In Stock, Qty 7

0

22

Husqvarna 578180601

TANK.FUEL.ASSEMBLY.LARGE
(Superseded to 589924706)

$157.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, Qty 20+

0

24

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 522559101

SHIELD, HEAT

$30.99

$

Usually ships in 3-10 days

0

27

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

In Stock, Qty 6

0

28

Husqvarna 576618101

VALVE.FUEL.CHECK

$22.99

$

In Stock, Qty 20+

0

29

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

30

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, Qty 6

0

31

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna 539932956

GAS LINE 10"

$8.99

$

Usually ships in 3-10 days

0

33

Husqvarna 505215101

FUEL LINE 3"

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 576660605

HOSE, VAPOR 3/16 X 15"

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 576660701

FUEL LINE ASSY

$27.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$8.99

$

In Stock, only 2 left!

0

37

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

$

$

Not available

38

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

39

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 872141608

$

$

Currently unavailable

43

Husqvarna 872140506

BOLT 5/16-18 X3/4 ZN/YEL GR 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 14

0

45

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

Husqvarna 581091901

HARNESS.WIRING.RZ

Note: NOT SHOWN

$100.99

$

Usually ships in 3-10 days

0
