RZ 5426 (967003605) - Husqvarna 54" Zero-Turn Mower (2013-08) BRAKE / REAR MOWER LIFT Parts Diagram

54" Zero-Turn Mower

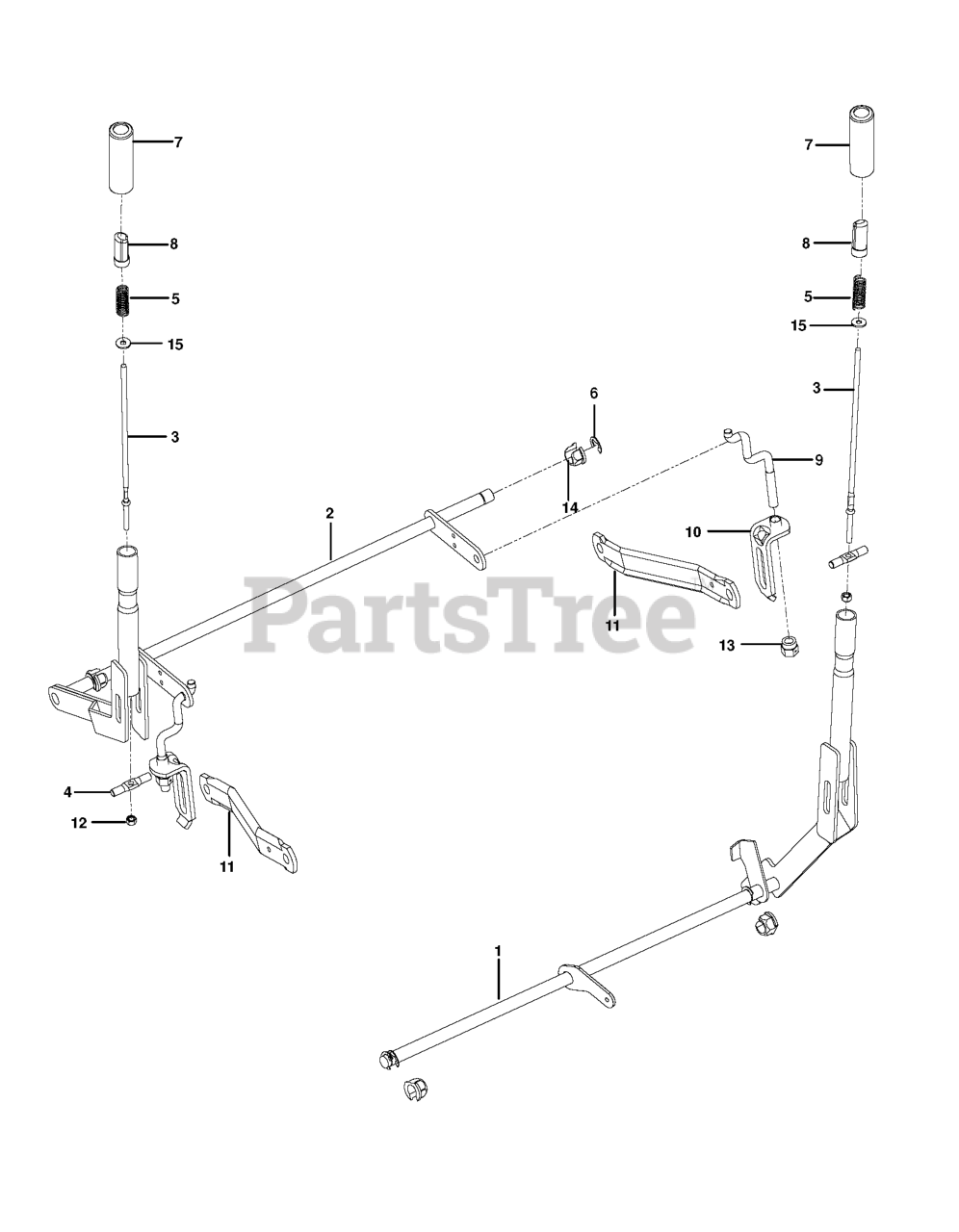

BRAKE / REAR MOWER LIFT Parts Diagram

  • Title

1

Husqvarna 580435801

SUB.ASM.SHAFT.BRAKE.WLDMNT.MED

$56.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532448208

SHAFT.LIFT.MED.WELDMT.PNT.431
(Superseded to 586760203)

$56.99

$

In Stock, Qty 6

0

3

Husqvarna 510422901

ROD, HANDLE RELEASE
(Superseded to 510422902)

$5.99

$

In Stock, only 1 left!

0

4

Husqvarna 516008801

RB ROD, LATCH RELEASE
(Superseded to 583629301)

$5.99

$

In Stock, only 2 left!

0

5

Husqvarna 510030701

SPRING, COMPRESSION
(Superseded to 510030702)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539105069

E-RING 5/8

$

$

Not available

7

Husqvarna 510207201

GRIP, HANDLE, BLACK 4"

$6.49

$

In Stock, only 3 left!

0

8

Husqvarna 510207301

BUTTON, PUSH, BLACK

$5.99

$

In Stock, Qty 10

0

9

Husqvarna 525847201

LINK, REAR SUSPENSION
(Superseded to 587623001)

$13.99

$

In Stock, Qty 11

0

10

Husqvarna 522858601

ASSEMBLY, BRKT LINK
(Superseded to 587623001)

$13.99

$

In Stock, Qty 11

0

11

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$17.99

$

In Stock, only 2 left!

0

12

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510184901

PLASTIC NUT

$5.99

$

In Stock, Qty 7

0

15

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

$3.49

$

In Stock, only 3 left!

0
