RZ 5426 (967003605) - Husqvarna 54" Zero-Turn Mower (2013-08) STEERING Parts Diagram

54" Zero-Turn Mower

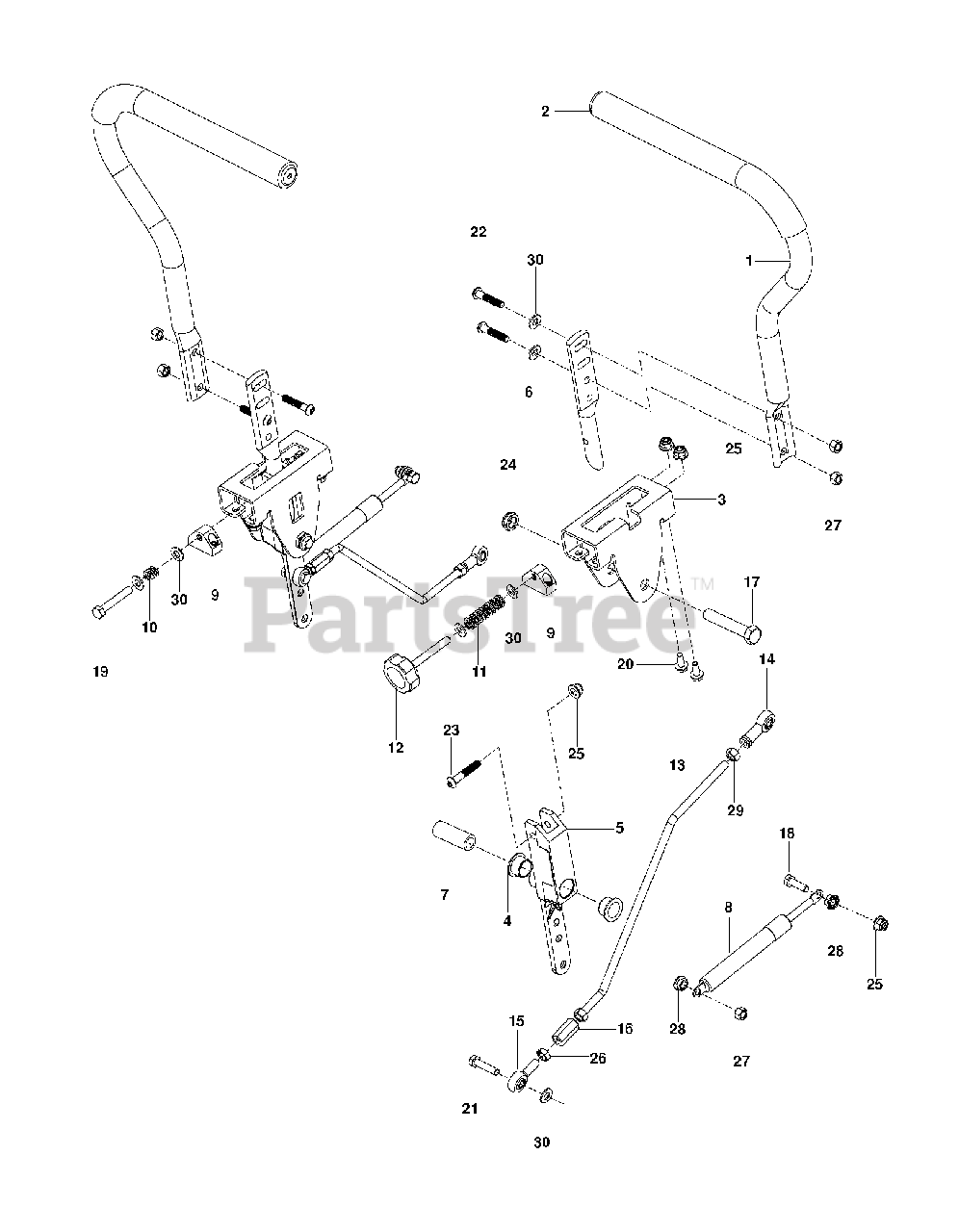

STEERING Parts Diagram

  • Title

1

Husqvarna 581826701

CONTROL.TUBE.RZ (2 2)

$36.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525392901

GRIP, DRIVE LEVER

$

$

Not available

3

Husqvarna 586737202

BRACKET.CONTROL.NARROWSLOT.BLK

$26.99

$

In Stock, only 2 left!

0

4

Husqvarna 539131518

BEARING, FLANGE

$10.99

$

In Stock, Qty 7

0

5

Husqvarna 576140301

LEVER CONTROL PIVOT

$24.99

$

In Stock, Qty 20+

0

6

Husqvarna 577420001

LEVER.HANDLE MOUNT

$

$

Not available

7

Husqvarna 577252401

SPACER, PIVOT CONTROL
(Superseded to 584927201)

$4.99

$

In Stock, Qty 11

0

8

Husqvarna 539102720

DAMPENER

$66.99

$

In Stock, Qty 20+

0

9

Husqvarna 581437501

BLOCK TRACKING CONTROL ZTR

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

11

Husqvarna 576850301

SPRING COMPRESSION 2.0

$6.49

$

In Stock, Qty 10

0

12

Husqvarna 539131799

KNOB

$

$

Not available

13

Husqvarna 580624201

ROD MOTION CONTROL

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 539115729

RH ROD END
(Superseded to 579764601)

$8.99

$

In Stock, Qty 7

0

15

Husqvarna 539116690

RB ROD.END.LH
(Superseded to 588692502)

$9.99

$

In Stock, Qty 11

0

16

Husqvarna 539116689

ROD END COUPLER

$

$

Not available

17

Husqvarna 874780844

HCS 1/2-13 X 2-3/4 GD 5 ZD

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.49

$

Usually ships in 3-10 days

0

20

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

21

Husqvarna 874780528

SCREW

$7.49

$

In Stock, only 4 left!

0

22

Husqvarna 578296402

SCREW BUTTONHEAD 5/16-18X1-1/2

$3.49

$

In Stock, Qty 6

0

23

Husqvarna 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, Qty 7

0

24

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, Qty 5

0

25

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0
