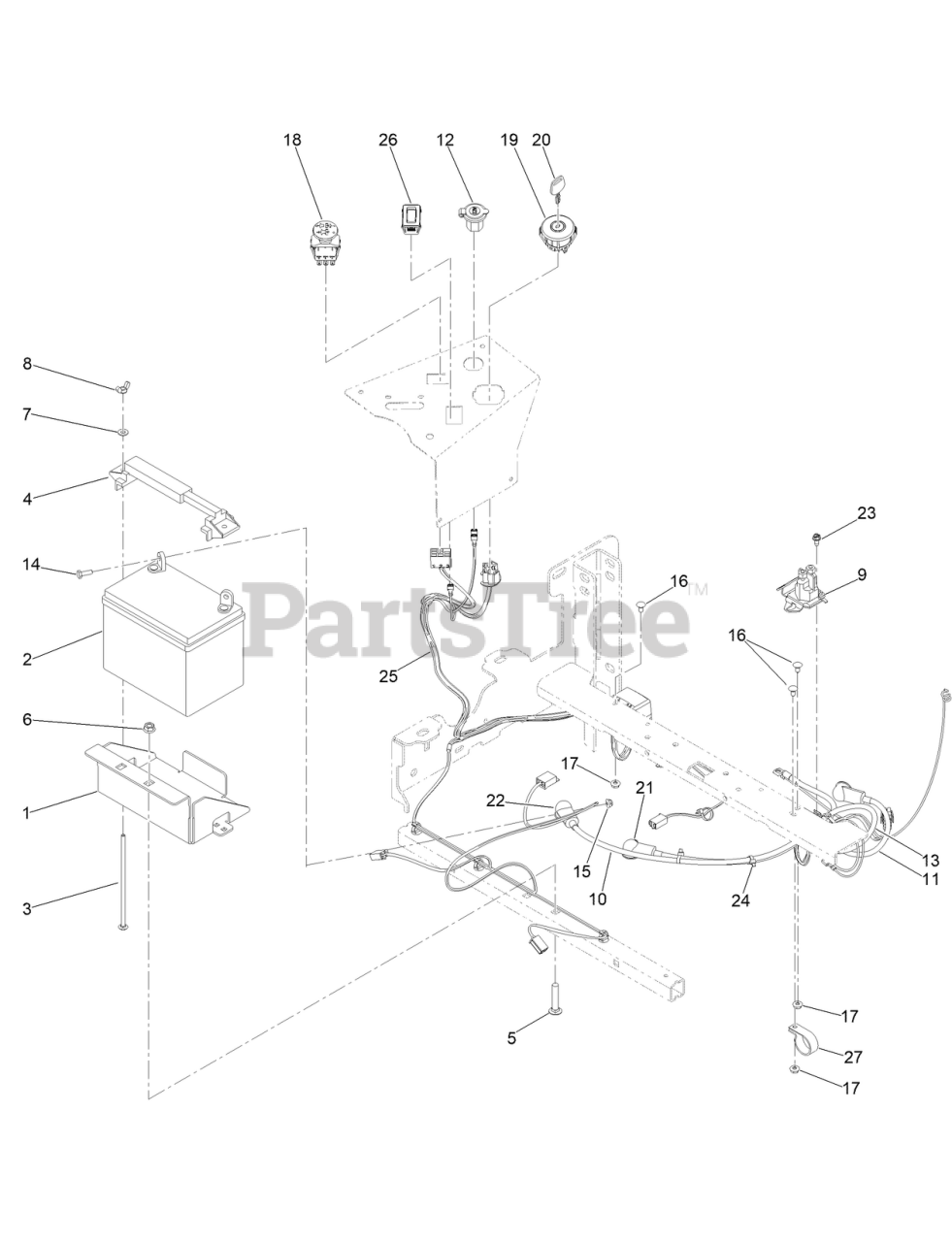

RZ HD (RSZL116027CXI) - Spartan 60" Zero-Turn Mower (SN: 400000000 - 999999999) Electrical Assembly Parts Diagram

60" Zero-Turn Mower

Electrical Assembly Parts Diagram

  • Title

1

Toro 439-0008-00-P11

MWR BATTERY BOX

$

$

Currently unavailable

2

Toro 468-1004-00

12 VOLT START BATTERY 300CCA

$

$

Currently unavailable

3

Toro 418-0034-00

1/4-20 X 7 CARRIAGE BOLT ZINC

$

$

Currently unavailable

4

Toro 443-0001-00

BATTERY HOLD DOWN

$

$

Currently unavailable

5

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

6

Toro 413-0020-00

3/8-16 HEX FLANGE NUT W/SERR ZINC YELLOW

$

$

Currently unavailable

7

Toro 515-0038

WASHER-FLAT

$

$

Currently unavailable

8

Toro 1-803038

NUT-WING

$1.49

$

In Stock, Qty 5

0

9

Toro 486-0006-00

HEAVY DUTY START SOLENOID

$

$

Currently unavailable

10

Toro 486-0017-00

MWR NEGATIVE CABLE 28

$

$

Currently unavailable

11

Toro 486-0018-00

MWR START WIRE 12

$

$

Currently unavailable

12

Toro 677-2075-00

12 VOLT AUXILLIARY PLUG

$

$

Currently unavailable

13

Toro 486-0016-00

MWR POSITIVE BATTERY CABLE 25IN

$

$

Currently unavailable

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, Qty 7

0

17

Toro 413-0012-00

1/4-20 HEX FLANGE NUT

$

$

Currently unavailable

18

Toro 486-0060-00

PTO SWITCH

$

$

Currently unavailable

19

Toro 486-0062-00

IGNITION SWITCH

$

$

Currently unavailable

20

Toro 486-0065-00

2023 MWR KEY

$

$

Currently unavailable

21

Toro 436-0002-00

3.15 LGTH STRAIGHT INSUL TERM COVER RED

$

$

Currently unavailable

22

Toro 436-0003-00

STRAIGHT INSULATING TERMINAL COVER

$

$

Currently unavailable

23

Toro 120-9551

SCREW-HWH

$

$

Currently unavailable

24

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

25

Toro 148-0824

HARNESS-WIRE

$

$

Currently unavailable

26

Toro 148-1063

HOUR METER

$

$

Currently unavailable

27

Toro 472-0001-00

1-1/4IN CUSHIONED LOOP CLAMP BLACK

$

$

Currently unavailable
