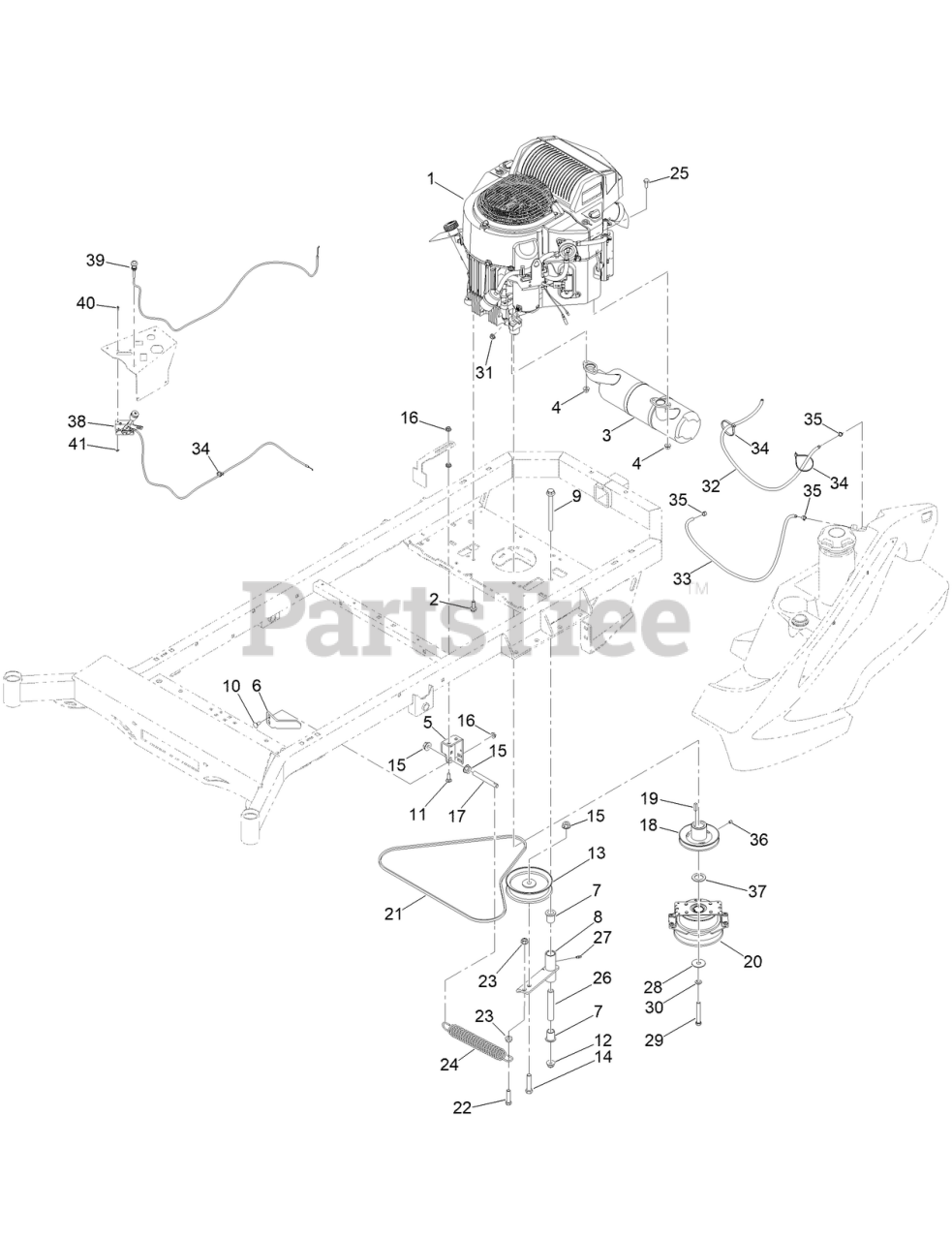

RZ HD (RSZL1160FR730) - Spartan 60" Zero-Turn Mower (SN: 400000000 - 999999999) Engine Assembly Parts Diagram

60" Zero-Turn Mower

Engine Assembly Parts Diagram

  • Title

1

Toro 415-0003-00

KAWASAKI FR730V-DS27-R ENGN

$

$

Currently unavailable

2

Toro 418-0023-00

3/8-16 X 1-1/8 IND HWH W/SERR TRI LOB ZY

$

$

Currently unavailable

3

Toro 415-0074-00

2019 EXHAUST SYST FOR KAWI FR FS AND FT

$

$

Currently unavailable

4

Toro 104-2612

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

5

Toro 439-0244-00-05

MWR PUMP IDLER TENSIONING BRKT BLACK

$

$

Currently unavailable

6

Toro 439-0493-00-05

2021 TTQ MOWER OGURA CLUTCH BRACKET

$

$

Currently unavailable

7

Toro 410-0007-00

3/4IN ID X15/16IN OD X 1-1/8IN FLNG BUSH

$

$

Currently unavailable

8

Toro 490-0018-00-05

MWR PUMP IDLER ASSY BLACK

$

$

Currently unavailable

9

Toro 418-0009-00

1/2-13 X 5-1/2 HEX FLANGE BOLT GR 8 ZY

$

$

Currently unavailable

10

Toro 418-0008-00

BOLT-CARR

$

$

Currently unavailable

11

Toro 418-0062-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZC/YEL

$

$

Currently unavailable

12

Toro 413-0002-00

NUT-LOCK

$

$

Currently unavailable

13

Toro 433-0013-00

5-3/4IN IDLER PULLEY 7/16IN SPACER ASSY

$

$

Currently unavailable

14

Toro 325-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

15

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

16

Toro 413-0022-00

NUT-HF

$

$

Currently unavailable

17

Toro 430-0001-00

MWR PUMP IDLER SPRING TENSIONER

$

$

Currently unavailable

18

Toro 433-0001-00

MWR HYDRAULIC PUMP DRIVE PULLEYA BELT

$

$

Currently unavailable

19

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

20

Toro 470-0004-00

MWR TTQ OGURA CLUTCH

$

$

Currently unavailable

21

Toro 461-0004-00

MWR PUMP BELT RT A X 68.25IN EFF LNGTH

$

$

Currently unavailable

22

Toro 418-0013-00

BOLT-HH

$

$

Currently unavailable

23

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

24

Toro 434-0007-00

MWR DECK SPRING

$

$

Currently unavailable

25

Toro 418-0278-00

M8-1.25 X 20MM HEX FLANGE BOLT ZINC 10.9

$

$

Currently unavailable

26

Toro 425-0006-00

MWR INNER IDLER SPACER

$

$

Currently unavailable

27

Toro 424-0002-00

1/4IN DRIVE TYPE GREASE FITTING YZ

$

$

Currently unavailable

28

Toro 419-0001-00

1/2IN X 1-5/8 BELLEVILLE CUP WASHER YZ

$

$

Currently unavailable

29

Toro 418-0223-00

TTQ CLUTCH BOLT

$

$

Currently unavailable

30

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Toro 413-0012-00

1/4-20 HEX FLANGE NUT

$

$

Currently unavailable

32

Toro 451-0002-00

MWR FUEL TANK BLACK 3/16IN VENT TUBE 1FT

$

$

Currently unavailable

33

Toro 751-1014-00

1/4IN SAE J30R7 BULK HOSE 1FT

$

$

Currently unavailable

34

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

35

Toro 472-0004-00

1/2IN (#8) HOSE CLAMP

$

$

Currently unavailable

36

Toro 418-0280-00

5/16-18 X 3/8 SOCKET SET SCREW

$

$

Currently unavailable

37

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

38

Toro 464-0001-00

MWR THROTTLE CABLE ASSY W / HANDLE

$

$

Currently unavailable

39

Toro 464-0002-00

MWR CHOKE CABLE ASSM

$

$

Currently unavailable

40

Toro 418-0055-00

10-24 X 1/2 SOCKET C/S 18-8 SS

$

$

Currently unavailable

41

Toro 110-3145

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0
