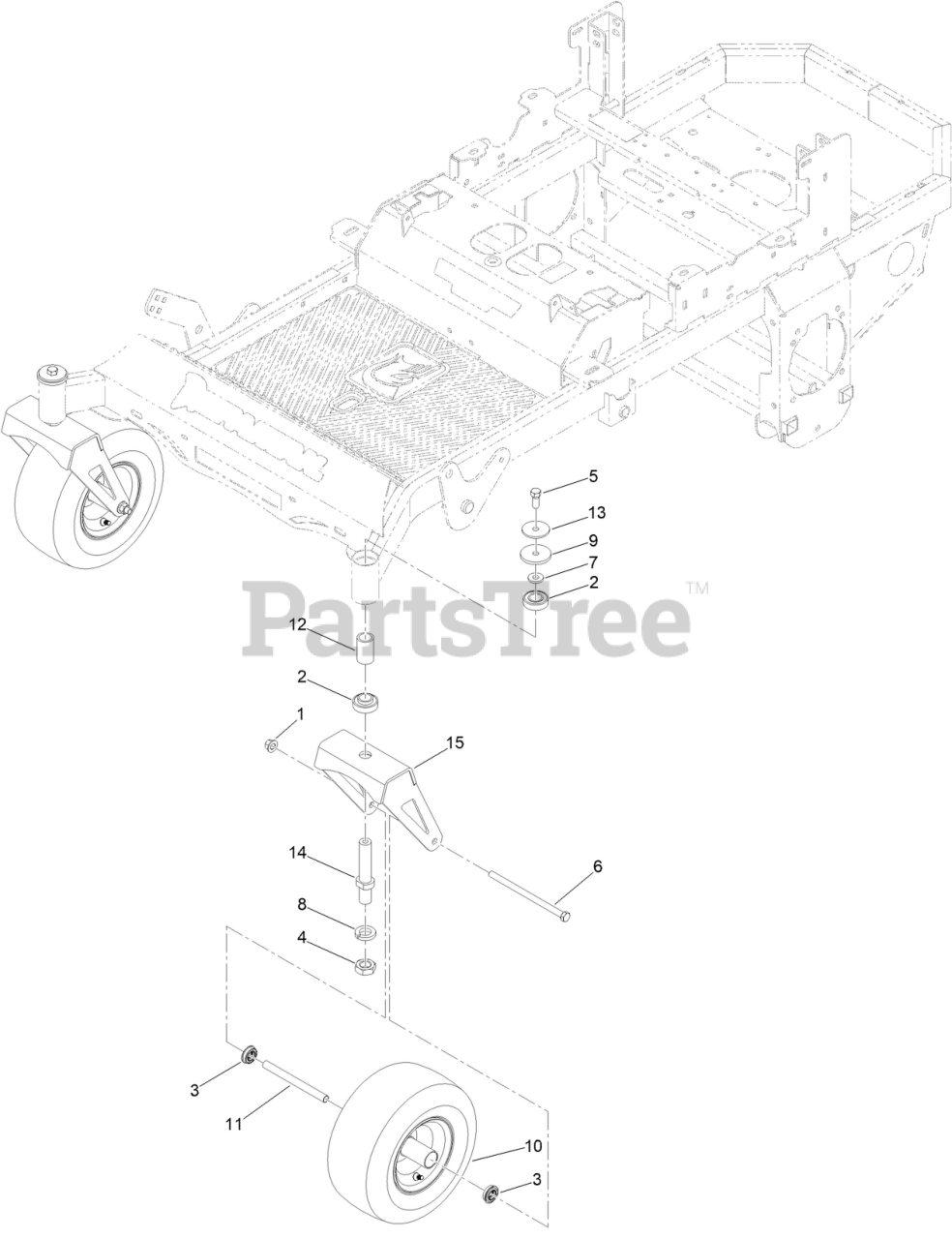

RZ HD (SZHD148691KR) - Spartan 48" Zero-Turn Mower Caster Tire Assembly Parts Diagram

48" Zero-Turn Mower

Caster Tire Assembly Parts Diagram

  • Title

1

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

2

Toro 103-3540

BEARING-BALL

$76.99

$

In Stock, only 4 left!

0

3

Toro 410-0018-00

RZ FT WHEEL BEARING

$

$

Currently unavailable

4

Toro 413-0063-00

NUT-HEX

$

$

Currently unavailable

5

Toro 418-0002-00

1/2-20 X 1-1/4 HEX FLANGE BOLT GR 8 YZ

$

$

Currently unavailable

6

Toro 418-0003-00

1/2-13 X 8-1/2 HEX C/S GR 5 ZINC YELLOW

$

$

Currently unavailable

7

Toro 419-0003-00

1/2 FENDER WASHER 1-1/4IN OD ZINC

$

$

Currently unavailable

8

Toro 419-0024-00

1IN L/W MED SPLIT ZC

$

$

Currently unavailable

9

Toro 419-0025-00

FT HUB PLASTIC WASHER

$

$

Currently unavailable

10

Toro 422-0027-00

RZ/RT PRO FT TIRE ASSY-SMOOTH TREAD

$

$

Currently unavailable

11

Toro 425-0010-00

MWR FT WHEEL SPANNER

$

$

Currently unavailable

12

Toro 425-0011-00

CASTER FORK SHAFT BEARING SPACER

$

$

Currently unavailable

13

Toro 426-0006-00-P11

MWR CASTER SHAFT WASHER

$

$

Currently unavailable

14

Toro 437-0019-00

MWR CASTER SHAFT

$

$

Currently unavailable

15

Toro 490-0046-00-P11

RZ CASTER FORK ASM

$

$

Currently unavailable
