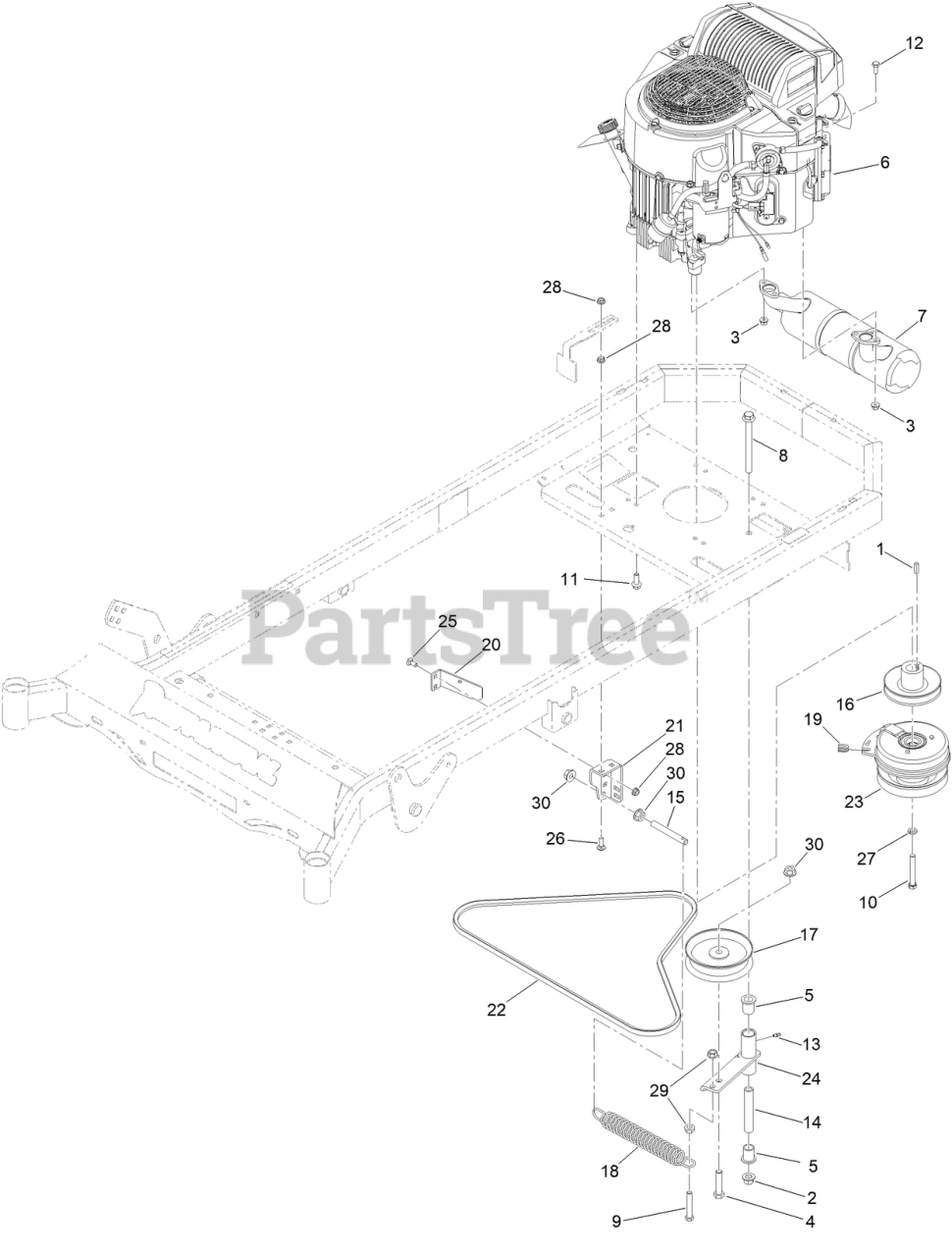

RZ HD (SZHDB61730KR) - Spartan 61" Zero-Turn Mower Engine Assembly Parts Diagram

61" Zero-Turn Mower

Engine Assembly Parts Diagram

  • Title

1

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

2

Toro 413-0002-00

NUT-LOCK

$

$

Currently unavailable

3

Toro 104-2612

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

4

Toro 325-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

5

Toro 410-0007-00

3/4IN ID X15/16IN OD X 1-1/8IN FLNG BUSH

$

$

Currently unavailable

6

Toro 415-0003-00

KAWASAKI FR730V-DS27-R ENGN

$

$

Currently unavailable

7

Toro 415-0074-00

2019 EXHAUST SYST FOR KAWI FR FS AND FT

$

$

Currently unavailable

8

Toro 418-0009-00

1/2-13 X 5-1/2 HEX FLANGE BOLT GR 8 ZY

$

$

Currently unavailable

9

Toro 418-0013-00

BOLT-HH

$

$

Currently unavailable

10

Toro 418-0022-00

7/16-20 X 3 HEX C/S GR 8 ZC YELLOW

$

$

Currently unavailable

11

Toro 418-0023-00

3/8-16 X 1-1/8 IND HWH W/SERR TRI LOB ZY

$

$

Currently unavailable

12

Toro 418-0278-00

M8-1.25 X 20MM HEX FLANGE BOLT ZINC 10.9

$

$

Currently unavailable

13

Toro 424-0002-00

1/4IN DRIVE TYPE GREASE FITTING YZ

$

$

Currently unavailable

14

Toro 425-0006-00

MWR INNER IDLER SPACER

$

$

Currently unavailable

15

Toro 430-0001-00

MWR PUMP IDLER SPRING TENSIONER

$

$

Currently unavailable

16

Toro 433-0002-00

MWR HYDRAULIC PUMP DRIVE PULLEY (B-BELT)

$

$

Currently unavailable

17

Toro 433-0013-00

5-3/4IN IDLER PULLEY 7/16IN SPACER ASSY

$

$

Currently unavailable

18

Toro 434-0007-00

MWR DECK SPRING

$

$

Currently unavailable

19

Toro 437-0025-00

MWR CLUTCH ROTATION STOP BRKT SLEEVE

$

$

Currently unavailable

20

Toro 439-0132-00-05

MWR CLUTCH ANTIROTATION BRKT BLACK

$

$

Currently unavailable

21

Toro 439-0244-00-05

MWR PUMP IDLER TENSIONING BRKT BLACK

$

$

Currently unavailable

22

Toro 461-0004-00

MWR PUMP BELT RT A X 68.25IN EFF LNGTH

$

$

Currently unavailable

23

Toro 470-0002-00

WARNER PTO CLUTCH

$

$

Currently unavailable

24

Toro 490-0018-00-05

MWR PUMP IDLER ASSY BLACK

$

$

Currently unavailable

25

Toro 418-0008-00

BOLT-CARR

$

$

Currently unavailable

26

Toro 418-0010-00

BOLT-CARR

$

$

Currently unavailable

27

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 413-0022-00

NUT-HF

$

$

Currently unavailable

29

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

30

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0
