RZ HD (SZHDB61730KR) - Spartan 61" Zero-Turn Mower Transmission Assembly Parts Diagram

61" Zero-Turn Mower

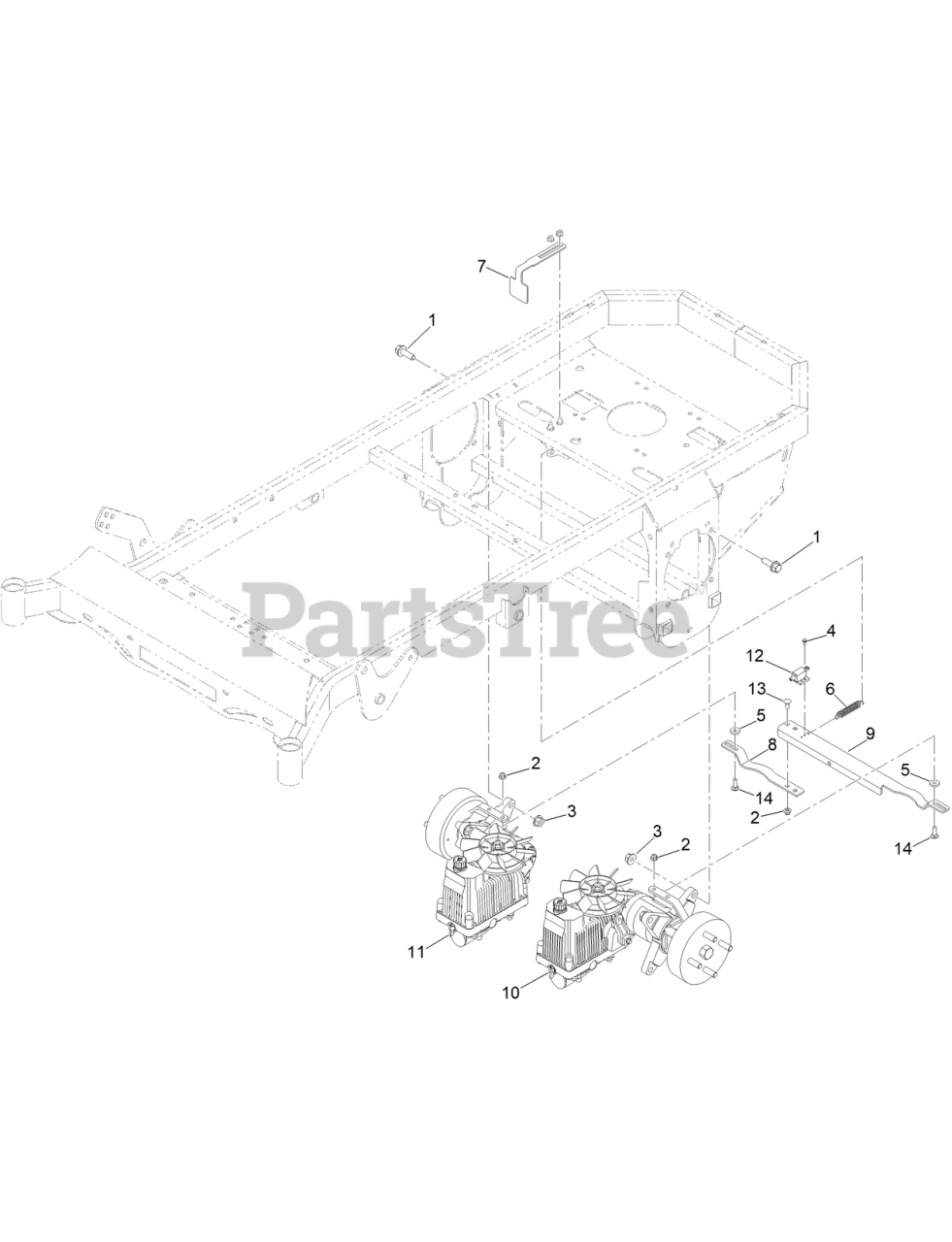

Transmission Assembly Parts Diagram

  • Title

1

Toro 100-6116

SCREW-HHF

$9.99

$

Usually ships in 3-6 days

0

2

Toro 413-0027-00

NUT-HF, NI

$

$

Currently unavailable

3

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

4

Toro 418-0032-00

8-32 X 1/2 IND. HWH SLOT TYPE F TCS ZINC

$

$

Currently unavailable

5

Toro 419-0006-00

.312 ID X .875OD X .1875 THK F/W NYL

$

$

Currently unavailable

6

Toro 434-0003-00

MWR BRAKE PEDAL RELEASE SPRING

$

$

Currently unavailable

7

Toro 439-0066-00-05

STAND TRANSM BRAKE INTERLOCK BRKT BLACK

$

$

Currently unavailable

8

Toro 439-0606-00-05

MWR PARK BRAKE BRKT RT PAINTED

$

$

Currently unavailable

9

Toro 439-0607-00-05

MWR PARK BRAKE BRKT LT PAINTD BLACK

$

$

Currently unavailable

10

Toro 450-0009-00

HTE10 LT SIDE HYDROST TRANSM FOR RZ HUB

$

$

Currently unavailable

11

Toro 450-0010-00

HTE10 RT SIDE HYDROST TRANSM FOR RZ HUB

$

$

Currently unavailable

12

Toro 486-0030-00

NO PLUNGER LIMIT SWITCH

$

$

Currently unavailable

13

Toro 418-0008-00

BOLT-CARR

$

$

Currently unavailable

14

Toro 418-0010-00

BOLT-CARR

$

$

Currently unavailable
