RZ Pro (SZPR254691KR) - Spartan 54" Zero-Turn Mower Decklift Assembly Parts Diagram

54" Zero-Turn Mower

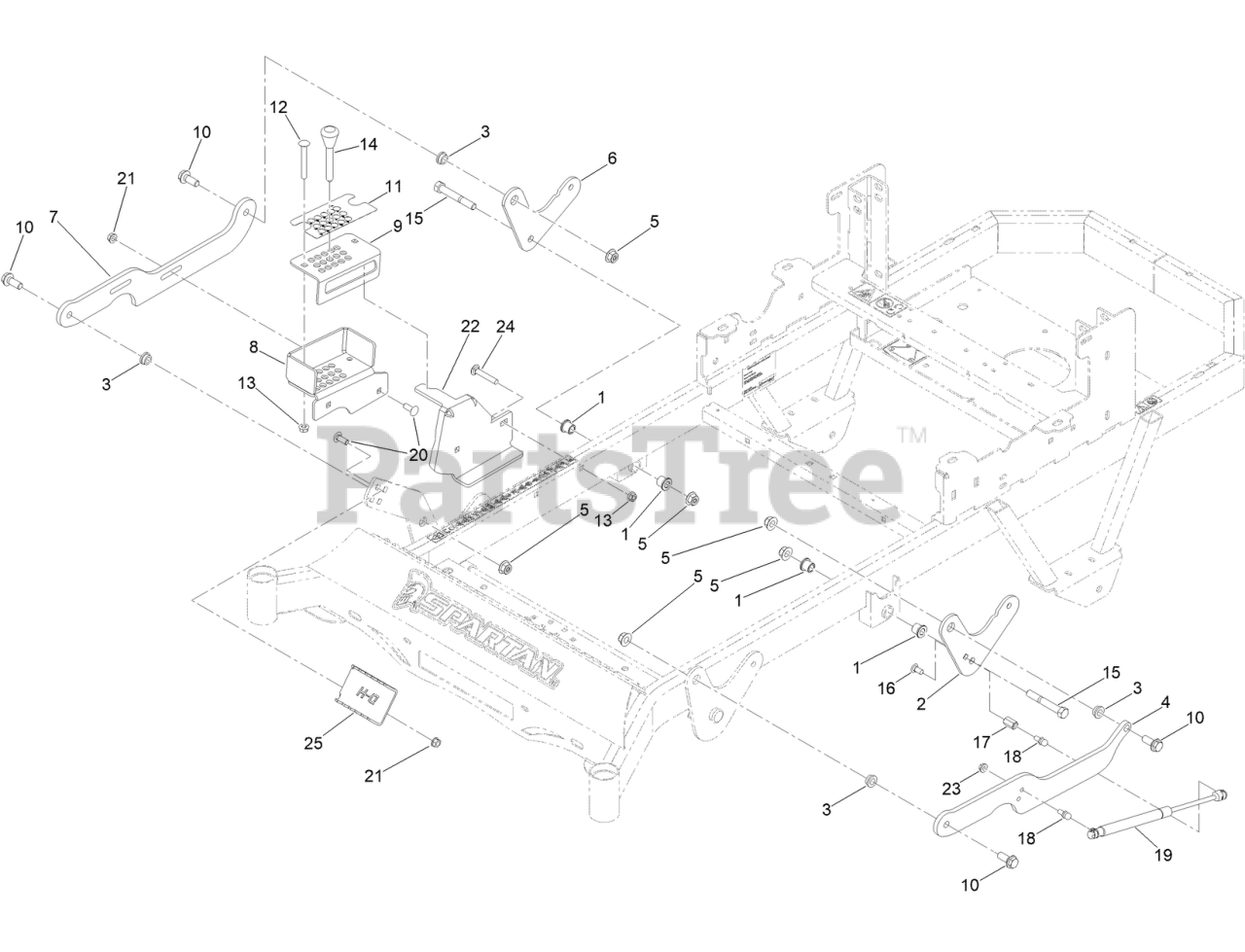

Decklift Assembly Parts Diagram

  • Title

1

Toro 135-5694

BUSHING-FLANGE

$3.99

$

Usually ships in 3-6 days

0

2

Toro 148-0421-P11

ARM-DECKLIFT REAR (1/4")

$

$

Currently unavailable

3

Toro 410-0009-00

1/2IN ID X 3/4IN OD X 3/8IN FLANGE BUSH

$

$

Currently unavailable

4

Toro 148-0416-P11

LINK-DECKLIFT

$

$

Currently unavailable

5

Toro 413-1005-00

1/2-13 HEX FLANGE 2-WAY REV CNTR L/NYZ

$

$

Currently unavailable

6

Toro 148-0419-P11

ARM-DECKLIFT REAR (1/4")

$

$

Currently unavailable

7

Toro 148-0251-P11

2024 DECK HEIGHT ARM RT LINK

$

$

Currently unavailable

8

Toro 148-0425-P11

BRACKET PIN SYSTEM (BOTTOM) PAINTED GREY

$

$

Currently unavailable

9

Toro 439-0753-00-P11

2022 DHI PIN ARM LINK TOP BRKT

$

$

Currently unavailable

10

Toro 148-0095

1/2-13X1.25IN HEX FLANGE BOLT (GR.8) YZ

$

$

Currently unavailable

11

Toro 148-0428

DECAL-HEIGHT OF CUT

$

$

Currently unavailable

12

Toro 418-0095-05

(3/8-16 X 3 CARRIAGE BOLT (GR.5) ZC/YEL)

$

$

Currently unavailable

13

Toro 413-0029-00

NUT-HEX

$

$

Currently unavailable

14

Toro 420-0009-00

MAGNETIC PIN FOR STAND ON MWR

$

$

Currently unavailable

15

Toro 418-0042-00

1/2-13 X 3-1/2 HEX C/S GR 5 ZINC YELLOW

$

$

Currently unavailable

16

Toro 618-2068-00

3/8 X 3/4IN GR 8 CARR BOLT ZINC

$

$

Currently unavailable

17

Toro 148-0422

HEX COUPLING NUT - REDUCER (3/8" TO 5/16

$

$

Currently unavailable

18

Toro 487-0005-00

5/16-18X1.286 DAMPER BALL STUD (.562 TL)

$

$

Currently unavailable

19

Toro 434-0008-00

RZ DECK ASSIST GAS SPRING

$

$

Currently unavailable

20

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22

Toro 439-0752-00-P11

2022 DECK LOCK PIN TUBE BRKT

$

$

Currently unavailable

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro 618-2023-00

SCREW-CARR

$

$

Currently unavailable

25

Toro 439-0059-00-P11

MWR DECK HEIGHT FOOT PEDAL PAINT

$

$

Currently unavailable
