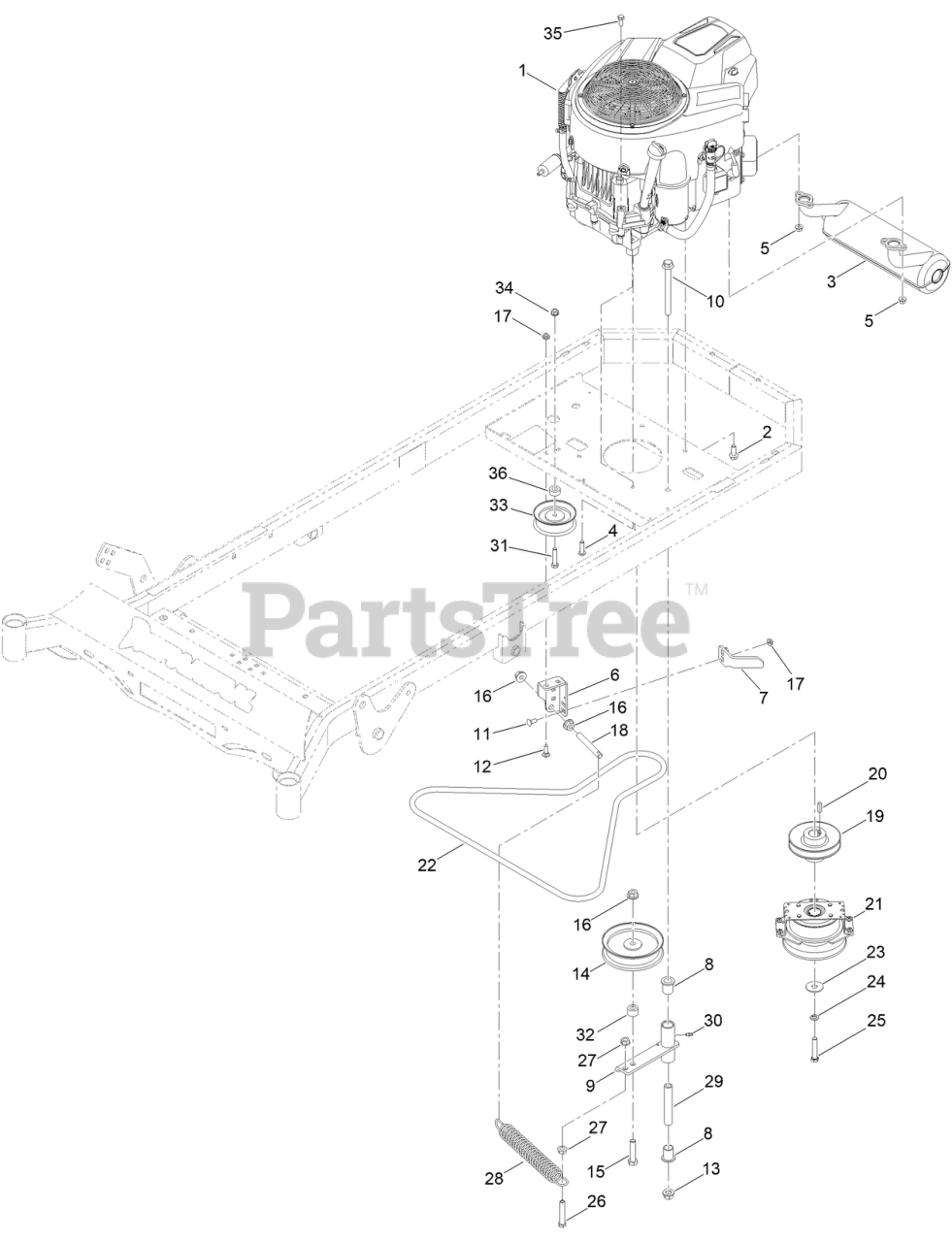

RZ Pro (SZPR261724BX) - Spartan 61" Zero-Turn Mower Engine Assembly Parts Diagram

61" Zero-Turn Mower

Engine Assembly Parts Diagram

  • Title

1

Toro 415-0099-00

25HP BRIGGS CXI ENGN

$

$

Currently unavailable

2

Toro 418-0023-00

3/8-16 X 1-1/8 IND HWH W/SERR TRI LOB ZY

$

$

Currently unavailable

3

Toro 415-0052-00

EXHAUST SYST BRIGGS 25/ 27HP ENGNS

$

$

Currently unavailable

4

Toro 418-0224-00

3/8-16 X 1-1/4 PAN TORX (TRI-LOB) TRS ZC

$

$

Currently unavailable

5

Toro 104-2612

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

6

Toro 439-0244-00-P11

MWR PUMP IDLER TENSIONING BRKTPAINTED

$

$

Currently unavailable

7

Toro 439-0493-00-P11

2021 TTQ MWR OGURA CLUTCH BRKT PAINT

$

$

Currently unavailable

8

Toro 410-0007-00

3/4IN ID X15/16IN OD X 1-1/8IN FLNG BUSH

$

$

Currently unavailable

9

Toro 490-0018-00-P11

MWR PUMP IDLER ASSY PAINTED

$

$

Currently unavailable

10

Toro 418-0009-00

1/2-13 X 5-1/2 HEX FLANGE BOLT GR 8 ZY

$

$

Currently unavailable

11

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

14

Toro 433-0013-00

5-3/4IN IDLER PULLEY 7/16IN SPACER ASSY

$

$

Currently unavailable

15

Toro 418-0050-00

1/2-13 X 3 HEX C/S GR 5 ZINC W/LOCTITE

$

$

Currently unavailable

16

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

17

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 430-0001-00

MWR PUMP IDLER SPRING TENSIONER

$

$

Currently unavailable

19

Toro 433-0002-00

MWR HYDRAULIC PUMP DRIVE PULLEY (B-BELT)

$

$

Currently unavailable

20

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

21

Toro 470-0004-00

MWR TTQ OGURA CLUTCH

$

$

Currently unavailable

22

Toro 461-0015-00

MWR TTQ PUMP BELT

$

$

Currently unavailable

23

Toro 419-0001-00

1/2IN X 1-5/8 BELLEVILLE CUP WASHER YZ

$

$

Currently unavailable

24

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 418-0223-00

TTQ CLUTCH BOLT

$

$

Currently unavailable

26

Toro 418-0013-00

BOLT-HH

$

$

Currently unavailable

27

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

28

Toro 434-0007-00

MWR DECK SPRING

$

$

Currently unavailable

29

Toro 425-0006-00

MWR INNER IDLER SPACER

$

$

Currently unavailable

30

Toro 424-0002-00

1/4IN DRIVE TYPE GREASE FITTING YZ

$

$

Currently unavailable

31

Toro 323-52

SCREW-HH

$4.99

$

In Stock, Qty 12

0

32

Toro 425-0027-00

.530 ID/ 1IN OD X .625 PUMP IDLER SPACER

$

$

Currently unavailable

33

Toro 433-0012-00

4IN DIESEL AND ECONOMY MWER IDLER PULLEY

$

$

Currently unavailable

34

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

35

Toro 418-0278-00

M8-1.25 X 20MM HEX FLANGE BOLT ZINC 10.9

$

$

Currently unavailable

36

Toro 425-0007-00

MWR PULLEY SPACER

$

$

Currently unavailable
