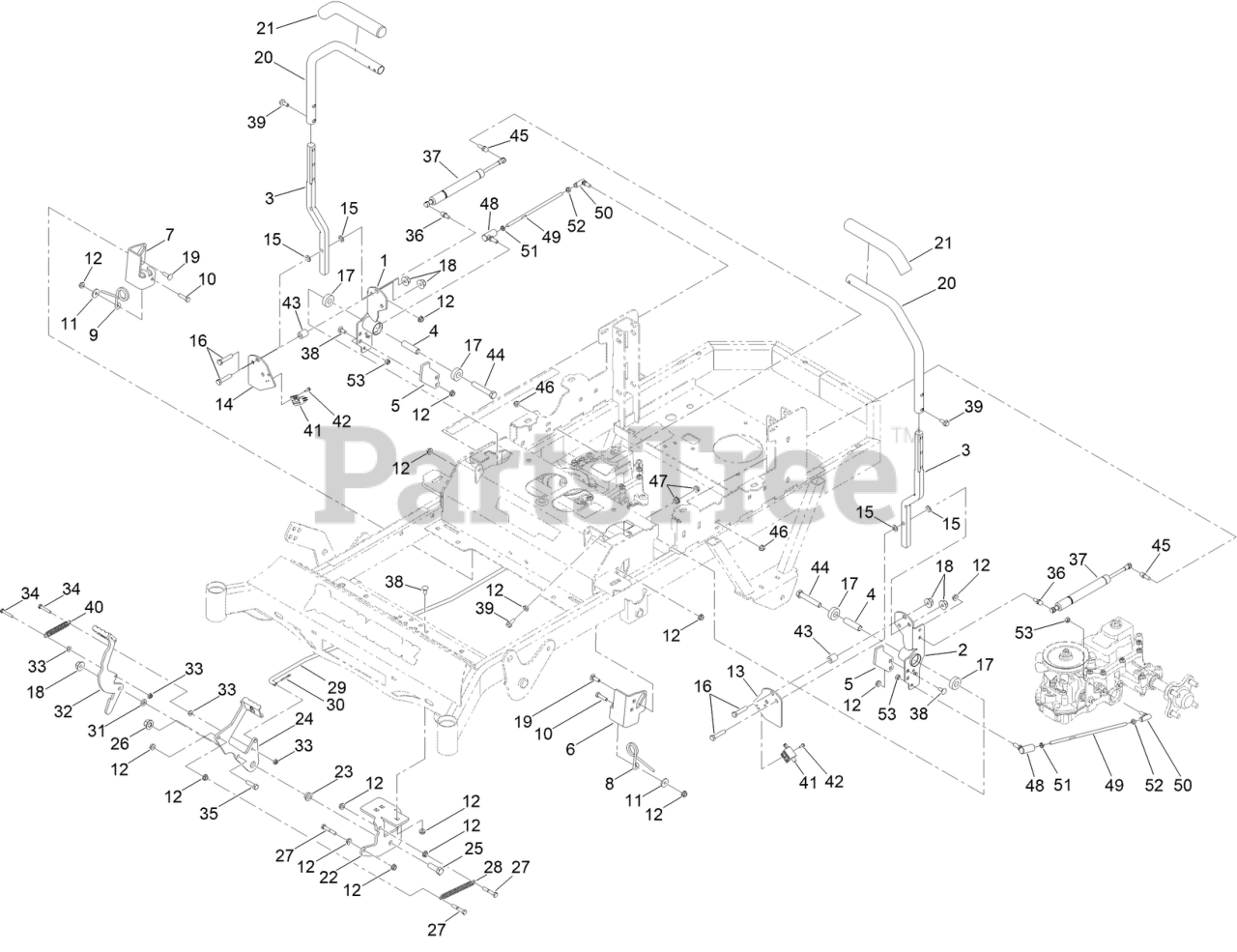

RZ Pro (SZPR261724BX) - Spartan 61" Zero-Turn Mower Motion Control and Parking Brake Assembly Parts Diagram

61" Zero-Turn Mower

Motion Control and Parking Brake Assembly Parts Diagram

  • Title

1

Toro 148-0245-P11

MOTION CONTROL BRKT

$

$

Currently unavailable

2

Toro 148-0246-P11

MOTION CONTROL BRKT

$

$

Currently unavailable

3

Toro 431-0001-00

HEIGHT ADJUSTABLE CONTROL ARM

$

$

Currently unavailable

4

Toro 425-0004-00

MWR DRIVE ARM HUB / DECK LIFT ARM SPACER

$

$

Currently unavailable

5

Toro 148-0185-P11

REVERSE DETENT KICK PLATE

$

$

Currently unavailable

6

Toro 148-0187-P11

REVERSE DENTENT SPRING BASE (LH)

$

$

Currently unavailable

7

Toro 148-0186-P11

REVERSE DENTENT SPRING BASE (RH)

$

$

Currently unavailable

8

Toro 148-0262

SPRING- LT REVERSE DETENT

$

$

Currently unavailable

9

Toro 138-7539

SPRING-TORSION

$7.49

$

Usually ships in 3-6 days

0

10

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

11

Toro 619-4004-00

STRIKER POST FENDER WASHER

$

$

Currently unavailable

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 426-0002-00-P11

LT CONTROL ARM LIMIT SWITCH PLATE PAINT

$

$

Currently unavailable

14

Toro 426-0003-00-P11

RT CONTROL ARM LIMIT SWITCH PLATE PAINT

$

$

Currently unavailable

15

Toro 410-0011-00

3/8 X 3/4 BRONZE WASHER

$

$

Currently unavailable

16

Toro 418-0051-00

3/8-16 X 1-3/4 HEX C/S GR 2 ZINC

$

$

Currently unavailable

17

Toro 410-0005-00

5/8IN ID X 1-3/8IN OD X 7/16IN THK BRG

$

$

Currently unavailable

18

Toro 413-0013-00

3/8-16 NYLON INSERT FLANGE L/NUT YZ

$

$

Currently unavailable

19

Toro 418-0060-00

5/16-18 X 1 CARRIAGE BOLT GR 8 YZ

$

$

Currently unavailable

20

Toro 403-0020-10-P11

MOWER DRIVE HANDLE TUBE ABC

$

$

Currently unavailable

21

Toro 484-0001-00

CONTROL ARM HANDLE GRIP

$

$

Currently unavailable

22

Toro 439-0009-00-P11

MWR FRAME BRAKE MTG BRKT PAINT

$

$

Currently unavailable

23

Toro 410-0009-00

1/2IN ID X 3/4IN OD X 3/8IN FLANGE BUSH

$

$

Currently unavailable

24

Toro 490-0016-00-P11

MWR BRAKE LOCK LEVER ASSY PAINTED

$

$

Currently unavailable

25

Toro 139-2631

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

26

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

27

Toro 418-0027-00

BOLT-HH

$

$

Currently unavailable

28

Toro 434-0015-00

2020 MWR BRAKE PEDAL TENSION SPRING

$

$

Currently unavailable

29

Toro 435-0004-00

MWR BRAKE LINKAGE

$

$

Currently unavailable

30

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 6

0

31

Toro 413-0052-00

3/8 ID X 3/4 OD X .125 THK BRONZE WASHER

$

$

Currently unavailable

32

Toro 490-0017-00-P11

MWR BRAKE UNLOCK LEVER ASSY PAINTED

$

$

Currently unavailable

33

Toro 413-0012-00

1/4-20 HEX FLANGE NUT

$

$

Currently unavailable

34

Toro 418-0029-00

1/4-20 X 1-1/4 HEX C/S GR 2 ZINC

$

$

Currently unavailable

35

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

36

Toro 487-0005-00

5/16-18X1.286 DAMPER BALL STUD (.562 TL)

$

$

Currently unavailable

37

Toro 487-0001-00

CONTROL ARM DAMPER

$

$

Currently unavailable

38

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

39

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

40

Toro 434-0003-00

MWR BRAKE PEDAL RELEASE SPRING

$

$

Currently unavailable

41

Toro 486-0030-00

NO PLUNGER LIMIT SWITCH

$

$

Currently unavailable

42

Toro 418-0032-00

8-32 X 1/2 IND. HWH SLOT TYPE F TCS ZINC

$

$

Currently unavailable

43

Toro 425-0003-00

MWR DRIVE ARM SPACER

$

$

Currently unavailable

44

Toro 418-0050-00

1/2-13 X 3 HEX C/S GR 5 ZINC W/LOCTITE

$

$

Currently unavailable

45

Toro 487-0008-00

5/16-18X1.286 DAMPER BALL STUD (.562 TL)

$

$

Currently unavailable

46

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

47

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

48

Toro 410-0002-00

CONTROL ARM ROD END LT

$

$

Currently unavailable

49

Toro 435-0020-00

MWR DRIVE ARM ROD TTQ 400 + 300 TRANS

$

$

Currently unavailable

50

Toro 2411-33

BALLJOINT-RH (W/GROMMET)

$27.99

$

Usually ships in 3-6 days

0

51

Toro 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

52

Toro 09207

NUT

$

$

Currently unavailable

53

Toro 148-0178

5/16-24 NYL INS L/N GR.8 ZC/YEL

$

$

Currently unavailable
