RZ Pro (SZPR261730KR) - Spartan 61" Zero-Turn Mower Seat Suspension Assembly Parts Diagram

61" Zero-Turn Mower

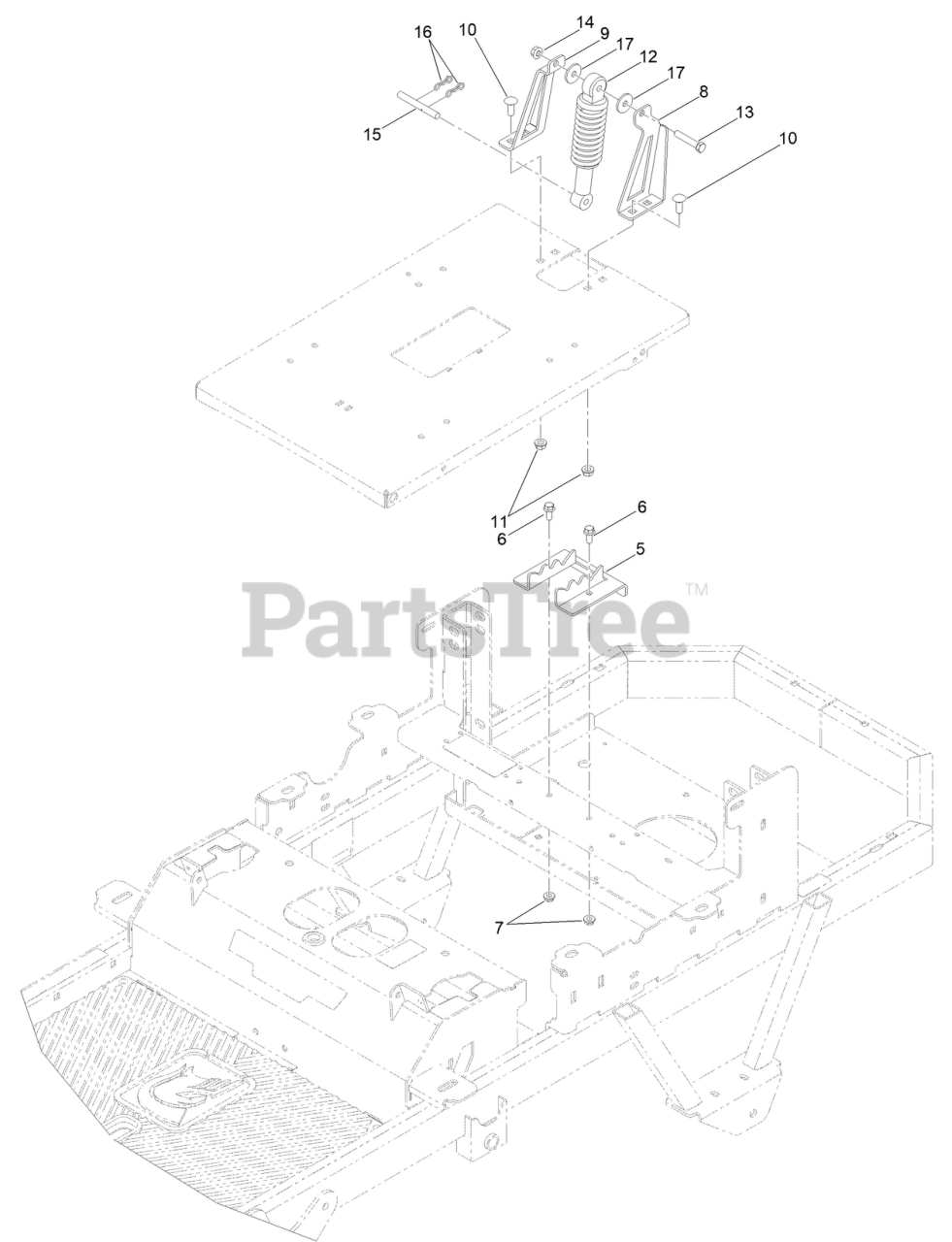

Seat Suspension Assembly Parts Diagram

  • Title

5

Toro 439-0429-00-P11

RZ MWR SEAT SHOCK LWR MOUNT BRKT PAINT

$

$

Currently unavailable

6

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

7

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 439-0427-00-P11

RZ MWR SEAT SHOCK UPP MNT BRKT LT PAINT

$

$

Currently unavailable

9

Toro 439-0428-00-P11

RZ MWR SEAT SHOCK UPP MNT BRKT RT PAINT

$

$

Currently unavailable

10

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 487-0009-00

2020 RZ PRO SEAT / FT FORK SHOCK

$

$

Currently unavailable

13

Toro 418-0113-00

3/8-16 X 2 HEX BOLT GR 5 ZINC YELLOW

$

$

Currently unavailable

14

Toro 413-0029-00

NUT-HEX

$

$

Currently unavailable

15

Toro 444-0004-00

RZ MWR SEAT SHOCK 10MM PIN

$

$

Currently unavailable

16

Toro 420-0005-00

.073 DIA X 1-7/16IN HAIRPIN COTTER ZINC

$

$

Currently unavailable

17

Toro 419-0028-00

FLT WASHER 1.25ODX.38IDX.125 THK PLA

$

$

Currently unavailable
