RZ XD HD (RSZL2148FX730) - Spartan 48" Zero-Turn Mower (SN: 400000000 - 999999999) Seat Assembly Parts Diagram

48" Zero-Turn Mower

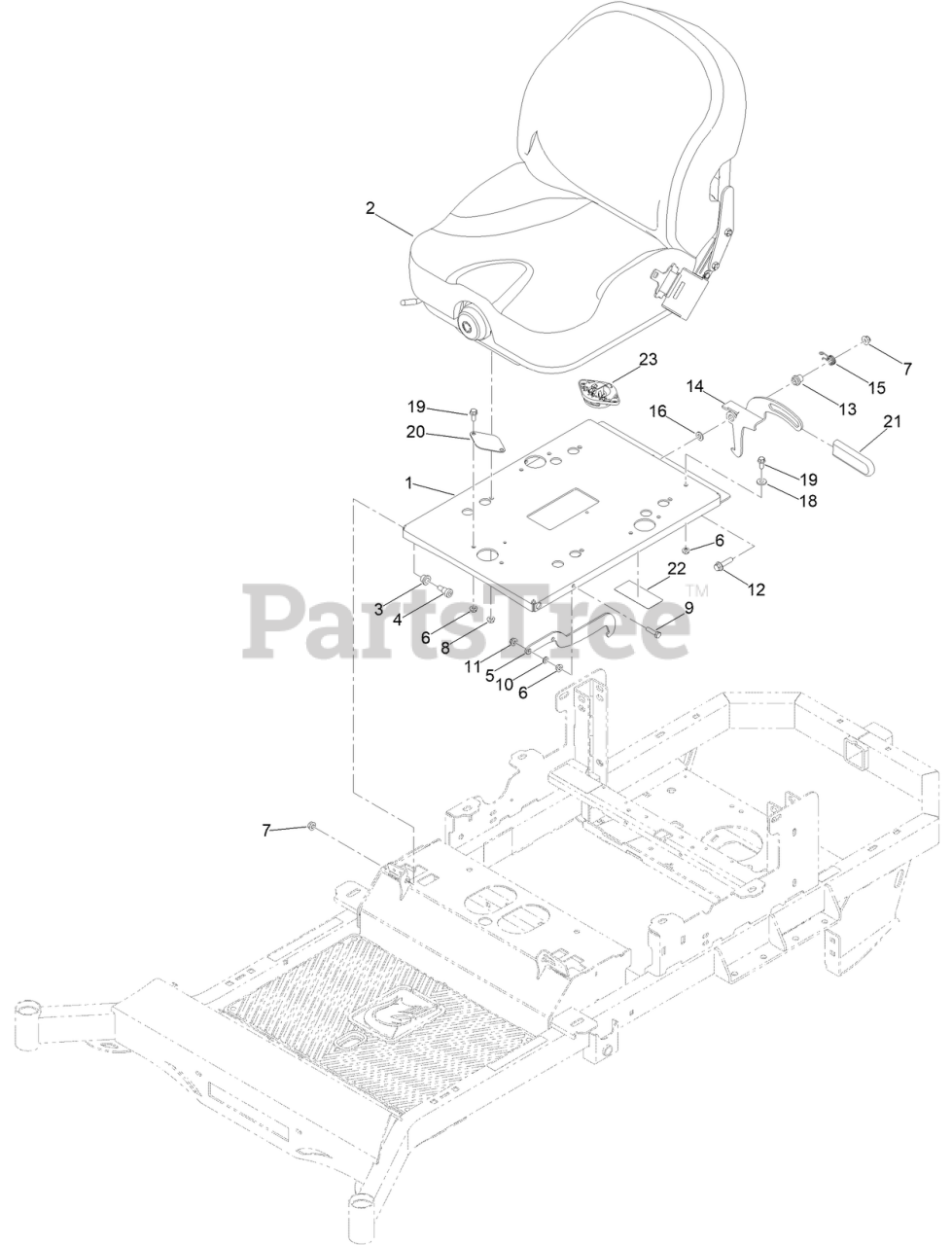

Seat Assembly Parts Diagram

  • Title

1

Toro 148-1047

NON 360 SEAT BASE PLATE SAFTY DECAL ASM-

$

$

Currently unavailable

2

Toro 471-0015-00

2019 FULL SUSP SEAT

$

$

Currently unavailable

3

Toro 410-0010-00

1/2IN ID X 5/8IN OD X 1/2IN FLANGE BUSH

$

$

Currently unavailable

4

Toro 418-0038-00

1/2 X 1/2 SOCKET SHOULDER BOLT ZC YELLOW

$

$

Currently unavailable

5

Toro 439-0065-00-P11

MWR SEAT LATCH HOOK PAINT

$

$

Currently unavailable

6

Toro 413-0022-00

NUT-HF

$

$

Currently unavailable

7

Toro 413-0029-00

NUT-HEX

$

$

Currently unavailable

8

Toro 413-0019-00

5/16-18 NYLON INSERT FLANGE L/NUT ZC

$

$

Currently unavailable

9

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

10

Toro 413-0016-00

.312IDX.625ODX.062 THK THRUST BRG OI BRZ

$

$

Currently unavailable

11

Toro 413-0027-00

NUT-HF, NI

$

$

Currently unavailable

12

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

13

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

In Stock, only 1 left!

0

14

Toro 148-0953

BRACKET-LATCH

$

$

Currently unavailable

15

Toro 126-8923

SPRING-TORSION, LATCH

$2.99

$

Usually ships in 3-6 days

0

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 419-0006-00

.312 ID X .875OD X .1875 THK F/W NYL

$

$

Currently unavailable

19

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

20

Toro 426-0241-00-P11

2020 RT/SRT UNIV FLOAT SEAT CVR PLT

$

$

Currently unavailable

21

Toro 484-0002-00

STAND UP MWR BRAKE ARM GRIP

$

$

Currently unavailable

22

Toro 125-8473

DECAL-WARNING, BATTERY

$

$

Currently unavailable

23

Toro 486-0036-00

MWR SEAT SWITCH

$

$

Currently unavailable
