RZ XD (RSZB3160FX801) - Spartan 60" Zero-Turn Mower (SN: 400000000 - 999999999) Body Styling Assembly Parts Diagram

60" Zero-Turn Mower

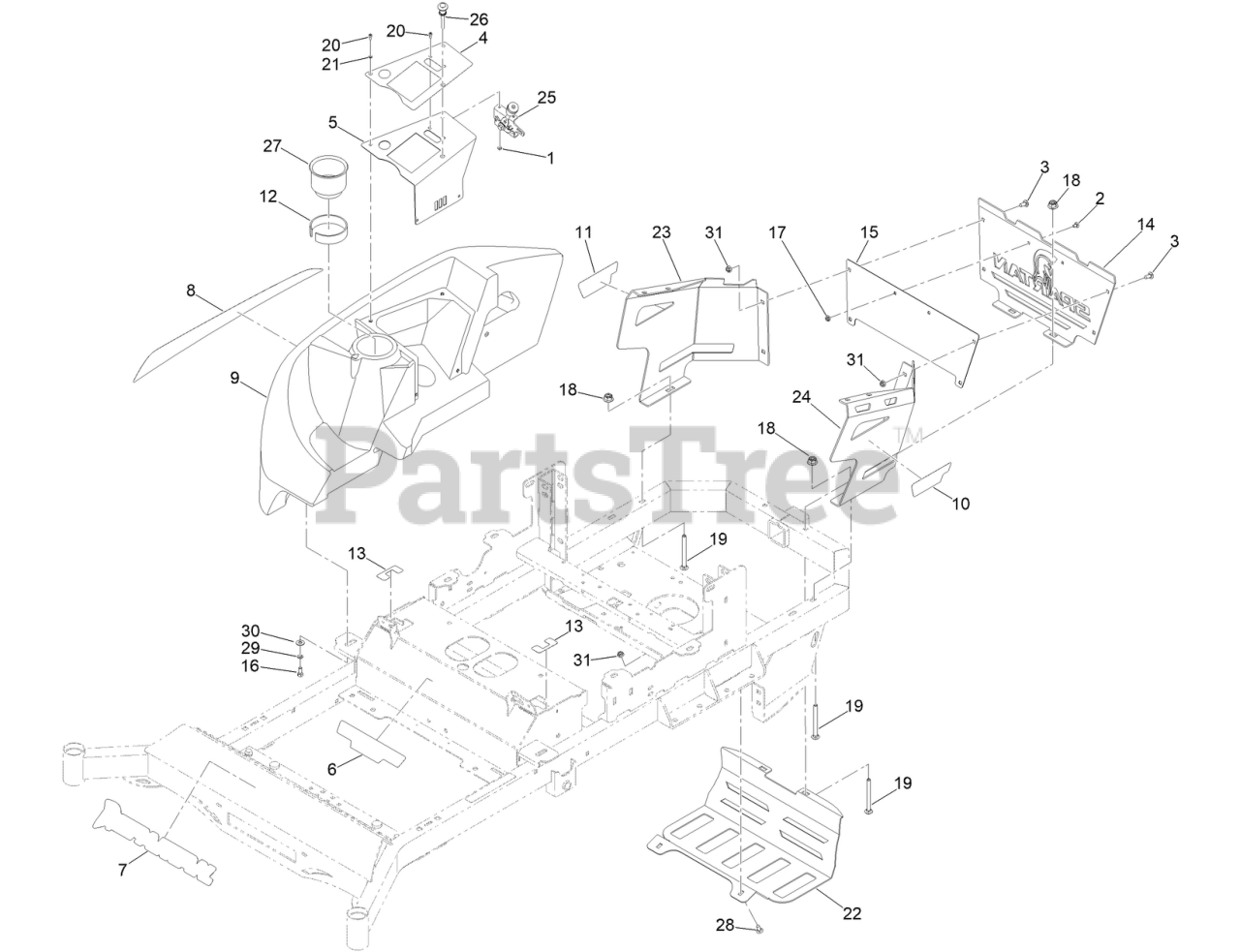

Body Styling Assembly Parts Diagram

  • Title

1

Toro 110-3145

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

2

Toro 116-5879

SCREW-CARR

$17.99

$

Usually ships in 3-6 days

0

3

Toro 144-2265

BOLT-CARR

$

$

Currently unavailable

4

Toro 148-0229

DECAL-CONSOLE

$

$

Currently unavailable

5

Toro 148-0230-05

BRKT-CONTROL PANEL

$

$

Currently unavailable

6

Toro 148-1162

DECAL- GT TRAC

$

$

Currently unavailable

7

Toro 148-0255

DECAL- SPARTAN BLACKOUT LOGO

$

$

Currently unavailable

8

Toro 148-0258

DECAL-POD RH

$

$

Currently unavailable

9

Toro 148-0307

CONSOLE W/ CUPHOLDER

$

$

Currently unavailable

10

Toro 148-1163

DECAL- MODEL

$

$

Currently unavailable

11

Toro 148-1164

DECAL- MODEL

$

$

Currently unavailable

12

Toro 148-0770

TAPE-FOAM

$

$

Currently unavailable

13

Toro 148-1056

DECAL-MOTION CONTROL

$

$

Currently unavailable

14

Toro 148-1067-05

PLATE - ENGINE COWLING

$

$

Currently unavailable

15

Toro 148-1068-P12

PLATE -BACKER PLATE

$

$

Currently unavailable

16

Toro 418-0054-00

SCREW-HH

$

$

Currently unavailable

17

Toro 413-0012-00

1/4-20 HEX FLANGE NUT

$

$

Currently unavailable

18

Toro 413-0013-00

3/8-16 NYLON INSERT FLANGE L/NUT YZ

$

$

Currently unavailable

19

Toro 418-0018-00

3/8-16 X 4 CARRIAGE BOLT ZINC

$

$

Currently unavailable

20

Toro 418-0055-00

10-24 X 1/2 SOCKET C/S 18-8 SS

$

$

Currently unavailable

21

Toro 419-0011-00

#10 SPLIT LOCKWASHER 18-8 SS

$

$

Currently unavailable

22

Toro 148-1172-05

MUFFLER GUARD [BLK-TXT]

$

$

Currently unavailable

23

Toro 439-0691-00-05

2021 RT/SRT ENGINE COWLING RIGHT

$

$

Currently unavailable

24

Toro 439-0692-00-05

2021 RT/SRT ENGINE COWLING LEFT

$

$

Currently unavailable

25

Toro 464-0001-00

MWR THROTTLE CABLE ASSY W / HANDLE

$

$

Currently unavailable

26

Toro 464-0002-00

MWR CHOKE CABLE ASSM

$

$

Currently unavailable

27

Toro 780-2220-00

CUP HOLDER

$

$

Currently unavailable

28

Toro 418-0008-00

BOLT-CARR

$

$

Currently unavailable

29

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 419-0007-00

WASHER-FLAT

$

$

Currently unavailable

31

Toro 413-0022-00

NUT-HF

$

$

Currently unavailable
