RZ XD (RSZB3160FX801) - Spartan 60" Zero-Turn Mower (SN: 400000000 - 999999999) Seat Assembly Parts Diagram

60" Zero-Turn Mower

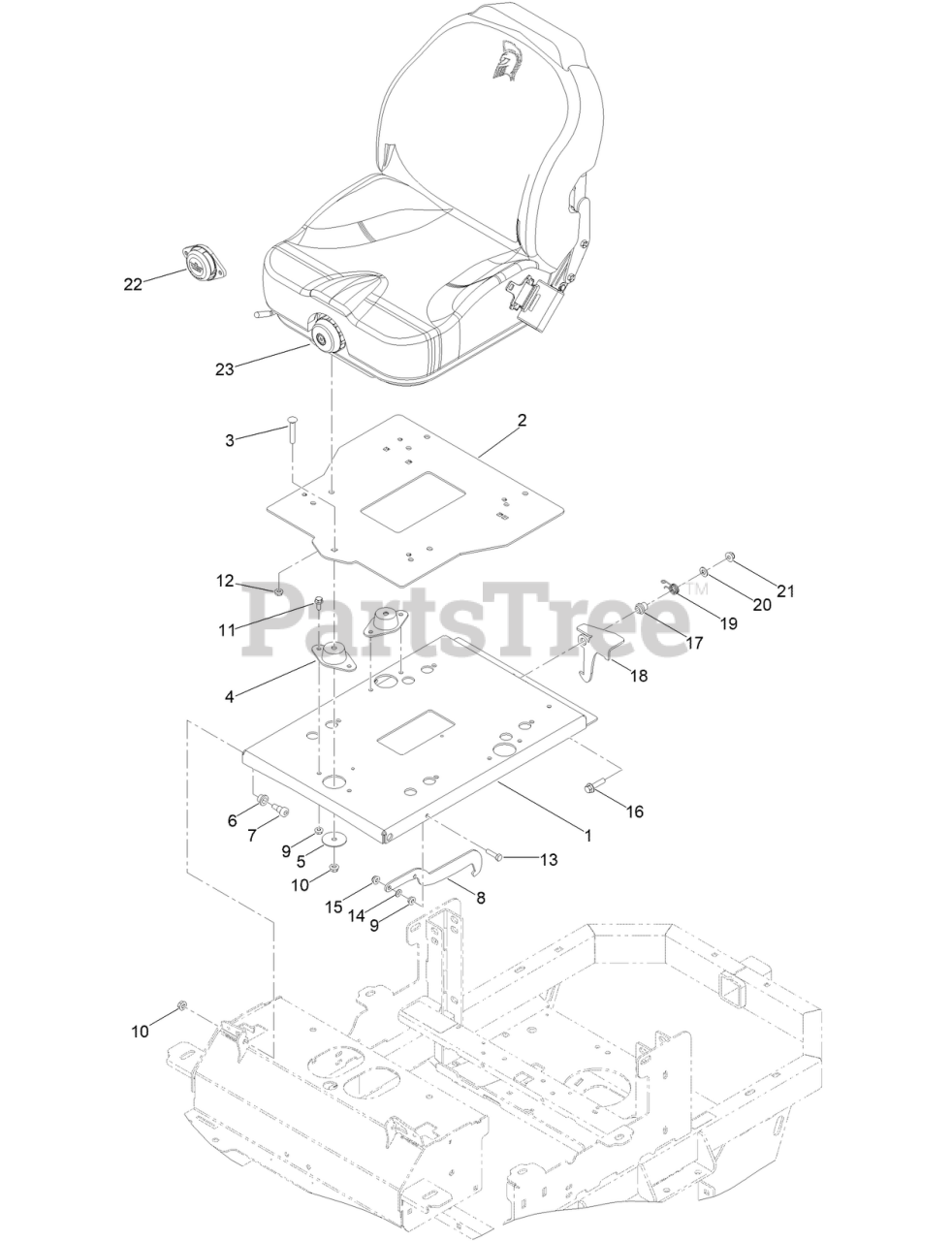

Seat Assembly Parts Diagram

  • Title

1

Toro 148-1050

360 SEAT BASE PLATE SAFTY DECAL ASM-05

$

$

Currently unavailable

2

Toro 426-0233-00-05

2019 UPGRADE SEAT PLATE

$

$

Currently unavailable

3

Toro 618-2023-00

SCREW-CARR

$

$

Currently unavailable

4

Toro 487-0007-00

FLOATING SEAT DAMPER-STIFFER

$

$

Currently unavailable

5

Toro 419-0022-00

3/8 X 2IN OD FENDER WASHER YZ

$

$

Currently unavailable

6

Toro 410-0010-00

1/2IN ID X 5/8IN OD X 1/2IN FLANGE BUSH

$

$

Currently unavailable

7

Toro 418-0038-00

1/2 X 1/2 SOCKET SHOULDER BOLT ZC YELLOW

$

$

Currently unavailable

8

Toro 439-0065-00-05

MWR SEAT LATCH HOOK BLACK

$

$

Currently unavailable

9

Toro 413-0022-00

NUT-HF

$

$

Currently unavailable

10

Toro 413-0029-00

NUT-HEX

$

$

Currently unavailable

11

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

12

Toro 413-0019-00

5/16-18 NYLON INSERT FLANGE L/NUT ZC

$

$

Currently unavailable

13

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

14

Toro 413-0016-00

.312IDX.625ODX.062 THK THRUST BRG OI BRZ

$

$

Currently unavailable

15

Toro 413-0027-00

NUT-HF, NI

$

$

Currently unavailable

16

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

17

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

In Stock, only 1 left!

0

18

Toro 148-0953

BRACKET-LATCH

$

$

Currently unavailable

19

Toro 126-8923

SPRING-TORSION, LATCH

$2.99

$

Usually ships in 3-6 days

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 486-0036-00

MWR SEAT SWITCH

$

$

Currently unavailable

23

Toro 148-0247

SEAT-SUSP

$

$

Currently unavailable
