RZE708GEM48C00 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 413950474 & Above) (Rev A) (2023) Motion Control Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

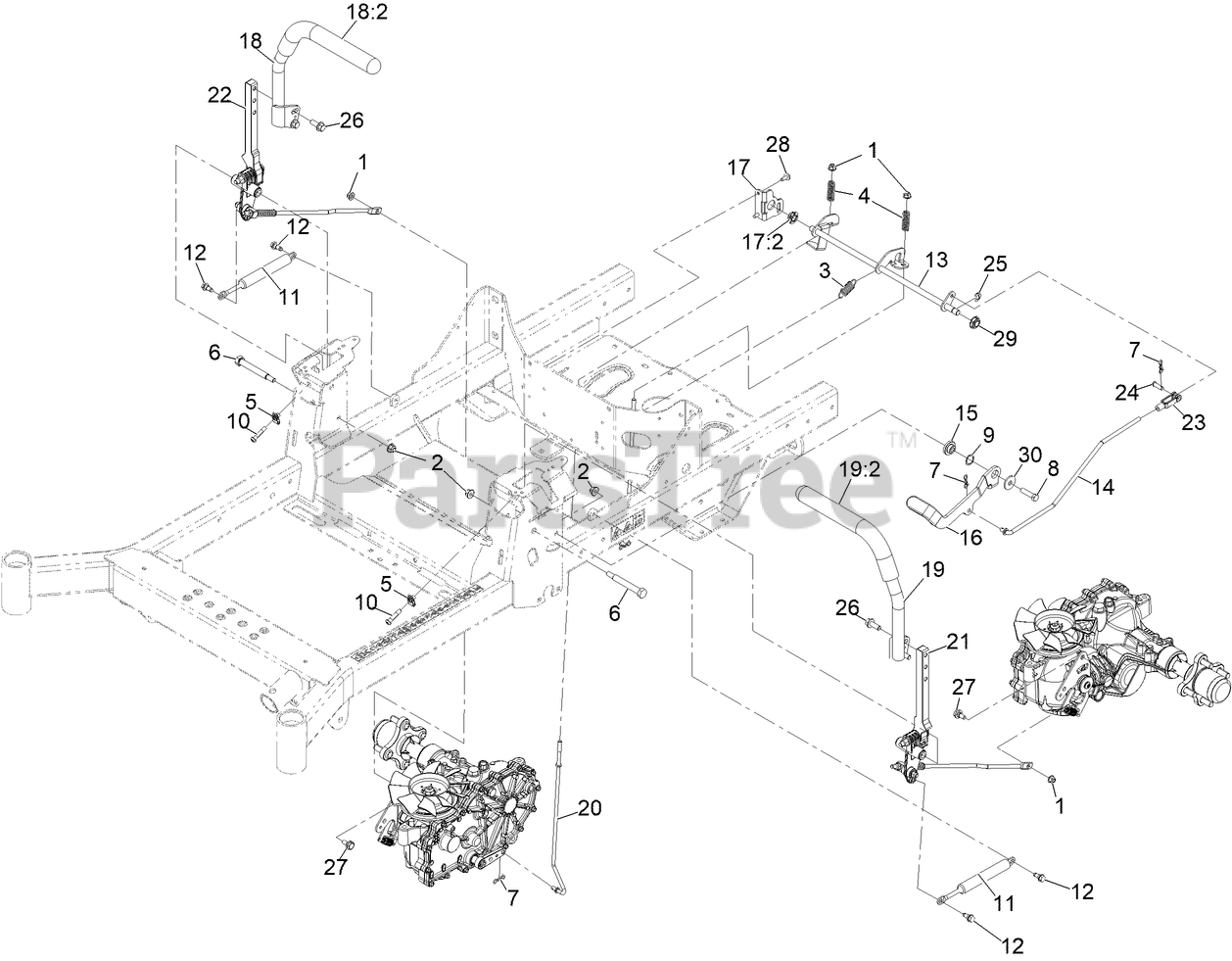

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 107-1045

SPRING-EXTENSION

$5.49

$

In Stock, only 2 left!

0

4

Exmark 109-7694

SPRING-COMPRESSION

$6.99

$

In Stock, only 2 left!

0

5

Exmark 112-3306

NUT

$3.99

$

Usually ships in 3-6 days

0

6

Exmark 115-5099

BOLT-PIVOT

$5.49

$

In Stock, only 2 left!

0

7

Exmark 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 5

0

8

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Exmark 119-4164

WASHER-WAVE

$3.99

$

In Stock, only 3 left!

0

10

Exmark 126-4299

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 142-6851

DAMPER

$33.99

$

In Stock, Qty 16

0

12

Exmark 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

13

Exmark 126-5813

SHAFT-BRAKE

$42.99

$

Usually ships in 3-6 days

0

14

Exmark 126-5819

LINKAGE-BRAKE, UPPER

$14.99

$

Usually ships in 3-6 days

0

15

Exmark 126-5989

PIVOT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 126-9490

LEVER-BRAKE (WITH GRIP)

$29.99

$

Usually ships in 3-6 days

0

17

Exmark 126-6456

BRACKET-BRAKE

$23.99

$

Usually ships in 3-6 days

0

17:2

Exmark 126-5820

BEARING-SPHERICAL

$8.49

$

In Stock, only 1 left!

0

18

Exmark 142-7992

ASM, MOTION CONTROL W/ GRIP, RT

$69.99

$

Usually ships in 3-6 days

0

18:2

Exmark 126-7359

GRIP

$18.99

$

Usually ships in 3-6 days

0

19

Exmark 142-7991

ASM, MOTION CONTROL W/ GRIP, LT

$69.99

$

Usually ships in 3-6 days

0

19:2

Exmark 126-7359

GRIP

$18.99

$

Usually ships in 3-6 days

0

20

Exmark 126-7217

LINKAGE-BRAKE, LOWER

$14.99

$

Usually ships in 3-6 days

0

21

Exmark 142-8325

ASM, MOTION CONTROL LT

$111.99

$

Usually ships in 3-6 days

0

22

Exmark 142-8326

ASM, MOTION CONTROL RT

$111.99

$

Usually ships in 3-6 days

0

23

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 2 left!

0

24

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

25

Exmark 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

26

Exmark 110-5052

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

27

Exmark 37-8771

BOLT-SHOULDER,HFH

$5.49

$

In Stock, Qty 20+

0

28

Exmark 126-6266

SCREW-TORX

$1.49

$

Usually ships in 3-6 days

0

29

Exmark 126-5820

BEARING-SPHERICAL

$8.49

$

In Stock, only 1 left!

0

30

Exmark 2844

WASHER

$3.49

$

In Stock, Qty 20+

0
