RZE708GEM52300 - Exmark 52" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 413950474 & Above) (Rev A) (2023) Transaxle Assembly Parts Diagram

52" Radius E-Series Zero-Turn Mower, Exmark 708

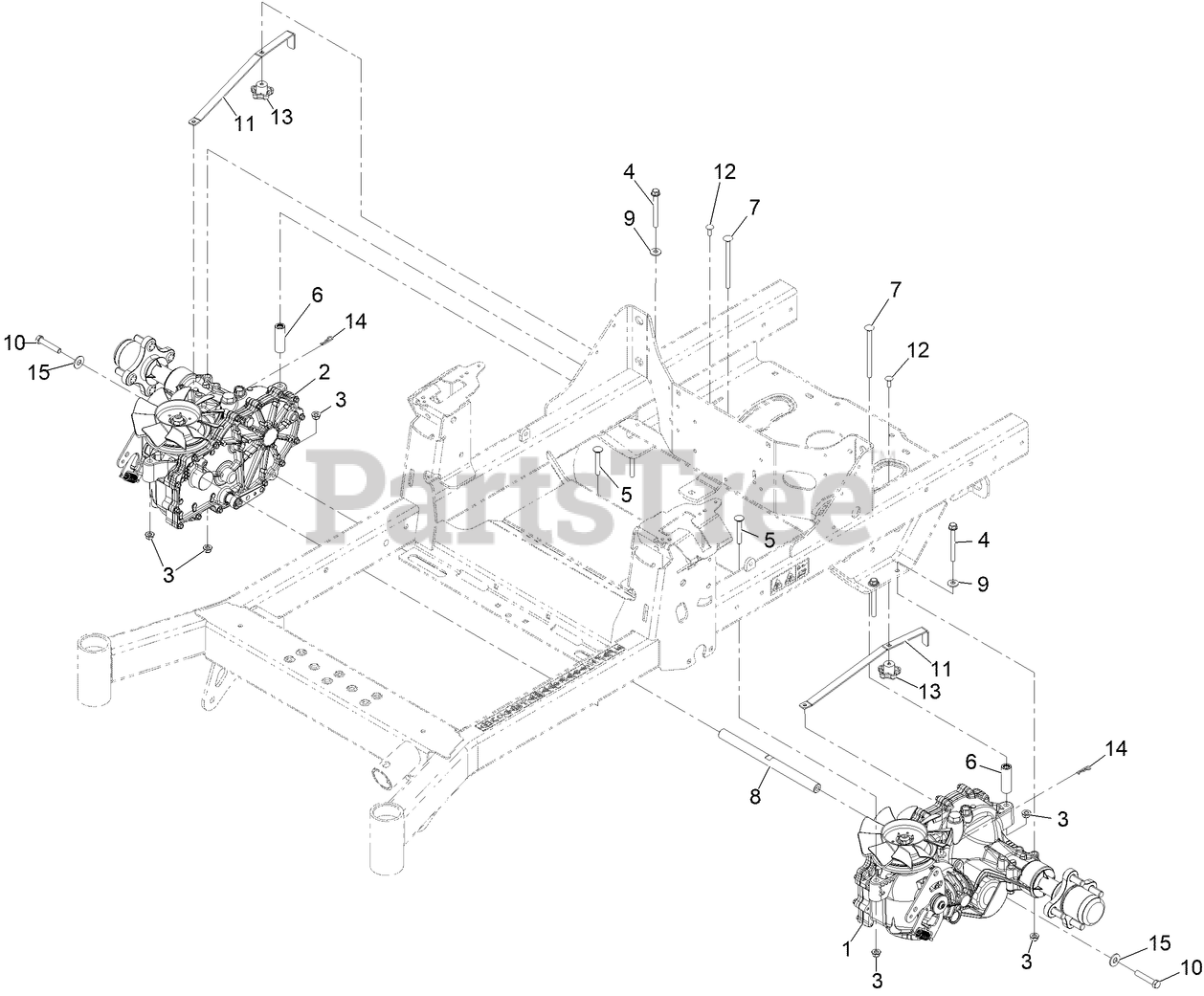

Transaxle Assembly Parts Diagram

  • Title

1

Exmark 142-6313

TRANSAXLE ASM

$1736.99

$

Usually ships in 3-6 days

0

2

Exmark 142-6314

TRANSAXLE ASM

$1736.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 126-4687

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-7

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

6

Exmark 142-8480

SPACER, HYDRO

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 3230-30

Bolt-Carriage 5/16-18 X 1 1/4

$12.99

$

In Stock, only 3 left!

0

8

Exmark 116-6833

SHAFT-SPACER

$39.99

$

In Stock, only 2 left!

0

9

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

10

Exmark 94-7972

SCREW-HH W/LOCTITE

$5.49

$

In Stock, only 2 left!

0

11

Exmark 109-5395

ARM-BYPASS, HYDRO

$11.99

$

Usually ships in 3-6 days

0

12

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

13

Exmark 108-6402

KNOB-HANDLE

$1.99

$

In Stock, Qty 17

0

14

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

15

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0
