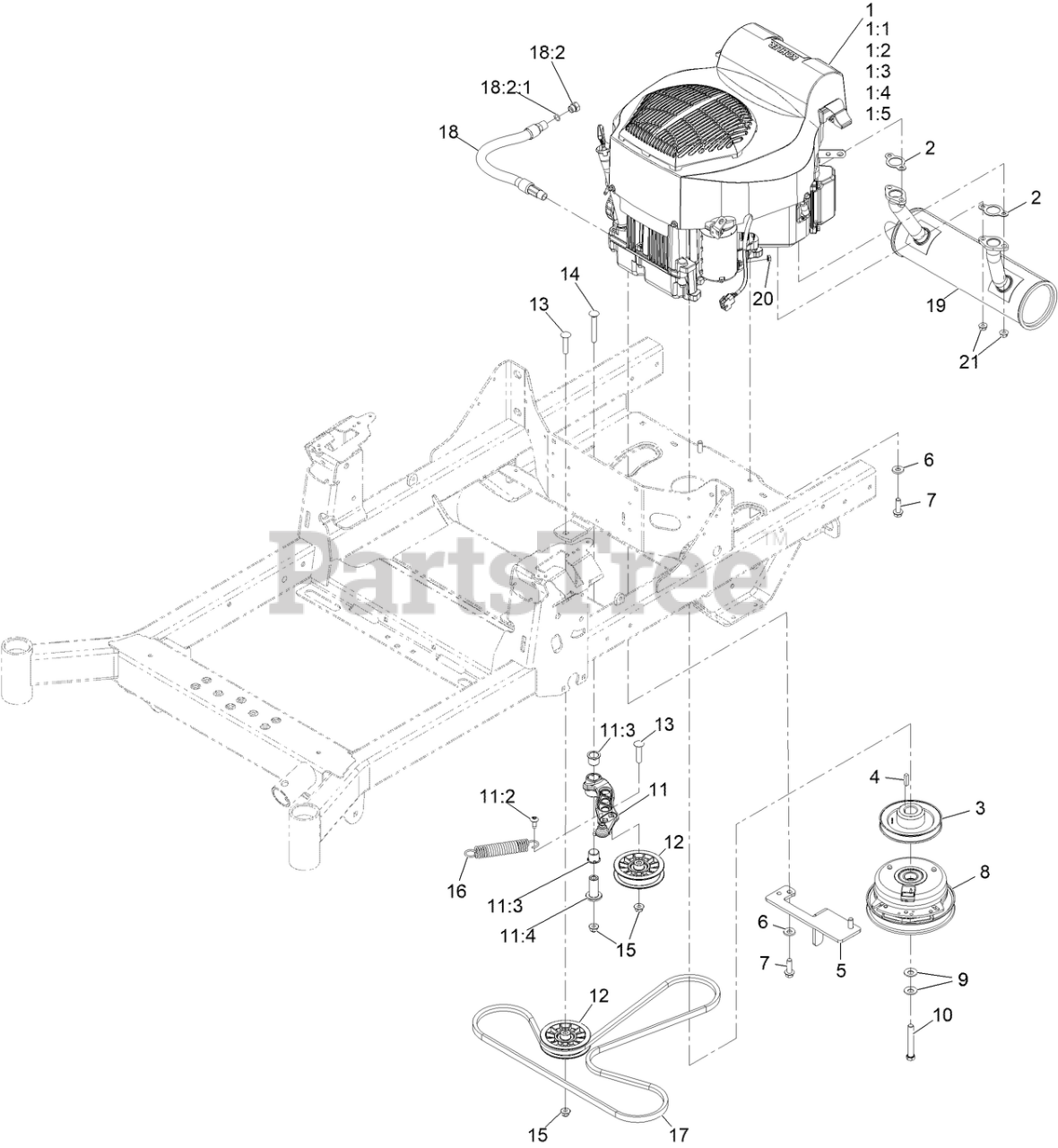

RZE724GKC52300 - Exmark 52" Radius E-Series Zero-Turn Mower, Kohler KT724 (SN: 417930746 & Above) (Rev A) (2025) Engine Assembly Parts Diagram

52" Radius E-Series Zero-Turn Mower, Kohler KT724

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler Kt724

Note: Not serviced separately

$

$

Not available

1:1

Exmark 146-0422

ELEMENT-PRE CLEANER

$12.99

$

Usually ships in 0 days

0

1:2

Exmark 146-0423

ELEMENT-AIR FILTER

$43.99

$

Usually ships in 0 days

0

1:3

Exmark 98020

Filter-Oil

$13.99

$

In Stock, Qty 20+

0

1:4

Exmark 98021

Filter-Fuel

$8.99

$

In Stock, Qty 20+

0

1:5

Exmark 116-8570

Plug-Spark

$32.99

$

Usually ships in 3-6 days

0

2

Exmark 1-653291

GASKET (KOHLER)
(Superseded to 110-6697)

$3.49

$

Usually ships in 3-6 days

0

3

Exmark 142-8828

SHEAVE, ENGINE

$59.99

$

Usually ships in 3-6 days

0

4

Exmark 1-807259

KEY

$2.49

$

In Stock, only 2 left!

0

5

Exmark 146-0187-03

Anchor-Clutch

$27.99

$

Usually ships in 0 days

0

6

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

7

Exmark 32144-109

SCREW-THD

$5.49

$

In Stock, only 2 left!

0

8

Exmark 126-4323

CLUTCH 1.00

$445.99

$

In Stock, only 1 left!

0

9

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 7

0

10

Exmark 126-7198

SCREW-HH W/LOCTITE

$20.99

$

In Stock, only 2 left!

0

11

Exmark 142-6547

ASM, PUMP IDLER

$72.99

$

In Stock, only 1 left!

0

11:2

Exmark 142-8477

SCREW, TAPTITE

$1.49

$

Usually ships in 3-6 days

0

11:3

Exmark 142-5935

BUSHING, IGUS

$2.99

$

Usually ships in 3-6 days

0

11:4

Exmark 142-6529

Spacer, Idler Pivot

$3.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2456

PULLEY-FLAT IDLER

$25.99

$

In Stock, Qty 6

0

13

Exmark 3231-29

SCREW-CARR

$7.99

$

In Stock, Qty 19

0

14

Exmark 3231-9

SCREW-CARR

$2.49

$

In Stock, only 4 left!

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-603402

SPRING-EXTENSION

$8.99

$

In Stock, only 4 left!

0

17

Exmark 126-5993

BELT-V
(Superseded to 126-5993-SL)

$53.99

$

In Stock, only 3 left!

0

18

Exmark 116-5108

OIL DRAIN HOSE ASM

$42.99

$

In Stock, only 1 left!

0

18:2

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 2 left!

0

18:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

19

Exmark 142-9155

MUFFLER, KOHLER

$143.99

$

Usually ships in 0 days

0

20

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 17

0

21

Exmark 68-9400

NUT-FLANGE

$2.99

$

In Stock, only 1 left!
