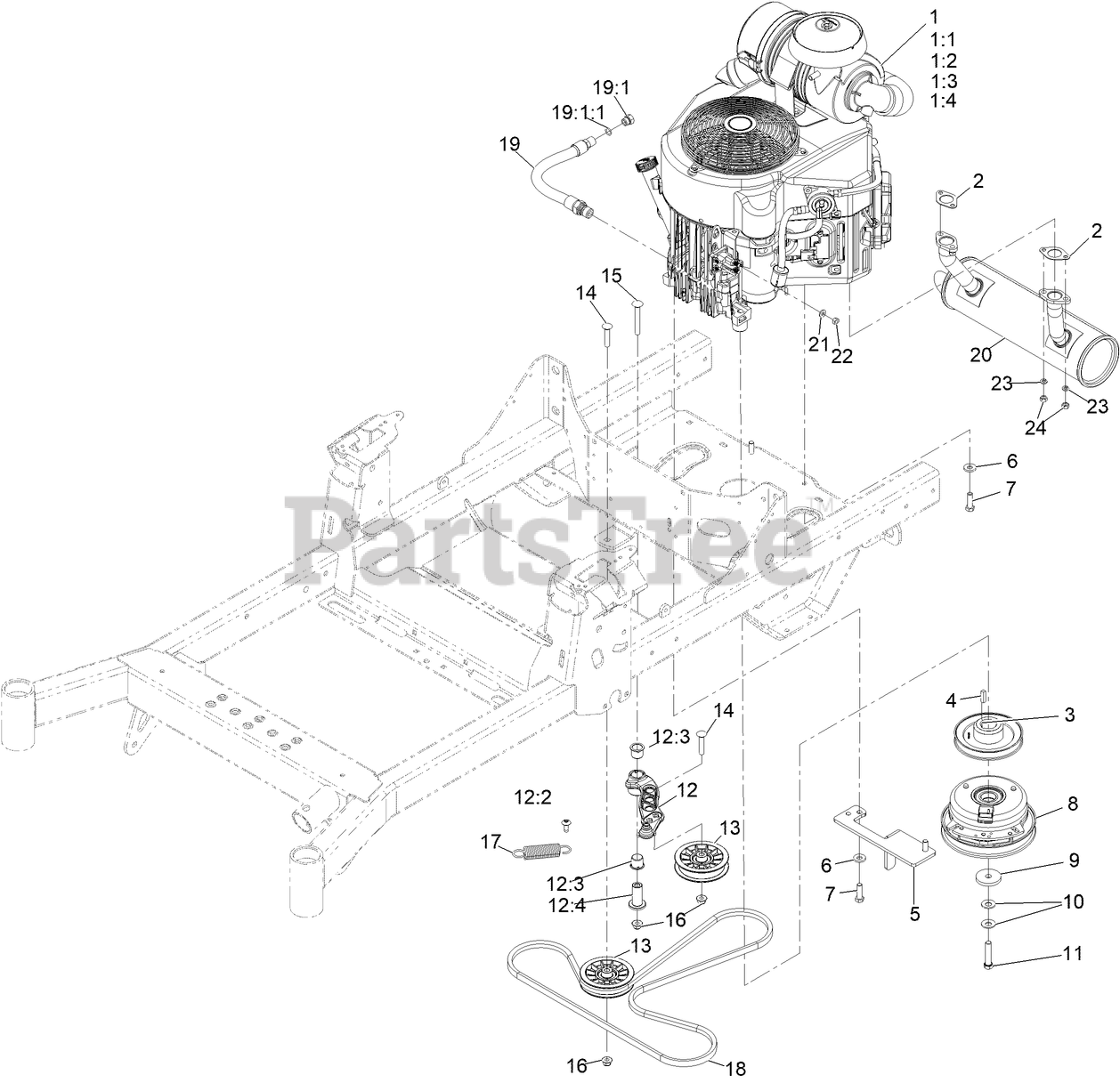

RZS651GKA48CA3 - Exmark 48" Radius S-Series Zero-Turn Mower, Kawasaki FX651V (SN: 413950474 & Above) (Rev A) (2023) Engine Assembly Parts Diagram

48" Radius S-Series Zero-Turn Mower, Kawasaki FX651V

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki, Fx651V

Note: Not serviced separately

$

$

Not available

1:1

Kawasaki 49065-7007 Engine Oil Filter

Note: Not serviced separately | Obtain parts from www.kawpower.com

$

$

Not available

1:2

Kawasaki 49019-7005 Fuel Filter

Note: Not serviced separately | Obtain parts from www.kawpower.com

$

$

Not available

1:3

Kawasaki 11013-7045 Safety Filter

Note: Not serviced separately | Obtain parts from www.kawpower.com

$

$

Not available

1:4

Kawasaki 11013-7044 Engine Air Filter

Note: Not serviced separately | Obtain parts from www.kawpower.com

$

$

Not available

2

Exmark 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 142-8275

SHEAVE, ENGINE

$54.99

$

Usually ships in 3-6 days

0

4

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

5

Exmark 146-0187-03

Anchor-Clutch

$26.99

$

Usually ships in 0 days

0

6

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

7

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

8

Exmark 126-8926

CLUTCH

$437.99

$

Usually ships in 3-6 days

0

9

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 20+

0

10

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

11

Exmark 109-9762

SCREW-HH W/LOCTITE

$5.49

$

In Stock, Qty 7

0

12

Exmark 142-6547

ASM, PUMP IDLER

$70.99

$

Usually ships in 3-6 days

0

12:2

Exmark 142-8477

SCREW, TAPTITE

$1.49

$

Usually ships in 3-6 days

0

12:3

Exmark 142-5935

BUSHING, IGUS

$2.99

$

Usually ships in 3-6 days

0

12:4

Exmark 142-6529

Spacer, Idler Pivot

$3.99

$

Usually ships in 0 days

0

13

Exmark 116-2456

PULLEY-FLAT IDLER

$25.99

$

In Stock, Qty 20+

0

14

Exmark 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

15

Exmark 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 5

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-603402

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

18

Exmark 126-5993

BELT-V
(Superseded to 126-5993-SL)

$53.99

$

In Stock, Qty 20+

0

19

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

$39.99

$

In Stock, Qty 6

0

19:1

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.99

$

In Stock, only 4 left!

0

19:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

20

Exmark 142-9154

MUFFLER, KAWASAKI

$174.99

$

Usually ships in 3-6 days

0

21

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 13

0

23

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

24

Exmark 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0
