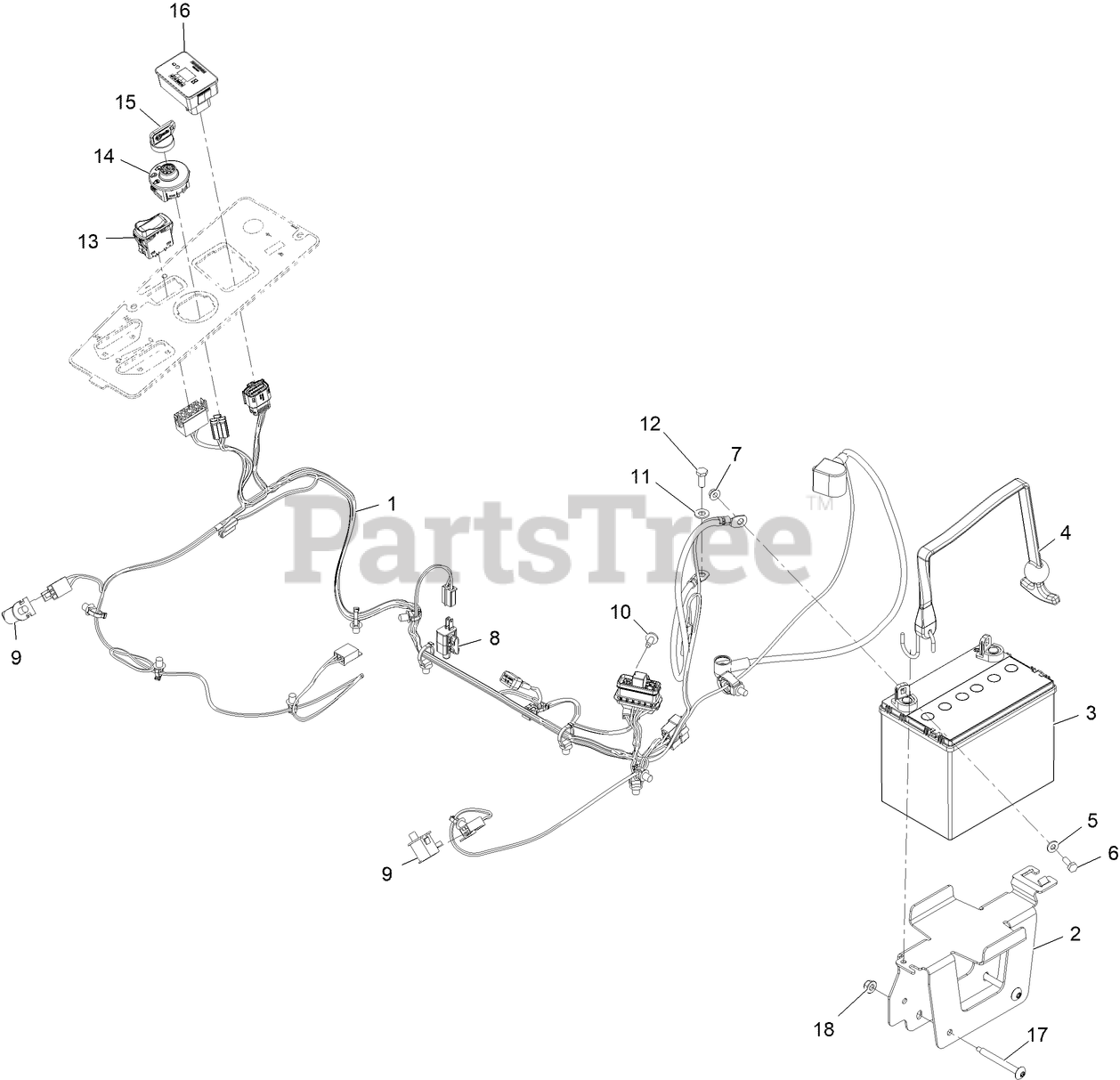

RZS651GKA48CA3 - Exmark 48" Radius S-Series Zero-Turn Mower, Kawasaki FX651V (SN: 417930746 & Above) (Rev A) (2025) Electrical Assembly Parts Diagram

48" Radius S-Series Zero-Turn Mower, Kawasaki FX651V

Electrical Assembly Parts Diagram

  • Title

1

Exmark 142-9137

Harness-Main

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$359.99

$

Usually ships in 3-6 days

0

2

Exmark 126-6725-03

TRAY-BATTERY

$30.99

$

Usually ships in 3-6 days

0

3

Exmark 99-7421

Battery
(Superseded to 104-8162)

$

$

Not available

4

Exmark 142-8697

STRAP, BUNGEE

$10.99

$

Usually ships in 3-6 days

0

5

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

9

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

10

Exmark 126-6266

SCREW-TORX

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

12

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

13

Exmark 139-6368

SWITCH-ROCKER, ON-NONE-ON

$37.99

$

In Stock, Qty 12

0

14

Exmark 137-4100

SWITCH-IGNITION

$30.99

$

In Stock, Qty 20+

0

15

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 16

0

15

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

16

Exmark 116-5609

MODULE ASM

$181.99

$

In Stock, only 2 left!

0

17

Exmark 126-6267

SCREW-TORX

$3.49

$

Usually ships in 3-6 days

0

18

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
