RZS691GKA523A3 - Exmark 52" Radius S-Series Zero-Turn Mower, Kawasaki FX691V (SN: 413950474 & Above) (Rev A) (2023) LH Motion Control Assembly Parts Diagram

52" Radius S-Series Zero-Turn Mower, Kawasaki FX691V

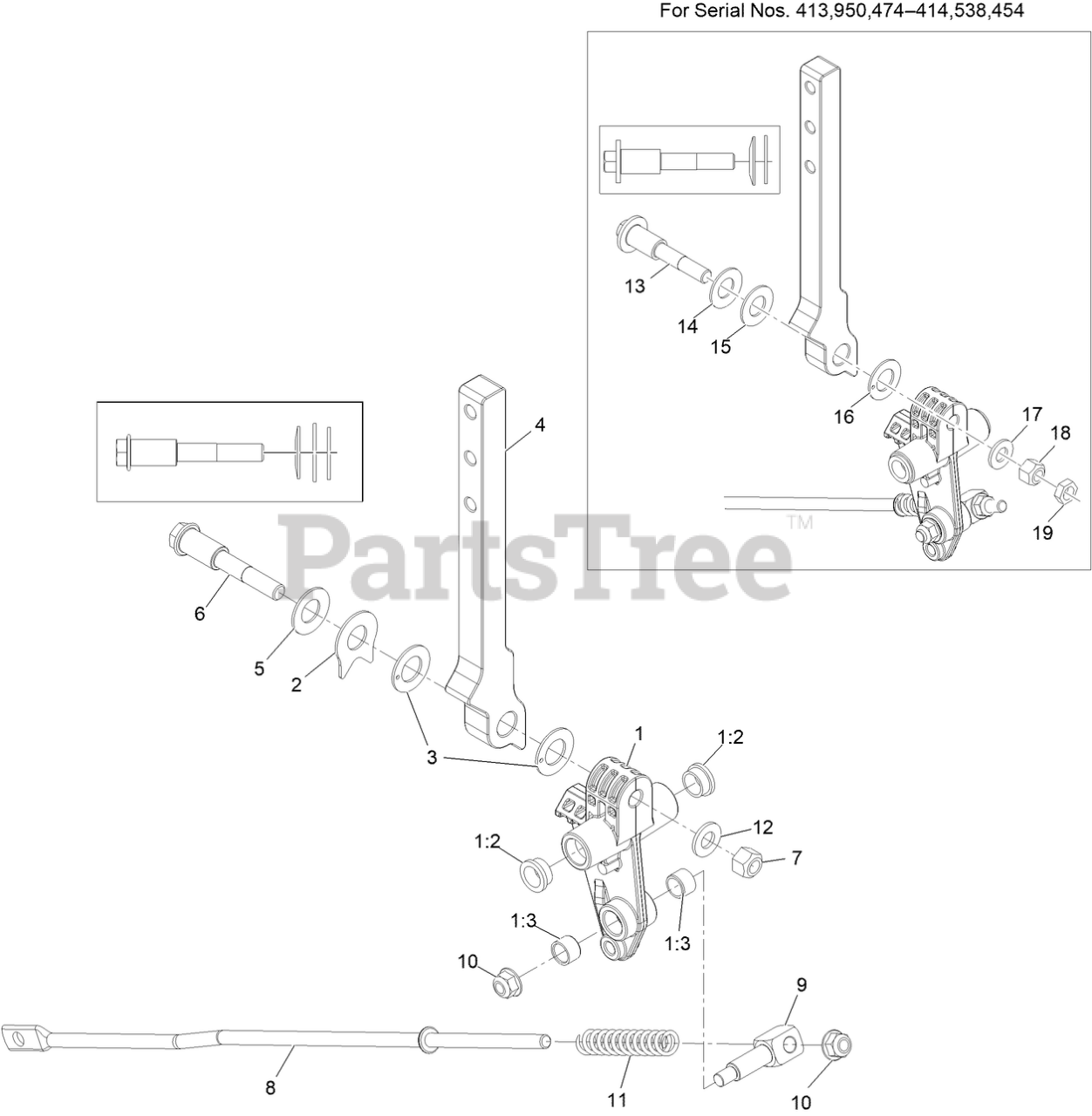

LH Motion Control Assembly Parts Diagram

  • Title

1

Exmark 126-3773

CONTROL ARM ASM

$42.99

$

Usually ships in 3-6 days

0

1:2

Exmark 126-8909

BUSHING

$2.99

$

In Stock, Qty 20+

0

1:3

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

2

Exmark 142-8478

Spacer, Anti-Rotation

$1.99

$

Usually ships in 0 days

0

3

Exmark 126-7296

WASHER-FRICTION

$17.99

$

Usually ships in 3-6 days

0

4

Exmark 142-8339

Lever, Motion Control

$39.99

$

Usually ships in 0 days

0

5

Exmark 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 14

0

6

Exmark 142-5951

Bolt-Pivot

$4.99

$

Usually ships in 0 days

0

7

Exmark 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, Qty 12

0

8

Exmark 126-5435

LINK-CONTROL

$13.99

$

Usually ships in 3-6 days

0

9

Exmark 126-5434

SWIVEL

$6.99

$

Usually ships in 3-6 days

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 126-8195

SPRING-RETURN, NEUTRAL

$2.99

$

In Stock, only 4 left!

0

12

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Exmark 117-1198

BOLT-PIVOT

$3.49

$

In Stock, Qty 17

0

14

Exmark 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 14

0

15

Exmark 117-1240

WASHER

$2.99

$

In Stock, Qty 17

0

16

Exmark 126-7296

WASHER-FRICTION

$17.99

$

Usually ships in 3-6 days

0

17

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Exmark 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, Qty 12

0

19

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 14

0
