RZT-17 (17AA5A4G710) - Cub Cadet 42" RZT Zero-Turn Mower Crankcase, Crankshaft And Piston Parts Diagram

42" RZT Zero-Turn Mower

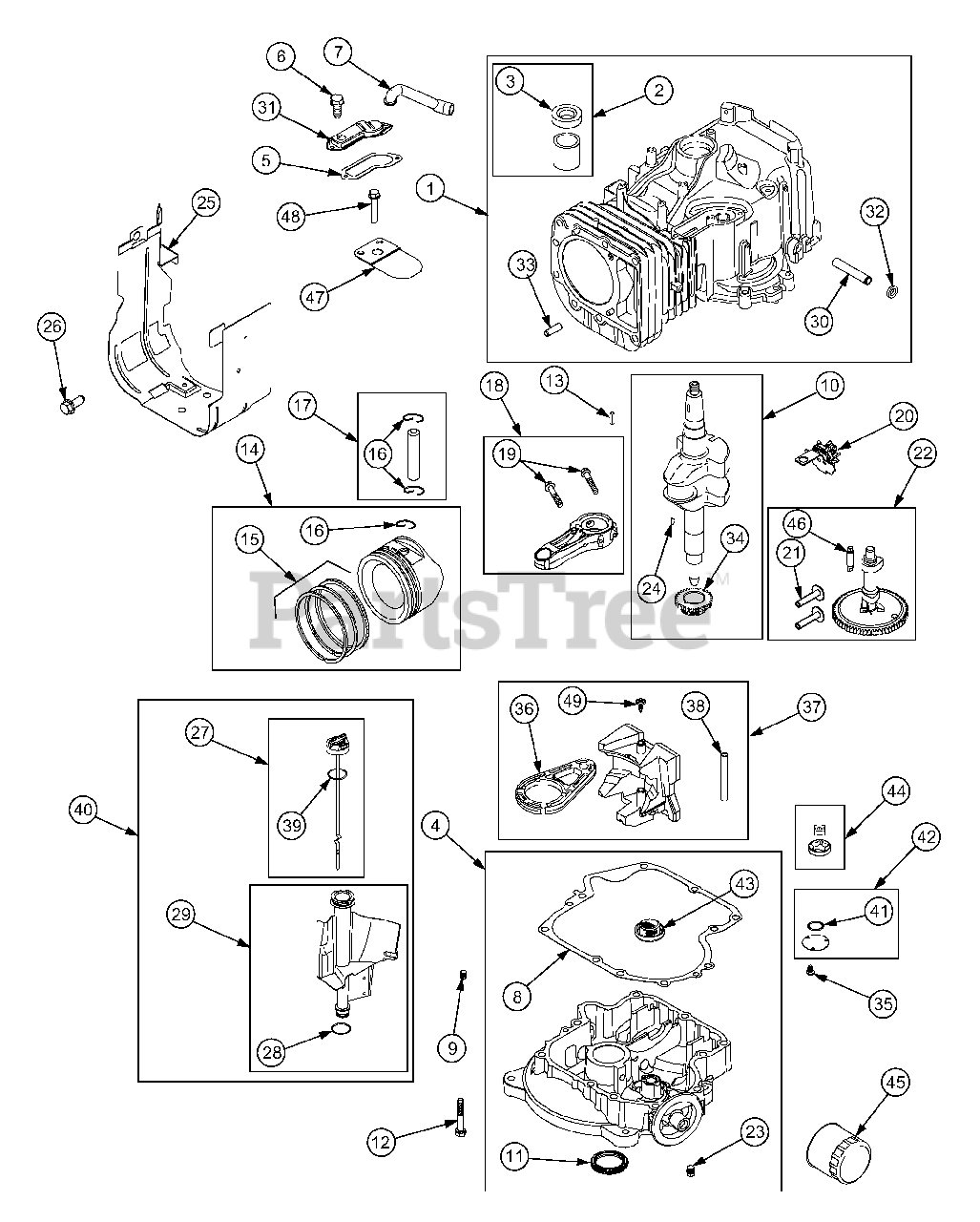

Crankcase, Crankshaft And Piston Parts Diagram

  • Title

1

Cub Cadet BS-697174

Cylinder Assembly
(Superseded to BS-796010)

$524.99

$

In Stock, only 1 left!

0

2

Cub Cadet BS-399265

Kit, Bushing/Seal (Magneto Side)
(Superseded to BS-797673)

$18.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-391086

Seal, Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-697188

Sump, Engine
(Superseded to BS-592849)

$250.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-697109

Gasket, Breather

$7.99

$

In Stock, only 1 left!

0

6

Cub Cadet BS-697157

Screw (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-697113

Tube, Breather
(Superseded to BS-794683)

$7.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-697110

Gasket, Crankcase

$7.49

$

In Stock, Qty 20+

0

9

Cub Cadet BS-691680

Plug, Oil Drain

$5.99

$

In Stock, only 4 left!

0

10

Cub Cadet BS-697127

Crankshaft

$

$

Not available

11

Cub Cadet BS-690947

Seal, Oil
(Superseded to BS-795387)

$7.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-692125

Screw

$4.99

$

In Stock, only 2 left!

0

13

Cub Cadet BS-222698

Key, Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

14

Cub Cadet BS-699025

Piston Assembly (Standard)
(Superseded to BS-796172)

$90.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-699041

Piston Assembly (.020 Oversize)

$

$

Not available

15

Cub Cadet BS-699026

Ring Set, Piston (Standard)
(Superseded to BS-594437)

$52.99

$

In Stock, Qty 5

0

Cub Cadet BS-687171

Ring Set, Piston (.020 Oversize)

$

$

Currently unavailable

16

Cub Cadet BS-698469

Lock Ring, Piston Pin

$4.99

$

In Stock, only 1 left!

0

17

Cub Cadet BS-697099

Pin, Piston (Standard)

$13.99

$

In Stock, only 1 left!

0

18

Cub Cadet BS-697126

Rod, Connecting (Standard)
(Superseded to BS-794122)

$78.99

$

In Stock, only 3 left!

0

Cub Cadet BS-697263

Rod, Connecting (.020 Undersize)

$57.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-692852

Screw (Connecting Rod)
(Superseded to BS-791118)

$4.99

$

In Stock, Qty 10

0

20

Cub Cadet BS-691968

Slinger, Governor/Oil

$37.99

$

In Stock, Qty 12

0

21

Cub Cadet BS-690564

Tappet, Valve

$9.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-698492

Camshaft
(Superseded to BS-84005207)

$146.99

$

Usually ships in 3-6 days

0

23

Cub Cadet BS-690283

Plug, Oil
(Superseded to BS-794903)

$5.49

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-691639

Key, Timing

$4.49

$

In Stock, only 3 left!

0

25

Cub Cadet BS-697107

Shield, Cylinder

$55.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-691003

Screw

$3.49

$

In Stock, only 2 left!

0

27

Cub Cadet BS-697086

Dipstick
(Superseded to BS-699908)

$14.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-691032

Seal, Dipstick Tube

$5.99

$

In Stock, Qty 9

0

29

Cub Cadet BS-697085

Tube, Dipstick

$26.99

$

In Stock, only 3 left!

0

30

Cub Cadet BS-697144

Bushing, Governor Lever

$9.49

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-697112

Cover, Breather Passage
(Superseded to BS-794682)

$9.49

$

In Stock, only 1 left!

0

32

Cub Cadet BS-692407

Seal, Governor Shaft

$7.99

$

In Stock, Qty 11

0

33

Cub Cadet BS-690959

Pin, Locating

$6.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-697128

Gear, Timing

$20.99

$

In Stock, Qty 6

0

35

Cub Cadet BS-691033

Screw (Oil Pump Cover)

$

$

Not available

36

Cub Cadet BS-697607

Link, Counterweight
(Superseded to BS-793242)

$20.99

$

In Stock, only 2 left!

0

37

Cub Cadet BS-697134

Counterweight
(Superseded to BS-793763)

$128.99

$

Usually ships in 2-12 days

0

38

Cub Cadet BS-697392

Pin, Counterweight

$5.99

$

Usually ships in 2-12 days

0

39

Cub Cadet BS-691031

Seal, O-Ring (Dipstick Tube)

$5.49

$

In Stock, Qty 13

0

40

Cub Cadet BS-697087

Dipstick/Tube Assembly
(Superseded to BS-790443)

$55.99

$

Usually ships in 2-12 days

0

41

Cub Cadet BS-690589

O-Ring Seal (Oil Pump Cover)

$8.99

$

In Stock, Qty 6

0

42

Cub Cadet BS-499613

Cover, Oil Pump

$13.99

$

In Stock, only 1 left!

0

43

Cub Cadet BS-690770

Screen, Oil Pump

$9.99

$

Usually ships in 2-12 days

0

44

Cub Cadet BS-499054

Pump, Oil
(Superseded to BS-795259)

$32.99

$

In Stock, Qty 12

0

45

Cub Cadet BS-492932

Filter, Oil
(Superseded to BS-492932S)

$12.99

$

In Stock, Qty 20+

0

46

Cub Cadet BS-693784

Shaft, Pump

$

$

Not available

47

Cub Cadet BS-697124

Reed, Breather

$7.49

$

In Stock, only 1 left!

0

48

Cub Cadet BS-697104

Screw

$3.99

$

Usually ships in 2-12 days

0

49

Cub Cadet BS-697156

Plug, AVS Counterweight
(Superseded to BS-793243)

$4.99

$

In Stock, Qty 11

0

Cub Cadet BS-697762

Shortblock

$597.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-31G777-0036

Engine, Replacement
(Superseded to BS-31G777-3036)

$2284.99

$

Usually ships in 3-6 days

0
