RZT 185381 BVE (7800151) - Snapper 38" Zero-Turn Mower, 18.5hp 38" DECK GROUP (Sub-Assembly) Parts Diagram

38" Zero-Turn Mower, 18.5hp

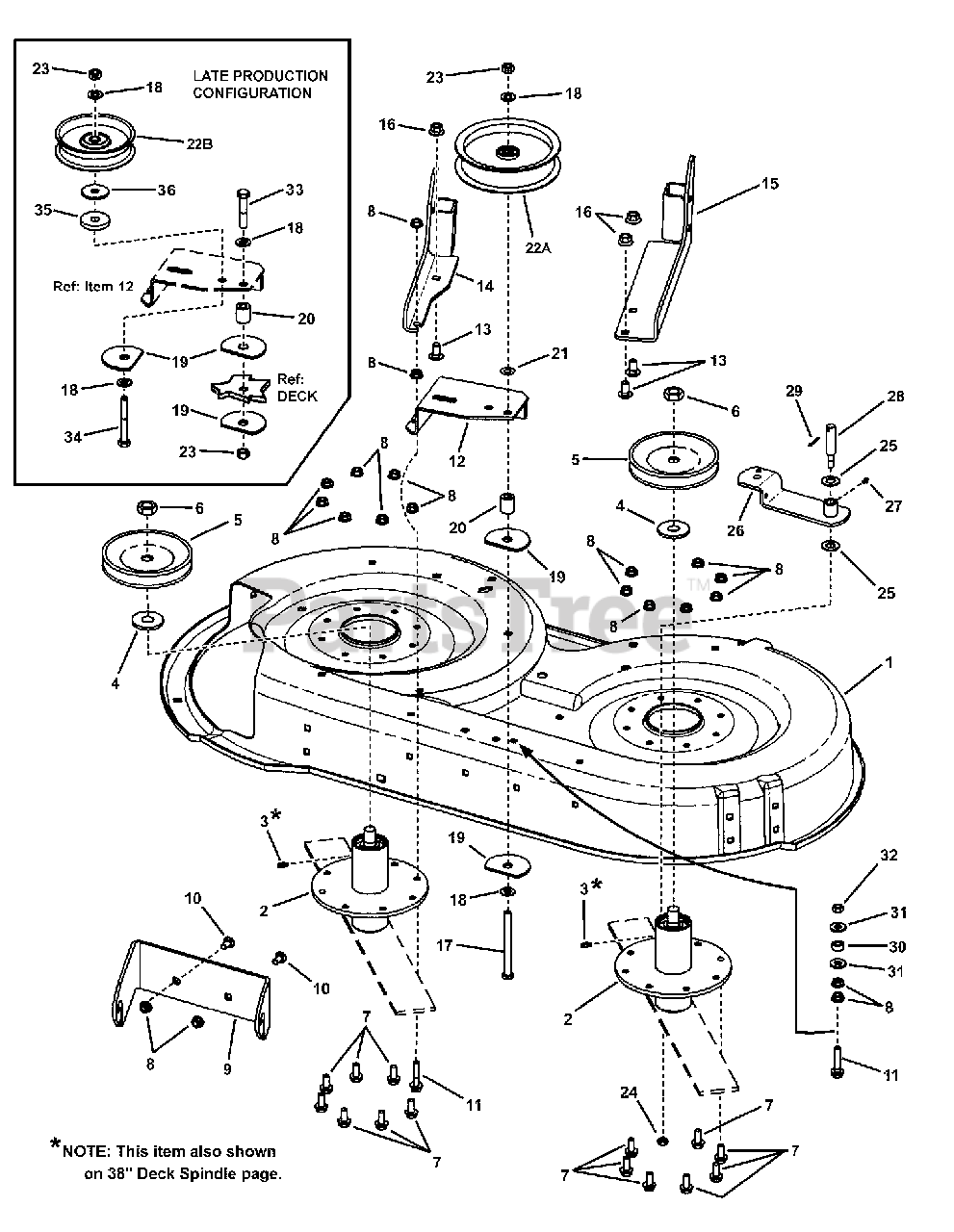

38" DECK GROUP (Sub-Assembly) Parts Diagram

  • Title

1

Snapper 7300271

DECK, 38 RZT (Cardinal Red)

Note: was 7300160 (Raw 38" Deck)

$

$

Not available

2

Snapper 7059377

ASSEMBLY, 38" Spindle
(Superseded to 7063198SM)

$303.99

$

Usually ships in 2-12 days

0

3

Snapper 7010817

FITTING, Lube, Press-In (for .187 dia. Hole)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 13

0

4

Snapper 7072440

SPACER, 38 Spindle Pulley
(Superseded to 7072440SM)

$9.99

$

In Stock, only 3 left!

0

5

Snapper 7100278

PULLEY, 5.0 O. D.
(Superseded to 7100278SM)

$30.99

$

In Stock, only 2 left!

0

6

Snapper 7090658

NUT, 5/8-18 Hex Jam
(Superseded to 703904)

$4.99

$

In Stock, only 3 left!

0

7

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 13

0

8

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

9

Snapper 7300031

BRACKET, Front, 38" RZT
(Superseded to 7300031SM)

$

$

Not available

10

Snapper 7091026

BOLT, 5/16-18 x 3/4" Short Square Neck Carriage, GR 5
(Superseded to 7900015YP)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7091602

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock, GR 5
(Superseded to 7091602SM)

$3.99

$

In Stock, only 4 left!

0

12

Snapper 7400090

WELDMENT, Idler Bracket
(Superseded to 7400090SM)

$42.99

$

In Stock, only 1 left!

0

13

Snapper 7090850

BOLT, 3/8-16 x 3/4" Short Square Neck Carriage, GR 5
(Superseded to 703448)

Note: or 7091640 (3/8-16 x 1" Carriage Bolt)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7400060

WELDMENT, 38" Deck Support, RH
(Superseded to 7400060SM)

$70.99

$

Usually ships in 2-12 days

0

15

Snapper 7400061

WELDMENT, 38" Deck Support, LH
(Superseded to 7400061SM)

$104.99

$

In Stock, only 1 left!

0

16

Snapper 7090613

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 5

0

17

Snapper 7079832

SCREW, 3/8-16 x 1" Hex Head Cap, GR 5
(Superseded to 7079832YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7091775

WASHER, Special
(Superseded to 7091775SM)

$7.99

$

In Stock, only 2 left!

0

20

Snapper 7200039

SPACER, .380 I. D. x .895 long
(Superseded to 7200039SM)

$15.99

$

Usually ships in 2-12 days

0

21

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

In Stock, Qty 20+

0

22A

Snapper 7034422

PULLEY, Flat Idler 5" x .375
(Superseded to 7034422SM)

$40.99

$

In Stock, Qty 20+

0

22B

Snapper 7100448

PULLEY, Flat Idler 4" x 1.24
(Superseded to 7100448SM)

$60.99

$

In Stock, only 1 left!

0

23

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR 5 or B, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

24

Snapper 7011201

NUT, 3/8-24 Hex Center lock
(Superseded to 703459)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7025074

WASHER, .531 x 1.0 x .063 Flat
(Superseded to 7025074SM)

$4.99

$

Usually ships in 2-12 days

0

26

Snapper 7400082

WELDMENT, Idler Arm, 38" RZT
(Superseded to 7400082BMYP)

$158.99

$

Usually ships in 2-12 days

0

27

Snapper 7014871

LUBE FITTING, 3/16"
(Superseded to 7014871SM)

$4.49

$

In Stock, only 4 left!

0

28

Snapper 7042964

IDLER STUD (5/16-24 thread)
(Superseded to 7042964SM)

$33.99

$

In Stock, only 3 left!

0

29

Snapper 7090037

COTTER PIN, 3/32 x 3/4"
(Superseded to 703312)

$4.49

$

In Stock, Qty 5

0

30

Snapper 7028620

SPACER, .340 I.D. x .63 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

31

Snapper 7091528

WASHER, 3/8" Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR 5 or B, YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5
(Superseded to 7091305SM)

$4.49

$

In Stock, Qty 20+

0

34

Snapper 7091557

SCREW, 3/8-16 x 2-3/4" Hex Head Cap, GR 5
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 18

0

35

Snapper 7091962

WASHER, 7/16" I.D. x 1-5/8" O.D. x .25 Flat
(Superseded to 7091962SM)

$8.49

$

Usually ships in 2-12 days

0

36

Snapper 7091331

WASHER, 3/8" I.D. x 1-1/2" O.D. x .120 Flat
(Superseded to 703591)

$5.49

$

In Stock, Qty 17

0
