RZT 22501 BVE2 (7800153) - Snapper 50" Zero-Turn Mower, 22hp WHEEL GROUP Parts Diagram

50" Zero-Turn Mower, 22hp

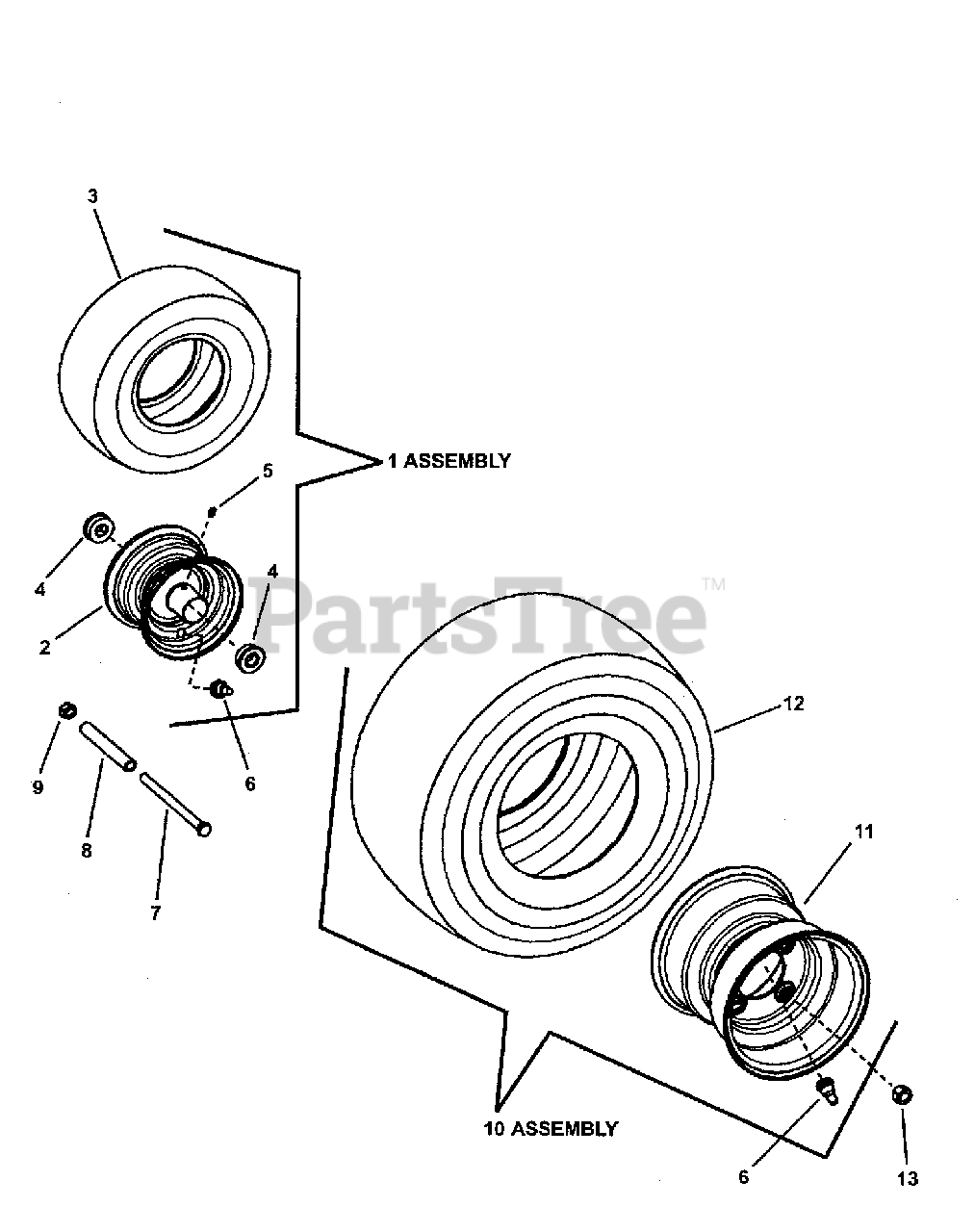

WHEEL GROUP Parts Diagram

  • Title

1

Snapper 1734013

ASSEMBLY, Front Wheel & Tire
(Superseded to 1734013SM)

Note: was 7059090

$110.99

$

In Stock, Qty 10

0

2

Snapper 7039477

RIM, Caster Wheel
(Superseded to 7039477SM)

$96.99

$

Usually ships in 2-12 days

0

3

Snapper 7035618

TIRE, 11 x 4.00-5, Smooth Tread
(Superseded to 7035618SM)

$75.99

$

In Stock, only 3 left!

0

4

Snapper 7035358

BALL BEARING, .625 x 1.38
(Superseded to 7035358SM)

$37.99

$

In Stock, Qty 8

0

5

Snapper 7104428

FITTING, Lube (45° 8Mx1M)
(Superseded to 7104428YP)

Note: Alemite #3038-B

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 7012234

VALVE STEM, Snap In
(Superseded to 7012234SM)

$6.49

$

In Stock, only 2 left!

0

7

Snapper 7091772

SCREW, 7/16-14 x 6", Hex Head Cap, GR 5
(Superseded to 7091772SM)

$8.49

$

In Stock, Qty 6

0

8

Snapper 7035359

TUBE, 5/8 O.D. x 14 Ga. Wall x 4.510" long
(Superseded to 1734841SM)

Note: caster wheel spacer

$12.99

$

In Stock, only 4 left!

0

9

Snapper 7090839

NUT, 7/16-14 Hex Center Lock, GR 5 or B
(Superseded to 7090839SM)

$4.99

$

In Stock, Qty 10

0

10

Snapper 7050538

ASS'Y. 18 x 8.50-8 Tire/Wheel, Turf Master, PMS 877 Silver
(Superseded to 7050538SM)

$222.99

$

Usually ships in 2-12 days

0

11

Snapper 7078113

RIM, 18 x 8.50, 4 Bolt
(Superseded to 7078113SM)

$131.99

$

Usually ships in 2-12 days

0

12

Snapper 7078109

TIRE, 18 x 8.50-8, Turf Master
(Superseded to 7078109SM)

$222.99

$

Usually ships in 2-12 days

0

13

Snapper 7027192

LUG NUT 1/2-20 Tapered Seat YZ
(Superseded to 7027192SM)

$2.49

$

Usually ships in 2-12 days

0
