RZT 26520 (2691079-01) - Murray 52" Zero-Turn Mower, 26hp (2012) Park Brake Group (7501572) Parts Diagram

52" Zero-Turn Mower, 26hp

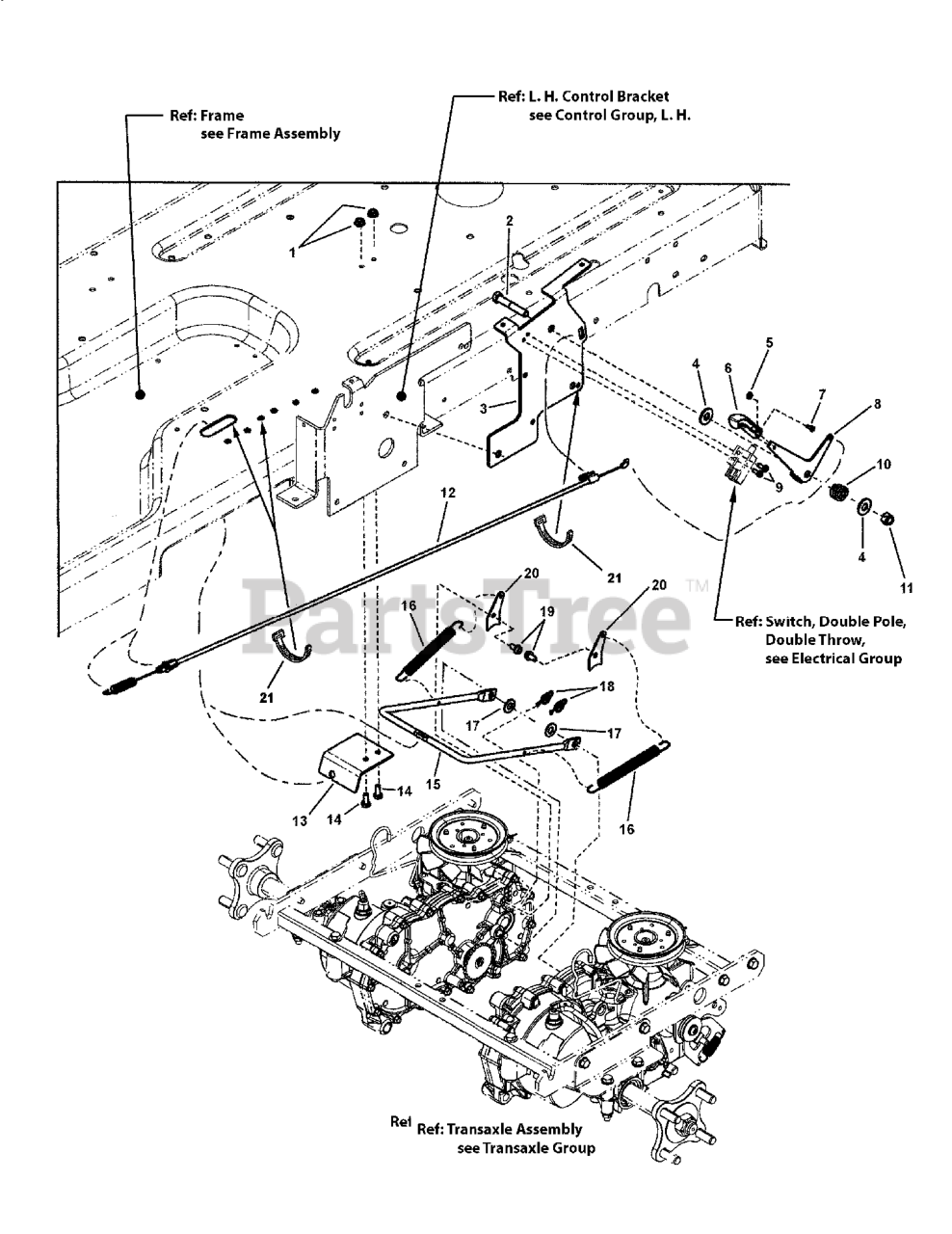

Park Brake Group (7501572) Parts Diagram

  • Title

1

Murray 1960294SM

NUT, Hex Flange Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

2

Murray 7091560YP

CAPSCREW, Hex Head, 3/8-16 x 2-1/4, GR 5
(Superseded to 703872)

$4.99

$

In Stock, Qty 8

0

3

Murray 7301075BMYP

BRACKET, Lever, Park Brake

$22.99

$

Usually ships in 2-12 days

0

4

Murray 7090517SM

WASHER, Flat, 7/16

$4.49

$

In Stock, Qty 8

0

5

Murray 7091018YP

NUT, Hex, #8-32 GR 2B
(Superseded to 703460)

$3.99

$

In Stock, Qty 11

0

6

Murray 7023655YP

LEVER, Throttle Control

$3.99

$

Usually ships in 2-12 days

0

7

Murray 7091017YP

SCREW, Cross Recess Filister Head, #8-32 x 3/8, GR 2

$3.99

$

In Stock, Qty 5

0

8

Murray 7301074YP

LEVER, Park Brake

$10.99

$

Usually ships in 2-12 days

0

9

Murray 7090913SM

SCREW, Hex Washer Head, Self-Tap, #10-24 x 1/2 (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

10

Murray 7028036YP

SPRING, Friction Pack

$6.99

$

Usually ships in 2-12 days

0

11

Murray 7091299SM

NUT, Hex Nyloc, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

12

Murray 7103792YP

CABLE, Park Brake, RZT

$33.99

$

In Stock, only 3 left!

0

13

Murray 7301086BMYP

BRACKET, Cable, Park Brake

$7.49

$

Usually ships in 2-12 days

0

14

Murray 7090072SM

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

15

Murray 7103436YP

ROD, Park Brake, RZT

$48.99

$

In Stock, only 1 left!

0

16

Murray 2159106SM

SPRING, Extension, 4-1/4"
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0

17

Murray 7090122YP

WASHER, Flat, 3/8 (SAE)
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

18

Murray 7091594SM

COTTER PIN, 1/2

$2.99

$

In Stock, only 1 left!

0

19

Murray 1925003SM

SCREW, Hex Washer Head, Self-Tap, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

20

Murray 7301092AYP

TAB, Spring, Park Brake

$6.49

$

Usually ships in 2-12 days

0

21

Murray 7012080SM

CABLE TIE, 7.0
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0
