RZT 26520 (2691079-01) - Murray 52" Zero-Turn Mower, 26hp (2012) Transaxle Group, RZT (7502214dev) Parts Diagram

52" Zero-Turn Mower, 26hp

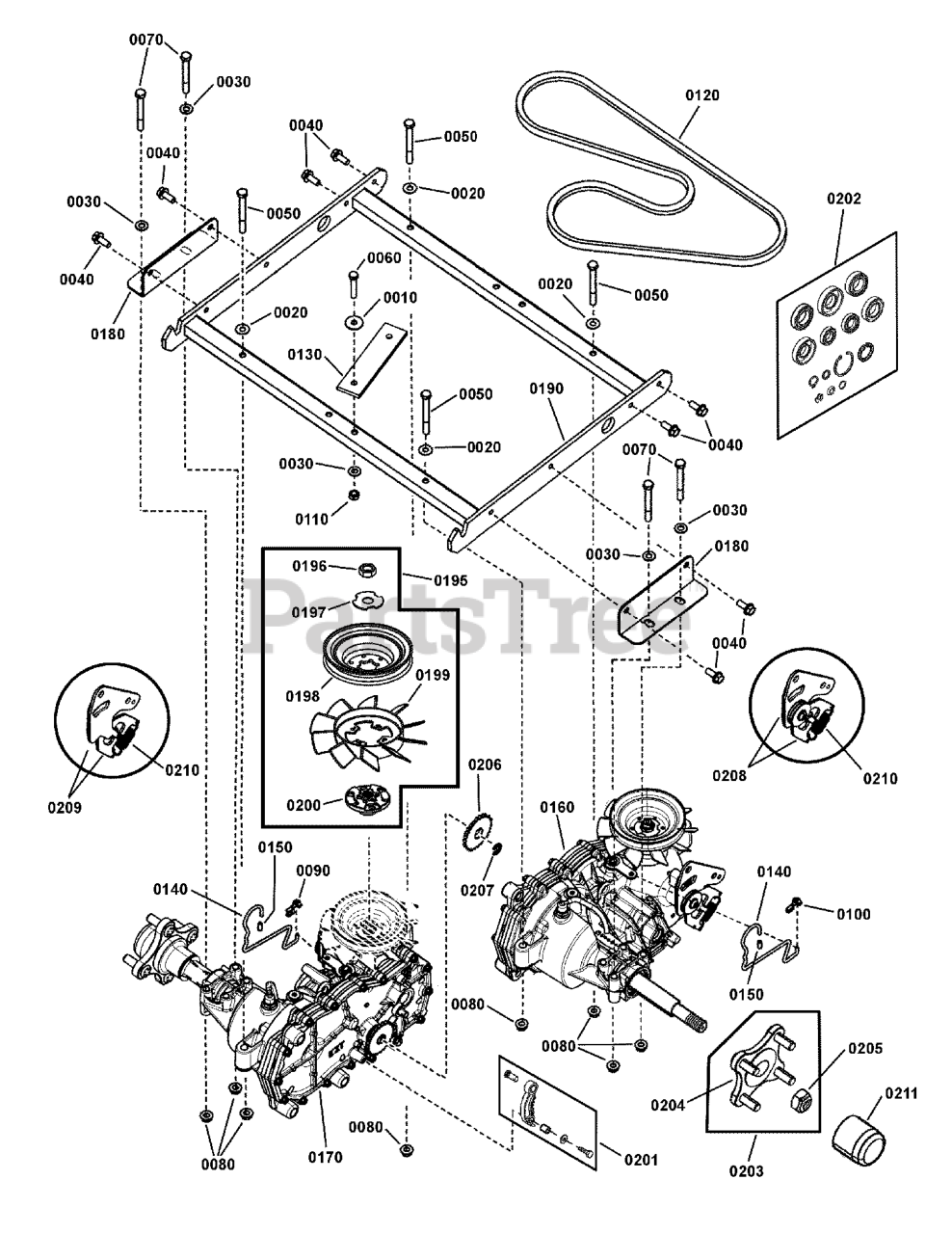

Transaxle Group, RZT (7502214dev) Parts Diagram

  • Title

0010

Murray 7011763SM

FENDER WASHER, 5/16"

$4.49

$

In Stock, Qty 6

0

0020

Murray 7015686SM

SHIM WASHER, 5/16 I.D.

$3.99

$

Usually ships in 2-12 days

0

0030

Murray 7090188SM

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

0040

Murray 7091541SM

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap, YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 7091830SM

SCREW, 5/16-18 x 3" Hex Head Cap, GR 5, YZ
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

0060

Murray 7091908YP

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5 YZ
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0070

Murray 7091944SM

SCREW, 5/16-18 x 2-3/4" Hex Head Cap, GR 5 YZ
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

0080

Murray 015X88MA

NUT, 5/16-18 Hex Flange Center Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0090

Murray 1717024SM

CLIP, Rod End Clevis RH for .188 Dia. Rod

$7.49

$

In Stock, only 2 left!

0

0100

Murray 1725550SM

CLIP, Rod End Clevis LH for .188 Dia. Rod

$5.99

$

In Stock, only 1 left!

0

0110

Murray 7091575SM

NUT, 5/16-18 Hex Center Lock, YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

0120

Murray 7100102SM

V-BELT, Hydro Drive

Note: (HA Wrapped Section; 58" Effective Length)

$43.99

$

In Stock, only 3 left!

0

0130

Murray 7104674YP

RUBBER, Anti-Rotation

$15.99

$

Usually ships in 2-12 days

0

0140

Murray 7103512YP

ROD, Roll Release

$19.99

$

In Stock, only 1 left!

0

0150

Murray 7103537YP

CAP, Vinyl

$3.49

$

Usually ships in 2-12 days

0

0160

* TRANSAXLE, EZT, Hydro-Gear, LH (ZC-AUBB-2ADB-1DPX)

$

$

Not available

0170

* TRANSAXLE, EZT, Hydro-Gear, RH (ZC-DUBB-2ADC-1DPX)

$

$

Not available

0180

Murray 7300000BMYP

BRACKET, Transaxle Support

$12.99

$

Usually ships in 2-12 days

0

0190

Murray 7400288BMYP

WELDMENT, Transaxle Support

$210.99

$

Usually ships in 2-12 days

0

0195

Murray 7600157YP

KIT, Fan & Pulley, EZT

Note: (Incl Ref. 0196 through 0200)

$120.99

$

Usually ships in 2-12 days

0

0196

NUT, 1/2-20 Hex Jam

Note: (Included in Ref. No. 0195)

$

$

Not available

0197

WASHER, Slotted

Note: (Included in Ref. No. 0195)

$

$

Not available

0198

PULLEY, 4-1/2" Transmission

Note: (Included in Ref. No. 0195)

$

$

Not available

0199

FAN, 6" Tramsmission

Note: (Included in Ref. No. 0195)

$

$

Not available

0200

HUB, Pulley, 1.56

Note: (Included in Ref. No. 0195)

$

$

Not available

0201

Murray 1728075SM

ASSEMBLY, Parking Brake Arm, Transmission

$50.99

$

In Stock, only 1 left!

0

0202

Murray 1728060SM

KIT, Hydro Seal

$140.99

$

Usually ships in 2-12 days

0

0203

Murray 7600158YP

KIT, Hub Replacement

Note: (Incl. Ref. 0204 & 0205)

$122.99

$

Usually ships in 2-12 days

0

0204

HUB, EZT Transmission

Note: (Included in Ref. No. 203)

$

$

Not available

0205

NUT, EZT Transmission

Note: (Included in Ref. No. 203)

$

$

Not available

0206

Murray 1728076SM

GEAR, Parking Brake, Transmission

$37.99

$

Usually ships in 2-12 days

0

0207

Murray 1716622SM

CLIP, E Transmission Parking Break

$4.49

$

Usually ships in 2-12 days

0

0208

Murray 1735490SM

ARM, Control Kit, LH

$108.99

$

Usually ships in 2-12 days

0

0209

Murray 1735491SM

ARM, Control Kit, RH

$92.99

$

Usually ships in 2-12 days

0

0210

Murray 1735482SM

SPRING, Extension

$

$

Not available

0211

* CAP, Axle Hydro Gear

$

$

Not available
