RZT-34 (17AQNAMU029) - Yard Machines 34" Zero-Turn Mower (2018) Belt Keeper Parts Diagram

34" Zero-Turn Mower

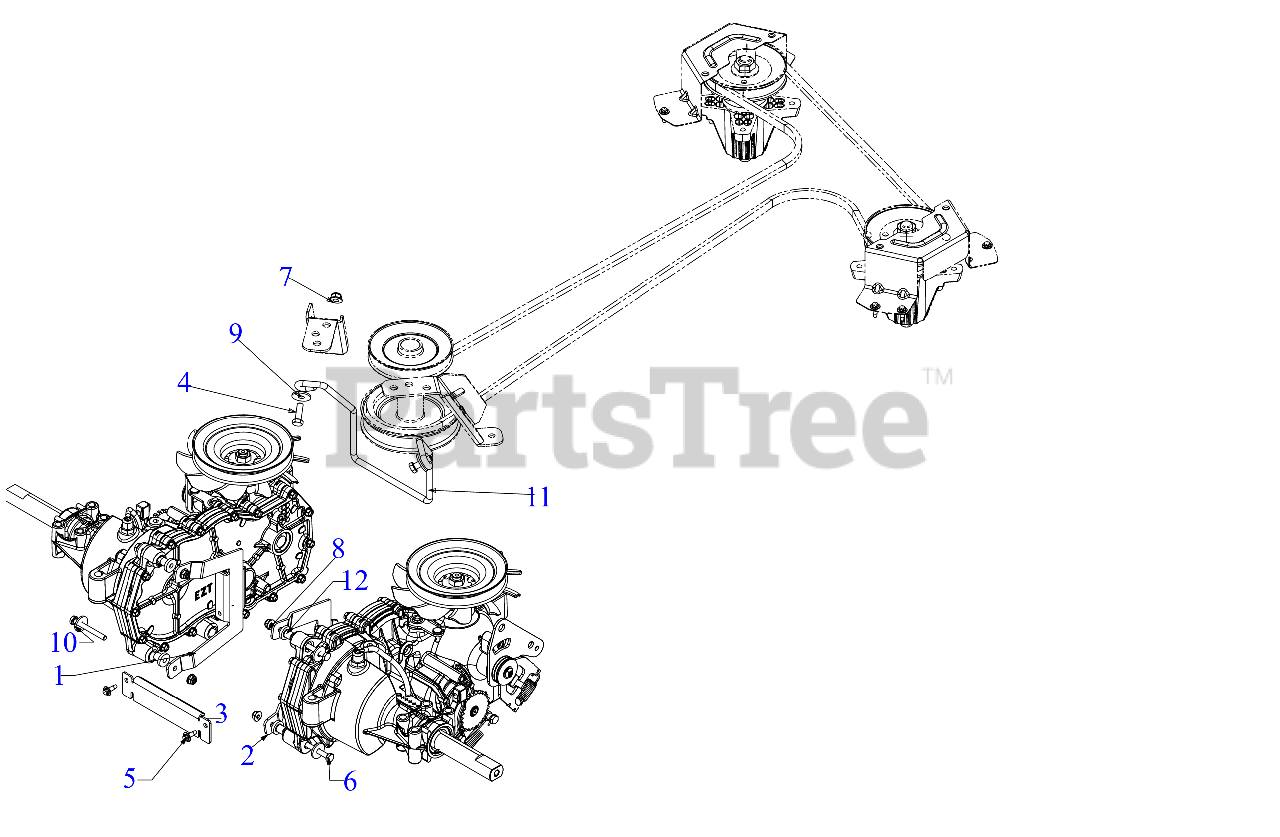

Belt Keeper Parts Diagram

  • Title

1

MTD 703-11398

BELT KEEPER BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-11398-0637

BRKT-BELT KEEPR LH - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

2

MTD 703-11399

BELT KEEPER BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-11399-0637

BRKT-BELT KEEPR RH - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

3

MTD 703-11400

BELT KEEPER BRACKET (CENTER)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-11400-0637

BRKT-BELT KEEPR CN - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

4

MTD 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 17

0

5

MTD 710-06133

SCREW M6-1 x .625

$3.49

$

In Stock, Qty 20+

0

6

MTD 710-0641

SCREW 1/4-20 x 2.25 GR5

$3.99

$

In Stock, only 4 left!

0

7

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

9

MTD 736-04117

FLAT WASHER 1.0 OD:.331 ID

$3.49

$

In Stock, Qty 20+

0

10

MTD 736-0512

FLAT WASHER

$3.99

$

Usually ships in 3-6 days

0

11

MTD 747-06869A

BELT KEEPER ROD

$24.99

$

Usually ships in 3-6 days

0

12

MTD 750-04762

STEP SPACER

$3.99

$

Usually ships in 3-6 days

0
