RZT-42 (17AA554G755) - Yard-Man 42" Zero-Turn Mower (2006) (Walmart) Control Handle Parts Diagram

42" Zero-Turn Mower

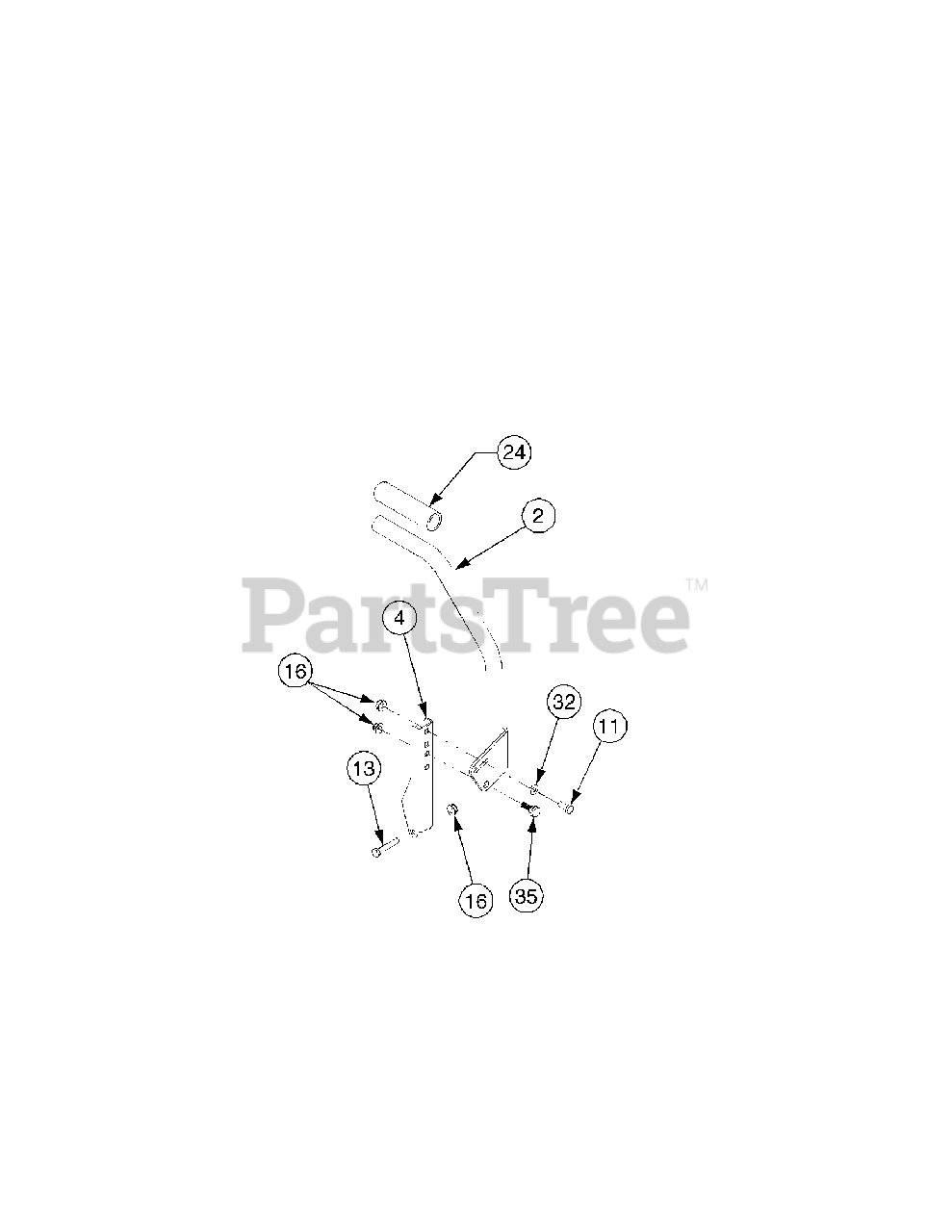

Control Handle Parts Diagram

  • Title

2

MTD 603-04322

Lever, Lapbar, RH

Variations

MTD 603-04322-0637

Right Lapbar Handle - POWDER BLACK (0637)

$

$

Not available

MTD 603-04322-0662

HANDLE-RH LAPBAR - OYSTER GRAY (0662)

$

$

Not available

MTD 603-04322-4021

HANDLE-RH LAPBAR - CUB YELLOW 2 (4021)

$

$

Not available

MTD 603-04322-0638

HANDLE-RH LAPBAR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 603-04322-0709

HANDLE-RH LAPBAR - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 603-04322-4038

HANDLE-RH LAPBAR - DAY ORANGE (4038)

$

$

Not available

$

$

2

MTD 603-04324

Lever, Lapbar, LH

Variations

MTD 603-04324-0637

Left Lapbar Handle - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

MTD 603-04324-0638

HANDLE-LH LAPBAR - MTD/TROY-BILT RED (0638)

$80.99

$

Usually ships in 3-6 days

0

MTD 603-04324-0662

HANDLE-LH LAPBAR - OYSTER GRAY (0662)

$

$

Not available

MTD 603-04324-4021

HANDLE-LH LAPBAR - CUB YELLOW 2 (4021)

$

$

Not available

MTD 603-04324-0709

HANDLE-LH LAPBAR - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 603-04324-4038

HANDLE-LH LAPBAR - DAY ORANGE (4038)

$

$

Not available

$69.99

$

Usually ships in 3-6 days

0

4

MTD 703-05387A

Bracket, Lapbar Pivot
(Superseded to 703-05387B)

$29.99

$

In Stock, only 2 left!

0

11

MTD 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$5.99

$

In Stock, Qty 20+

0

16

MTD 712-04063

Nut, Hx Flange Insert Lck, 5/16-18 GrF

$4.49

$

In Stock, Qty 20+

0

24

MTD 720-0274

Grip, Hand

$12.99

$

In Stock, only 1 left!

0

32

MTD 736-0275

Washer, Flat, .344 x .688 x .065

$7.49

$

Usually ships in 3-6 days

0

35

MTD 738-0296

Screw, Shoulder, .437 x .268:5/16-18

$4.49

$

In Stock, Qty 20+

0
