RZT-42 (17AA5AAG700) - Yard-Man 42" Zero-Turn Mower (2008) Front Axle Parts Diagram

42" Zero-Turn Mower

Front Axle Parts Diagram

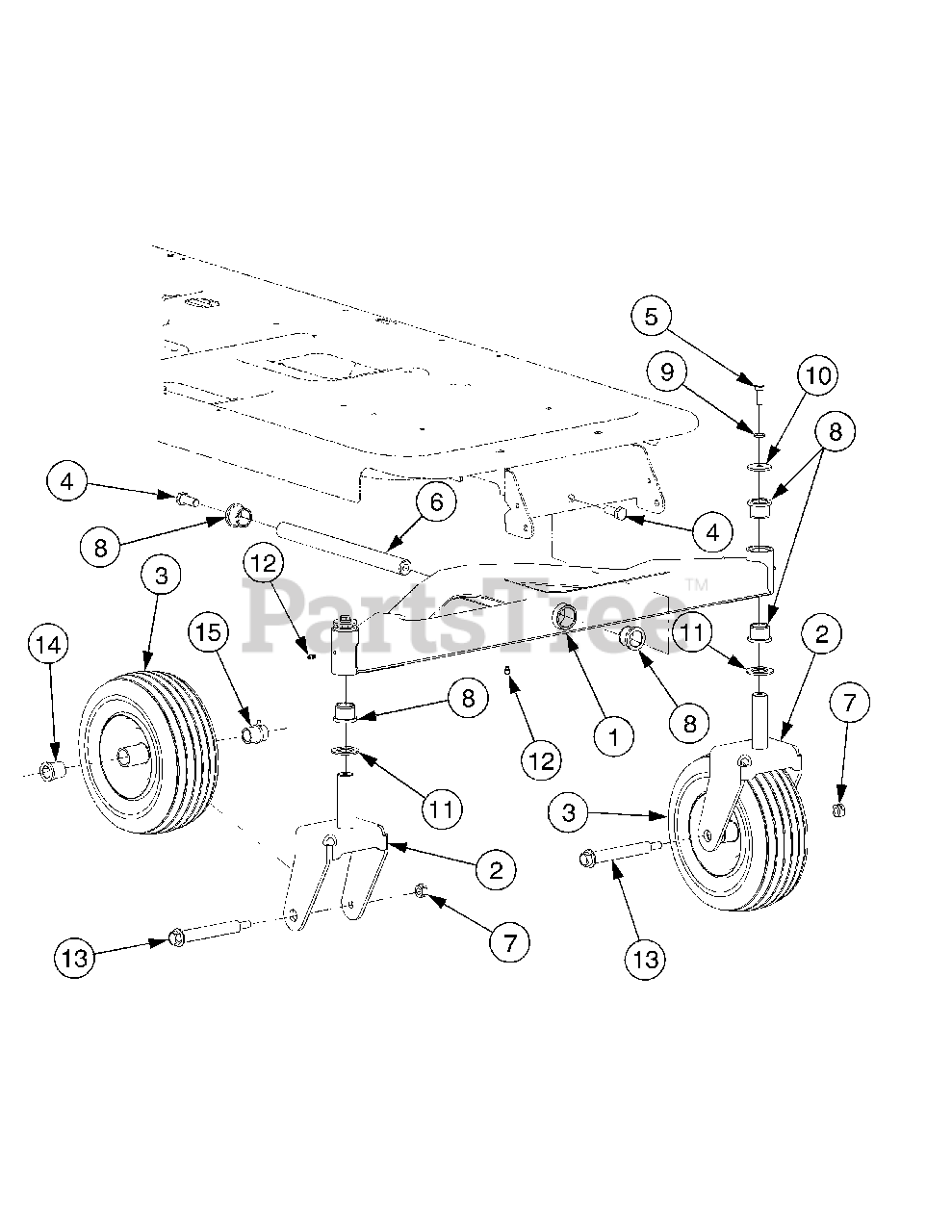

  • Title

1

MTD 603-04148A

Axle, Front Pivot
(Superseded to 603-04148C)

Variations

603-04148A-0638

MTD 603-04148A-0638

AXLE-FRONT PIVOT - MTD/TROY-BILT RED (0638)

$425.99

$

Usually ships in 3-6 days

0

603-04148A-0716

MTD 603-04148A-0716

AXLE-FRONT PIVOT - CUB YELLOW-99 (0716)

$425.99

$

In Stock, only 1 left!

0

603-04148A-0606

MTD 603-04148A-0606

AXLE-FRONT PIVOT - MAJESTIC ORANGE (0606)

$

$

Not available

603-04148A-0650

MTD 603-04148A-0650

AXLE-FRONT PIVOT - RED METALLIC (0650)

$

$

Not available

603-04148A-0665

MTD 603-04148A-0665

AXLE-FRONT PIVOT - YARDMAN GREEN (0665)

$

$

Not available

603-04148A-0674

MTD 603-04148A-0674

AXLE-FRONT PIVOT - YARDMAN YELLOW (0674)

$

$

Not available

$425.99

$

Usually ships in 3-6 days

0

2

MTD 603-04308

Bracket, Castor Wheel
(Superseded to 603-04308A)

Variations

603-04308-0606

MTD 603-04308-0606

Caster Yoke Assembly, Orange - MAJESTIC ORANGE (0606)

$104.99

$

In Stock, only 1 left!

0

603-04308-0637

MTD 603-04308-0637

Caster Yoke Assembly - POWDER BLACK (0637)

$104.99

$

In Stock, only 1 left!

0

603-04308-0638

MTD 603-04308-0638

Caster Yoke Assembly, Red - MTD/TROY-BILT RED (0638)

$104.99

$

In Stock, only 1 left!

0

603-04308-0650

MTD 603-04308-0650

Caster Yoke Assembly, Red - RED METALLIC (0650)

$104.99

$

In Stock, only 1 left!

0

603-04308-0665

MTD 603-04308-0665

Caster Yoke Assembly - YARDMAN GREEN (0665)

$104.99

$

In Stock, only 1 left!

0

603-04308-0674

MTD 603-04308-0674

Caster Yoke Assembly, Yellow - YARDMAN YELLOW (0674)

$104.99

$

In Stock, only 1 left!

0

603-04308-0691

MTD 603-04308-0691

Caster Yoke Assembly - BLACK JACK (0691)

$104.99

$

In Stock, only 1 left!

0

603-04308-0716

MTD 603-04308-0716

Caster Yoke Assembly, Yellow - CUB YELLOW-99 (0716)

$104.99

$

In Stock, only 2 left!

0

603-04308-4015

MTD 603-04308-4015

Caster Yoke Assembly - FIRE RED (4015)

$104.99

$

In Stock, only 1 left!

0

603-04308-4021

MTD 603-04308-4021

Caster Yoke Assembly, Yellow - CUB YELLOW 2 (4021)

$104.99

$

In Stock, only 2 left!

0

603-04308-4038

MTD 603-04308-4038

Caster Yoke Assembly - DAY ORANGE (4038)

$104.99

$

In Stock, only 1 left!

0

603-04308-4044

MTD 603-04308-4044

YOKE ASM-CASTER - CRAFTSMAN RED (4044)

$104.99

$

In Stock, only 1 left!

0

$84.99

$

Usually ships in 3-6 days

0

3

MTD 634-04237

Wheel Assembly, 11.0 x 4.0 x 5.0
(Superseded to 634-04237C)

$172.99

$

In Stock, only 4 left!

0

4

MTD 710-04186

Screw, Hex Lock, 1/2-13 x 1.25 GR5

$7.49

$

In Stock, Qty 9

0

5

MTD 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

6

MTD 711-04228

Shaft, Axle
(Superseded to 911-04228)

$81.99

$

Usually ships in 3-6 days

0

7

MTD 712-3022

Nut, Hex Lock, 1/2-13 GRB

$4.49

$

In Stock, Qty 20+

0

8

MTD 731-05500

Bearing, Flange, 1.0 x 1.246

$11.99

$

In Stock, Qty 20+

0

9

MTD 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

10

MTD 736-0227

Washer, Flat, .39 x 1.5 x .134

$6.99

$

In Stock, Qty 9

0

11

MTD 736-0250

Washer, Flat, 1.0 x 1.75 x .107

$4.99

$

In Stock, Qty 20+

0

12

MTD 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

13

MTD 738-04182

Screw, Shoulder, .75 x 4.75:7/16-14
(Superseded to 738-04182B)

$27.99

$

In Stock, Qty 8

0

14

MTD 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

$6.49

$

In Stock, Qty 20+

0

15

MTD 741-0990B

Bearing, Flange, .76 ID w/Lube Ftg.

$10.99

$

In Stock, Qty 20+

0
